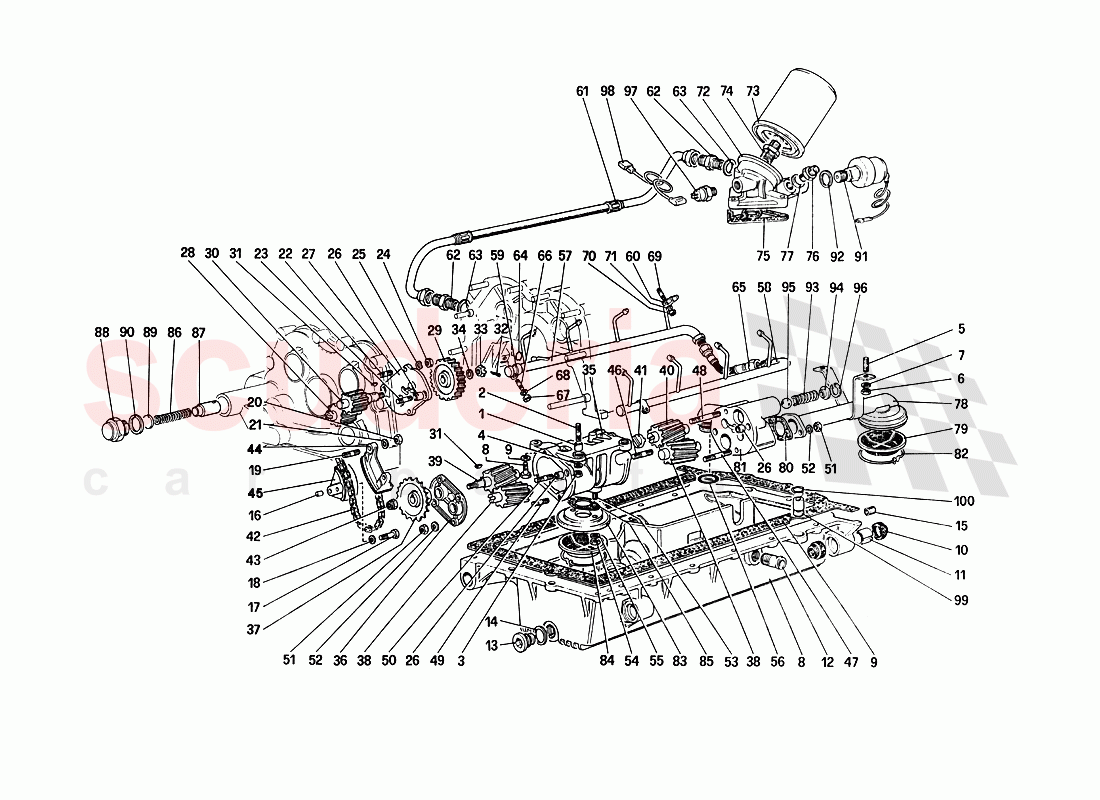

Ferrari Yedek Parça - 288 GTO - Lubrication - Filter and Oil Pumps
Parça Kodları
No
Kod
Parça Adı
1
121906
Dowel
2
13543624
STUD BOLT
6
14040711
NUT
4
12601374
Washer
5
13516421
Stud
7
127496
Washer
8
123928
Oil sump
8
124697
Oil sump complete
9
144254
Gasket
10
121929
Ring
11
124467
Bush
12
104658
Fitting
13
104280
Oil drain Plug
14
10263460
Gasket
15
122976
Hell -coil
16
125716
CENTERING DOWEL
17
10902424
Screw
55
11197774
Washer
19
11500224
STUD BOLT
54
14039614
NUT
22
13540824
STUD BOLT
23
13541124
STUD BOLT
26
102725
CENTRING DOWEL
27
124111
Cover for oil pump
28
124113
Driven gear
29
117659
Control gear
30
124112
Driving gear
31
10205620
Key
32
10734301
SPLIT PIN
33
102900
Nut
34
11198570
Washer
35
122051
Scavenge pump body complete
36
109301
Front cover for pump
37
109318
External gear
38
116056
Driven gear
39
116057
Front driving gear
40
116058
Rear driving gear
41
109309
JOINT
42
109326
Chain
43
104011
CONNECTING ROD TIGHTENING NUT
44
109350
Right tension pad
45
136196
Right tension pad
46
11501424
STUD
47
11501821
Stud
49
11500324
STUD BOLT
50
11500524
STUD BOLT
66
11500024
Stud for cover of flywheel
56
104213
Scaling ring
57
123174
Oil delivery pipe right
58
123175
Oil delivery pipe lett
59
123171
Clamp
60
123170
Clamp
61
138789
Pipe from filter base to crankcase
62
120780
Fitting
63
10261460
Gasket
64
123622
GASKET
65
123192
Pipe
67
13679811
Washer
68
10519424
WASHER
69
13539024
Stud Bolt
70
13677911
NUT
71
14496324
WASHER
72
123202
Filter base
74
100327
Fitting
75
151105
Gasket
76
109889
UNION
77
10280060
Gasket
78
121947
Suction pipe rear
79
100332
OIL FILTER
80
144251
Gasket
81
121953
Rear cover pump
82
103944
Sealing ring
83
122428
Suction pipe front
84
122429
Oil Filter
85
147701
Gasket
86
106900
Spring
87
125885
Piston -Valid from engine
88
106237
Plug
89
106238
Spacer
90
144487
GASKET
91
122592
Sender
92
10259960
GASKET
93
121981
Spring
94
121972
Washer
95
121306
BALL
96
11058076
Seeger Ring
97
110664
Switch for oil pressure warning light
98
112388
Cable
99
103838
Dowel
100
103839
Ring
