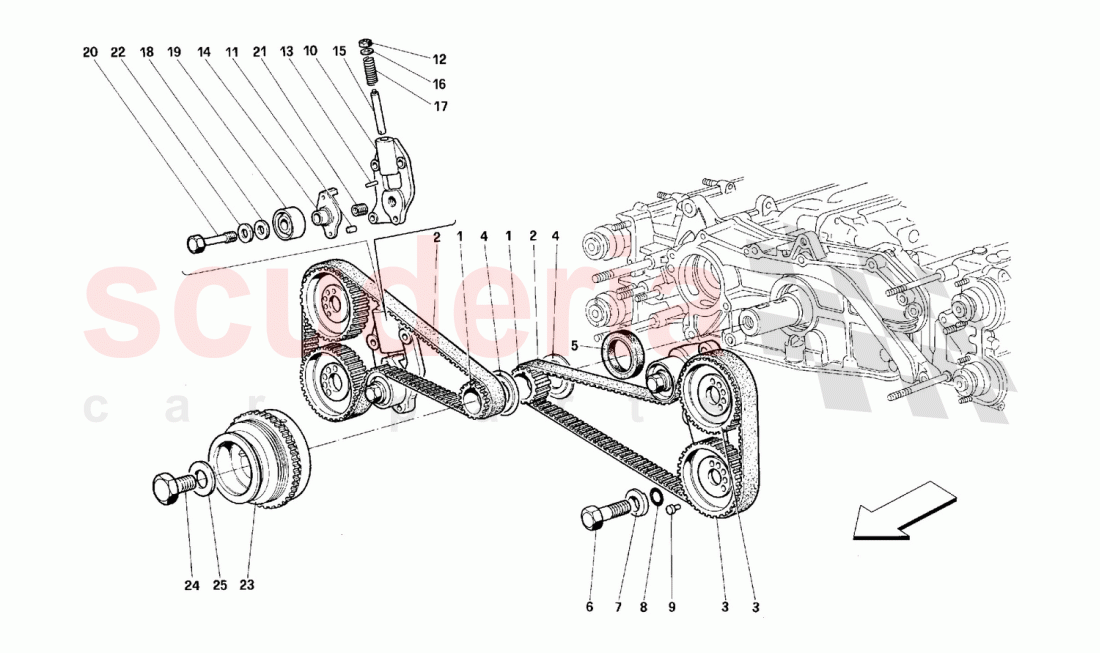

Ferrari Yedek Parça - 288 GTO - Timing System - Controls
Parça Kodları
No
Kod
Parça Adı
1
121957
Right cover
2
122174
Left cover, complete
3
114818
SCREW
4
15972021
Screw
5
121660
Screw
6
109013
Screw
7
12638601
WASHER
8
127497
Washer
9
60793500
Spring clip
10
117628
Protection right belt
11
117627
Protection left belt
12
10977724
SCREW
13
12601174
Washer
14
15688502
Screw
15
111334
Timing belt
16
113097
Driver gear
17
113098
Driver gear
18
117256
Belt stretcher plate
19
111458
Screw
20
111460
SHIM
21
102819
Pin
22
13524670
THREADED INSERT
23
105206
Belt idler ring
24
102824
WASHER
25
104148
Spring
26
125717
CENTRING DOWEL
27
118153
Support for left belt stretcher
27
118152
Support for right belt stretcher
28
146540
SCREW
29
117274
WASHER
30
106203
CENTERING DOWEL
31
114808
O-Ring
32
121955
Drive gear for distribution shafts
33
121273
Driving pulley
34
121275
Bearing of crankcase
35
121274
Bearing on front cover
36
121276
GASKET
37
104919
RING NUT
38
121279
Washer
39
121277
Seeger Ring
40
10206320
DISC TAB
41
124643
Bracket
42
13516624
STUD BOLT
43
104030
Nut
44
12638524
WASHER
45
123925
Spacer
46
128944
WASHER
