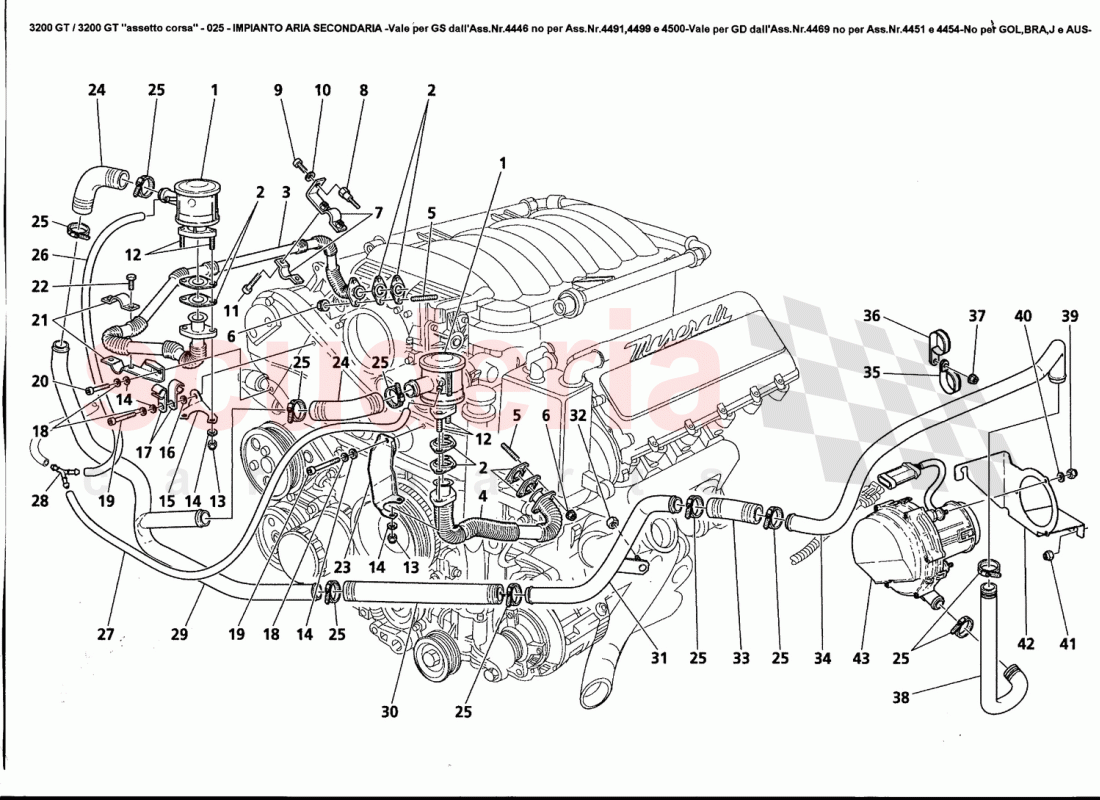

Maserati Yedek Parça - 3200 - SECONDARY AIR SYSTEM - Valid for GS from Ass.4446 not for Ass.Nr.4491, 4499 and 45…

Parça Kodları

No

Kod

Parça Adı

1

171175

Secondary Air Valve

2

172303

GASKET

3

585002800

R.H. TUBE FROM HEAD TO AIR VALVE

4

585001200

L.H. TUBE FROM HEAD TO AIR VALVE

5

11500224

STUD

6

14058429

NUT

7

585006400

L.H. BRACKET

7

585005900

R.H. BRACKET

7

585005700

R.H. BRACKET

8

190876

STUD

9

14305021

SCREW

40

11197774

Washer

11

14304621

SCREW

12

11500324

STUD

39

14039614

NUT

14

10519424

WASHER

15

585004500

BRACKET

16

102210

WASHER

17

187713

RETAINING CLIP

19

14304824

SCREW

20

14305821

SCREW

21

585005800

BRACKET

22

10977624

SCREW

23

585003900

BRACKET

24

585001000

90° SLEEVE

25

13000490

SCREW COLLAR

27

300100803

RUBBER HOSE

28

585413000

Y CONNECTION

29

585004700

TUBE FROM AIR VALVE TO AIR PUMP

30

585001100

SLEEVE

31

389201474

RIGID PIPE

32

13831811

NUT

33

389200473

SLEEVE

34

389201472

RIGID PIPE

35

10441290

BRACKET WITH SHEATH

36

10441790

BRACKET WITH SHEATH

37

14059214

Nut

38

389200471

SLEEVE

41

14098710

NUT

42

383700141

BRACKET

43

181197

SECONDARY AIR PUMP
