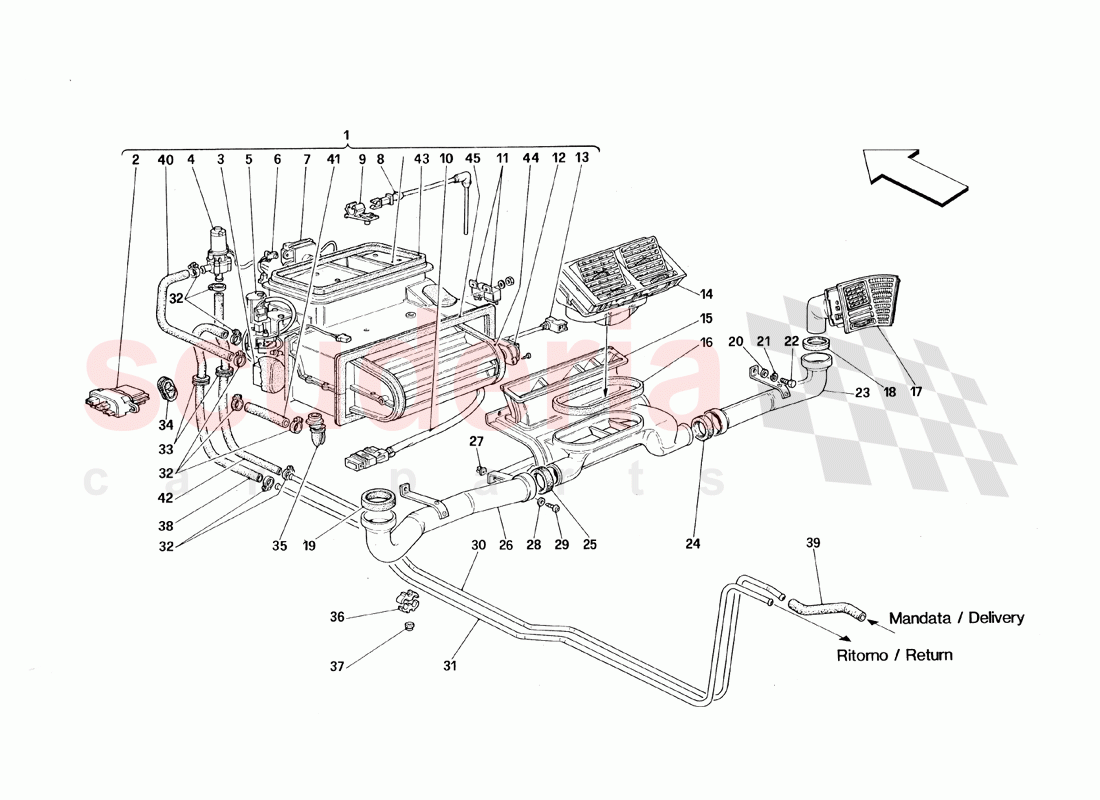

No

Kod

Parça Adı

-

64536900

DELIVERY RUBBER PIPE

-

62851000

RETURN RUBBER PIPE

-

62189700

L.H. AIR DELIVERY TUBE

-

10902224

SCREW

-

62189600

R.H. AIR DELIVERY TUBE

-

62189500

AIR DIFFUSER

-

64320200

L.H Air Outlet

-

63000500

COMPLETE EVAPORATOR SET

1

65353400

COMPLETE EVAPORATOR SET

2

63307200

POWER UNIT

3

154276

EXPANSION VALVE

4

70000900

COMPLETE WATER PUMP KIT

5

63306400

COCK WITH BRACKET

6

63306900

AIR INTAKE SENSOR

7

63306700

LID ACTUATOR

8

62341000

EVAPORATOR TEMPERATURE SENSOR

9

63306600

SENSOR RETAINING CLIP

10

138335

AIR CONDITIONING CABLES ASSEMBLY

11

63306800

MICRORELAY

12

63307100

TIMING ACTUATOR

13

63307000

TREATED AIR SENSOR

14

64320000

CENTRAL OPENING

15

62186000

AIR DIFFUSER

16

62188100

GASKET

17

62620700

R.H. LATERAL AIR OUTLET

18

62188200

RH PIPE/DIFFUSOR GASKET

19

62188300

LH PIPE/DIFFUSOR GASKET

20

12644424

Washer

21

127494

Washer

22

10977524

SCREW

23

62186100

R.H. AIR DELIVERY TUBE

24

62679200

RH TUBE /AIR DIFFUSER GASKET

25

62679000

LH TUBE/AIR DIFFUSOR GASKET

26

62186200

L.H. AIR DELIVERY TUBE

27

14201980

Block

28

12638124

Washer

29

15688170

SCREW

30

62659200

DELIVERY PIPE UNDER THE FLOOR

31

62659500

RETURN PIPE UNDER THE FLOOR

32

13432070

Collar for Hose Union

33

10398780

CABLE GROMMET

34

60679700

CABLE GROMMET

35

62656000

BELLOWS FOR CONDENSATE VENT

36

62658800

CLIP

37

14039614

NUT

38

62659400

RUBBER PIPE TO COCK

39

62659100

SLEEVE

40

63306300

PIPE FROM PUMP TO EVAPORATOR

41

63311700

PIPE FROM EVAPORATOR TO COCK

42

64536500

DELIVERY RUBBER PIPE

43

62928000

UPPER GASKET

44

62928100

TAMBOUR PROFILE GASKET

45

62928200

TAMBOUR SEAT GASKET
