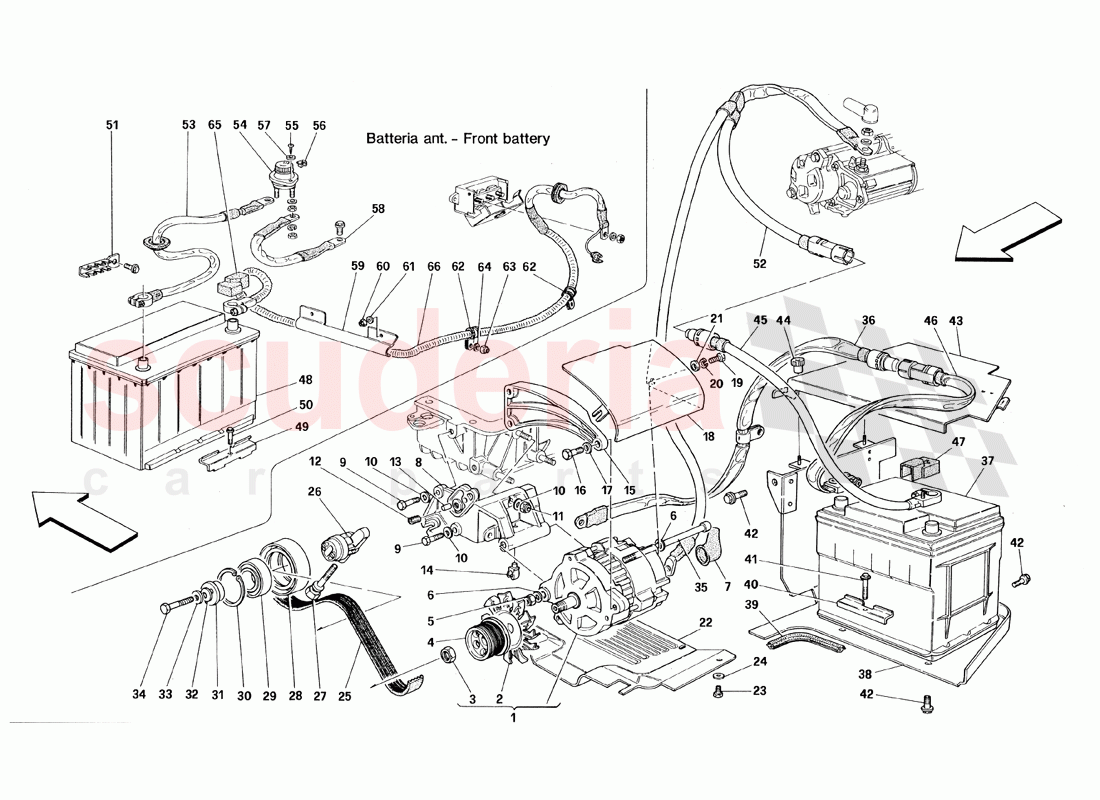

No

Kod

Parça Adı

1

156235

Alternator 140A (Nippon Denso)

1

170192

Generator 105 A

2

143863

BLOWER

3

152687

Nut

4

138525

GENERATOR CONTROL PULLEY

5

102742

Nut

6

128944

WASHER

7

125329

PROTECTION BOOT

8

139295

BELT TIGHTENING AND GENERATOR SUPPORT

9

16043634

SCREW

10

12604474

WASHER

11

16104411

Selflocking nut

12

13526070

Heli-coil securing cover

13

125717

CENTRING DOWEL

14

14574287

Clip

15

144639

UPPER BRACKET

16

16043436

SCREW

20

11193874

Washer

18

145410

SHIELD FOR ALTERNATOR PROTECTION

19

16043324

SCREW

21

14496501

WASHER

22

156330

ALTERNATOR AND BELTS PROTECTION SHEET

23

10977524

SCREW

24

12643724

WASHER

25

199822

GENERATOR CONTROL BELT

26

139359

BELT TIGHTENING HUB

27

139309

ADJUSTMENT SCREW

28

139321

BELT TIGHTENING PULLEY

29

177436

BEARING

30

11061076

SEEGER RING

31

142473

BEARING SPACER

32

11190579

WASHER

33

138194

WASHER

34

15888721

SCREW

35

130431

SCREW

36

134439

PLAIT FROM CONNECTOR TO ENGINE MASS

48

180055

BATTERY

38

62611300

BATTERY PROTECTION

39

62611400

GASKET

49

62573400

BRACKET FOR BATTERY FIXING

50

13836424

SCREW

42

13836271

SCREW

43

62950500

BATTERY COVER

44

62565000

COVER FIXING RING NUT

45

196348

CABLE.

46

134438

PLAIT FROM BATTERY TO CONNECTOR

65

144727

CABLES PROTECTION

51

61682500

MASS CABLE CONNECTING BRACKET

52

198369

CABLE.

53

155067

BATTERY CUT OUT SWITCH CONNECTING PLAIT

54

383000322

Battery disconnecting switch

55

15688275

SCREW

56

61067800

FIXING BRACKET

57

12638178

Washer

58

155068

CUT OUT SWITCH MASS CONNECTING PLAIT

59

63510500

CABLE PROTECTION

63

14039614

NUT

64

10519424

WASHER

62

10441790

BRACKET WITH SHEATH

66

151337

BATTERY TO TERMINAL BOX CONNECTING CABLE
