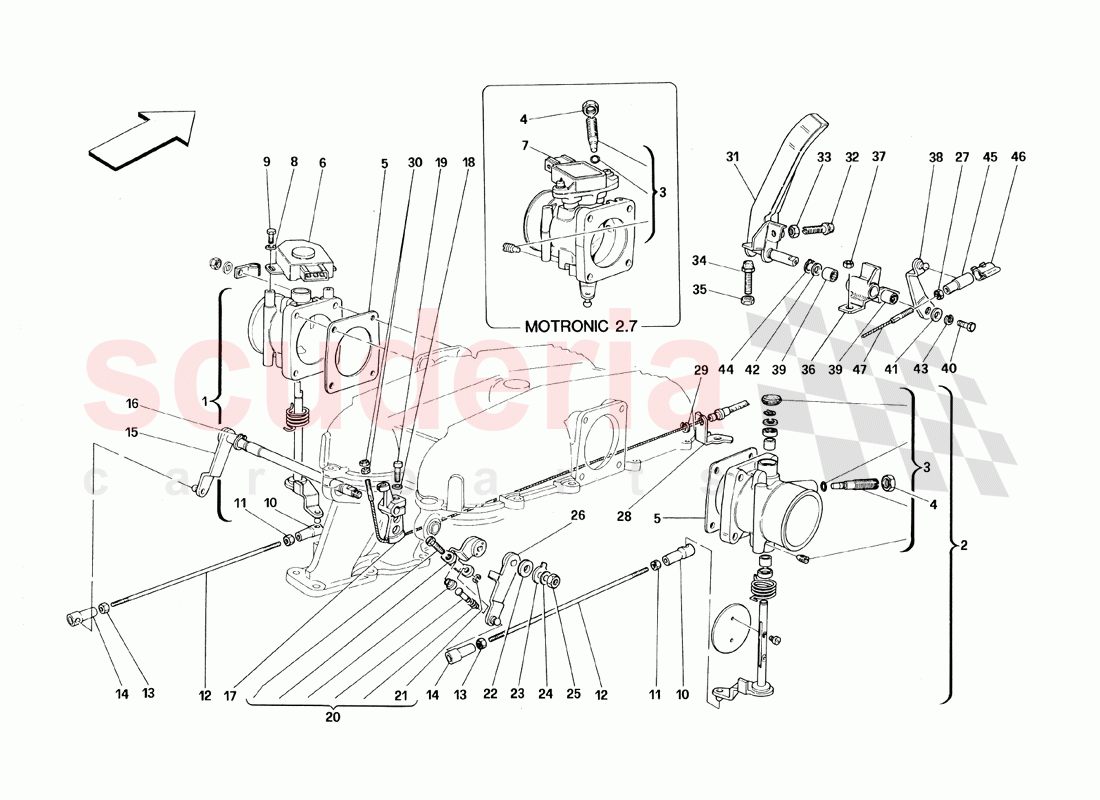

No

Kod

Parça Adı

1

139531

COMPLETE RH THROTTLE HOLDER

1

142498

COMPLETE R.H. THROTTLE HOLDER

2

142499

COMPLETE L.H. THROTTLE HOLDER

2

139532

COMPLETE LH. THROTTLE HOLDER

3

70000610

ADJUSTMENT KIT FOR THROTTLE BODY

4

11691311

NUT

5

136919

GASKET

6

130974

MICRO-SWITCH

7

158170

POTENTIOMETER FOR THROTTLE VALVE

8

11181474

WASHER

9

10444521

SCREW

10

173999

BALL-JOINT HEAD

27

15896470

NUT

12

139551

TIE ROD

13

105586

LEFT NUT

14

105619

Spheric joint (L.H. thread)

15

139925

TRANSMISSION SPINDLE FOR BUTTERFLY CONTROL

16

11065976

SEEGER RING

17

139923

THROTTLE CONTROL ECCENTRIC

18

14499370

Washer

19

231619

SCREW

20

137054

BUTTERFLY SYNCHRONIZATION CONTROL ASSEMBLY

21

11087576

Snap Ring

22

137053

SPACER

23

113566

SAFETY PLATE

24

13550301

WASHER

35

14059311

NUT

26

139929

DRIVEN LEVER

28

138422

BRACKET

29

11087974

SNAP RING

30

10725011

NUT

31

137569

ACCELERATOR PEDAL

32

123961

PEDAL ADJUSTEMENT PIN

34

137012

PEDAL ADJUSTEMENT PIN

36

137009

ACCELERATOR SUPPORT

37

104030

Nut

38

145425

ACCELERATOR CONTROL LEVER

39

101677

ROLLER BEARING

40

10902221

SCREW

41

106744

WASHER

42

108576

SPACER WASHER mm. 1.0

42

105931

SPACER WASHER mm. 0.7

43

127494

Washer

44

11066076

Seeger Ring

45

10123811

BALL JOINT HEAD

46

174001

SPRING CLIP

47

137578

ACCELERATOR CABLE

47

153698

ACCELERATOR CABLE

47

138252

ACCELERATOR CABLE Rhd
