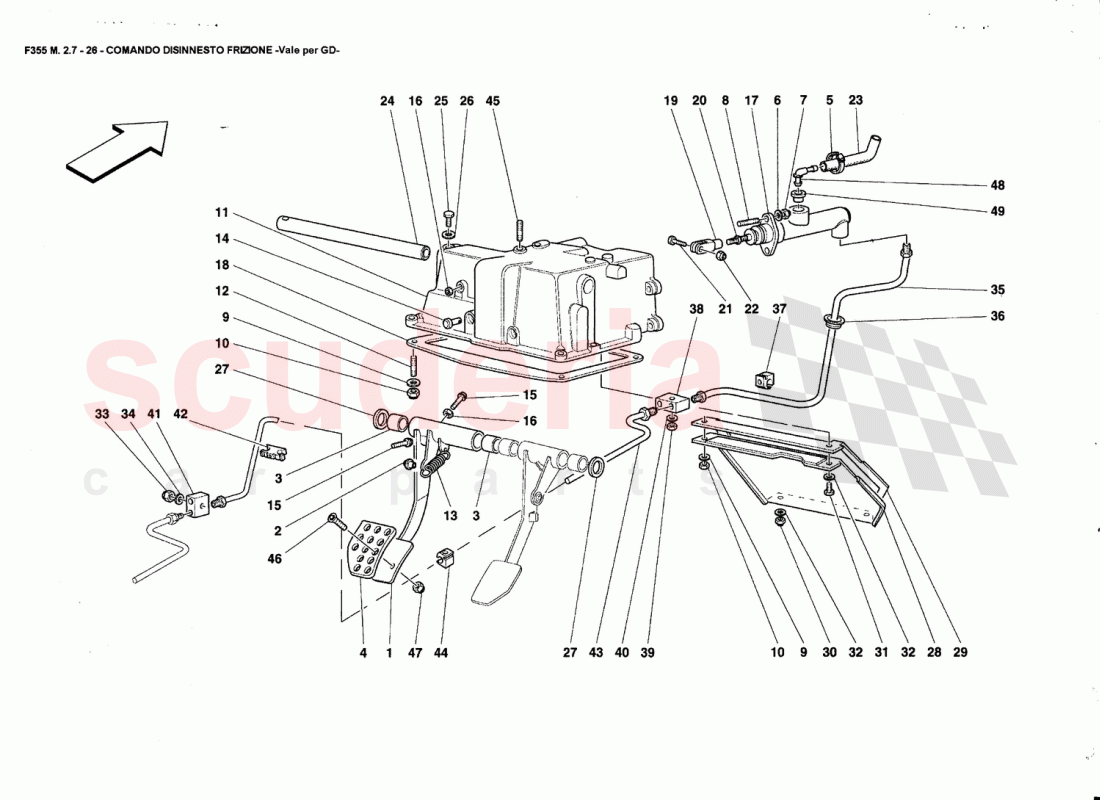

Ferrari Yedek Parça - 355 (2.7 Motronic) Parts - CLUTCH RELEASE CONTROL -Valid far GD-
Parça Kodları
No
Kod
Parça Adı
-
113834
WASHER
-
113835
WASHER
-
113836
WASHER
-
113833
WASHER
11
148261
COMPLETE PEDAL SUPPORT
1
161948
CLUTCH PEDAL
2
109407
BALL-JOINT
3
103163
SELF-LUBRICATING BUSHING
4
162536
CLUTCH PEDAL DRILLED PLATE
5
157934
SCREW COLLAR
6
12601374
Washer
7
14040711
NUT
12
13516824
STUD BOLT
9
14499421
WASHER
10
104030
Nut
13
101305
SPRING
14
129612
SPRING ANCHOR PIN
15
187014
PEDAL ADJUSTER SCREW
20
16102314
NUT
17
175211
Clutch master cylinder
18
129615
GASKET
19
10248271
FORK FOR CLUTCH LEVER
21
16043634
SCREW
22
147985
NUT
23
134903
RUBBER PIPE
24
131319
PEDAL FASTENING PIN
25
10902224
SCREW
26
11197774
Washer
27
106083
WASHER
28
62164600
PEDAL SUPPORT GUARD
29
62697800
GASKET
47
14039614
NUT
31
15925601
SCREW
32
12646604
WASHER
40
12639724
Washer
35
162893
PIPE FROM PUMP TO UNION
36
105369
CABLE GROMMET
44
141521
CLIP
41
139375
2-WAY UNION
42
141522
CLIP
43
145034
CLUTCH CONTROL INTERMEDIATE PIPE
45
11500124
STUD BOLT
46
14441324
SCREW
48
184497
CONNECTOR
49
175189
SEAT RING
