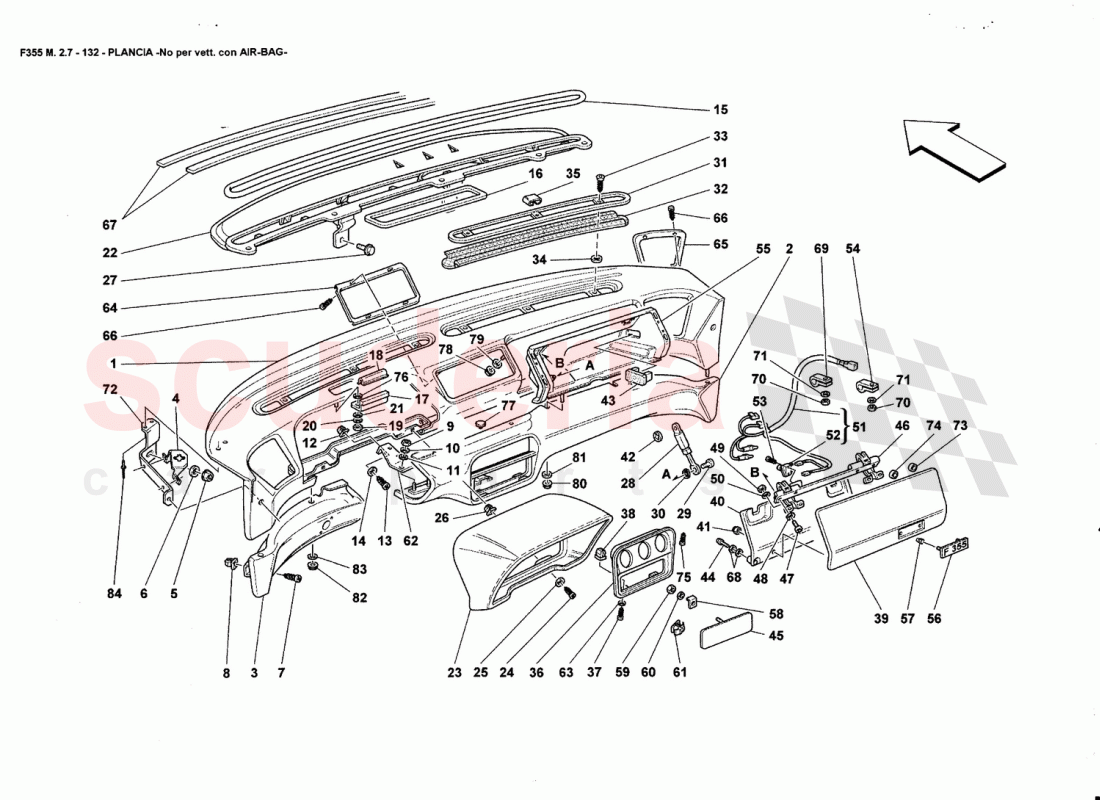

No

Kod

Parça Adı

-

64113800

DASHBOARD RH UPPER LATERAL FIXING BRACKET

-

64510700

AIR OUTLET CENTRAL PLATE

-

64510500

AIR OUTLET LH LATERAL PLATE

-

64444000

BOX INNER INSERT

-

64515500

LID HINGE

-

64444600

DOOR INNER OVERLAP

-

644442

COVERED DOOR

-

641196

LINING

-

170935

PLATE FOR INSTRUMENTS

36

170934

PLATE FOR INSTRUMENTS

-

10977724

SCREW

-

644467

LINING

-

644464

COVERED INSTRUMENTS PANEL

-

644324

DASH PANEL (leather)

-

644451

L.H. LOWER UPHOLSTERY

-

62175700

R.H. TWEETER FIXING BRACKET

-

644448

COVERED L.H. LOWER INSERT

-

641178

L.H. LOWER UPHOLSTERY

-

644456

COVERED R.H. LOWER INSERT

-

100992

R.H. LOWER UPHOLSTERY

-

644459

R.H. LOWER UPHOLSTERY

-

644436

UPHOLSTERED DASHBOARD UPPER FRAMEWORK

-

641183

UPPER LINING

-

644439

UPPER LINING

1

641172

UPHOLSTERED DASHBOARD UPPER FRAMEWORK

2

641173

COVERED R.H. LOWER INSERT

3

641174

COVERED L.H. LOWER INSERT

4

62175800

L.H. TWEETER FIXING BRACKET

5

13832101

NUT

76

12648925

WASHER

7

15785101

SCREW

12

14115980

BLOCK-Valid for USA-

49

15896470

NUT

20

12601174

Washer

71

14496324

WASHER

13

15688375

SELF-TAPPING SCREW

83

12638124

Washer

15

62200500

AIR DUCTING GASKET

16

62188000

AIR CONVEYOR GASKET

17

62139700

INSTRUMENTS PANEL FIXING PLATE

18

62139800

ANTI VIBRATIONS

22

62185800

UNDER DASHBOARD AIR DUCTING

23

641120

COVERED INSTRUMENTS PANEL

24

15687775

SCREW

25

10519278

WASHER

26

14115885

Block

27

13836324

SCREW

28

62830600

Door Gas Spring

29

62162800

PIN

30

11087576

Snap Ring

31

62186800

AIR OUTLET PLATE

32

62880800

AIR OUTLET GRID SHIELD

33

63291400

SCREW -Not for GD-

34

63622400

WASHER

35

62880900

SCREW COVER PLATE

37

15908606

SCREW

38

14115580

BLOCK

39

641194

COVERED DOOR

40

64112900

DOOR INNER OVERLAP

41

62990500

NUT

42

62831000

CLIP

43

139517

LUGGAGE COMPARTMENT LIGHT

44

65361300

PIN

45

64426700

PLATE FOR RADIO HOUSING

46

64114400

LID HINGE

47

13274472

SCREW -M5 X 20- -For carbon fibre surround-

48

12638178

Washer

51

157601

DASHBOARD GLOVE BOX CABLES

52

141013

MICRO SWITCH

53

64693500

SCREW

54

10418101

BRACKET

55

64112300

BOX INNER INSERT

56

64493700

F 355 MARK

57

88074800

Clip

58

62993400

CLIP

59

16101714

NUT

60

10615174

WASHER -Not for GTS-

61

232649

CLIP

62

65371000

DASHBOARD LOWER FIXING

63

12612207

WASHER -Valid for USA-

64

64113600

AIR OUTLET CENTRAL PLATE

65

64113300

AIR OUTLET RH LATERAL PLATE

66

15902670

SCREW -Valid for USA-

67

360500980

BI-ADHESIVE TAPE

68

62692700

RUBBER FOR PIN

69

10420301

Clamp (Ø 4 mm)

70

319201

FUEL FILLER PIPE ASSEMBLY

72

64113900

DASHBOARD LH UPPER LATERAL FIXING BRACKET

73

62989700

SPACER BUSHING

74

62989800

SPACER BUSHING

75

15692178

SCREW

77

14624687

PLUG

82

13831801

NUT

81

12624101

WASHER

84

60609700

RIVET
