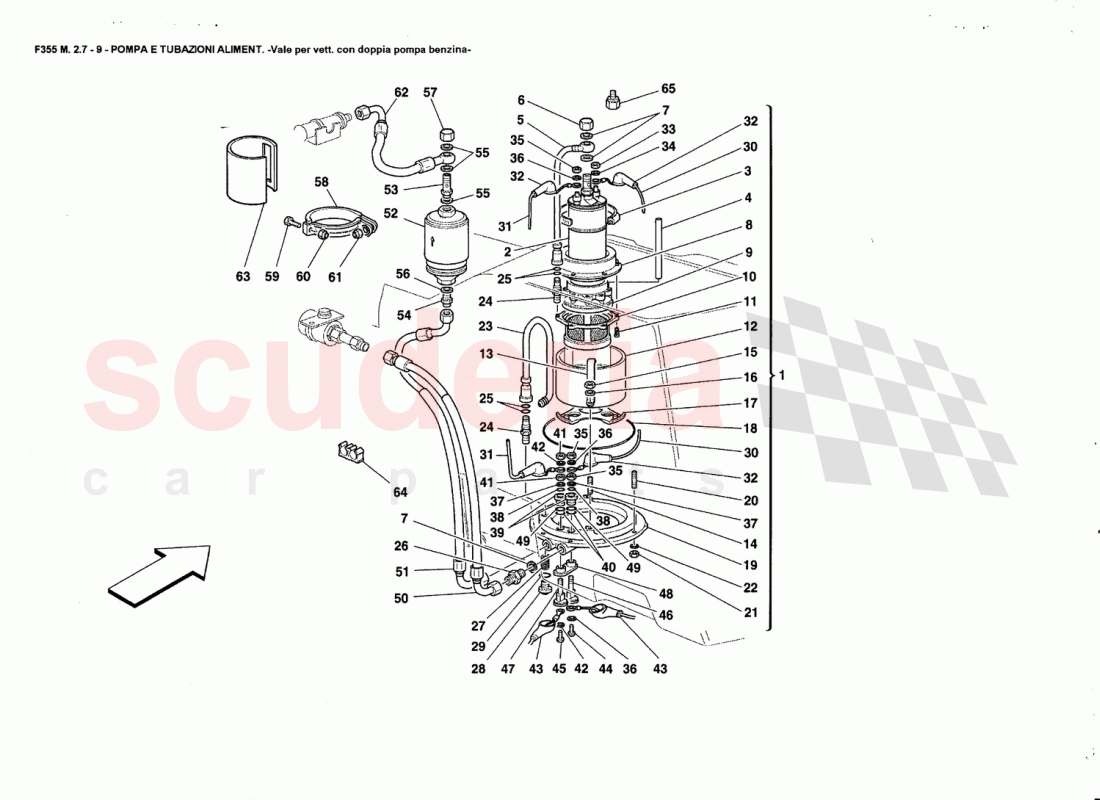

No

Kod

Parça Adı

-

177548

DELIVERY PIPE FROM FILTER TO LH FLUTE

62

177547

DELIVERY PIPE FROM FILTER TO RH FLUTE

-

172438

FUEL PIPE FROM PUMP TO LH FILTER

51

172440

FUEL PIPE FROM PUMP TO RH FILTER

50

172439

FUEL TUBE FROM PRESSURE ADJUSTER TO RH PUMP

-

172437

FUEL TUBE FROM PRESSURE ADJUSTER TO LH PUMP

8

168880

FUEL FILTER COVER

1

160047

COMPLETE FUEL PUMP

2

155592

FUEL PUMP

3

13000790

Screw Collar

4

139205

VENT PIPE

5

133967

FUEL PIPE

57

10183217

PLUG FOR UNION

55

11270160

Washer

9

144232

Pump gasket

10

126808

FILTER INSIDE CHAMBER

11

15671101

SCREW

12

126806

Chamber

13

137577

BRACKET

14

11000924

Stud bolt

15

13677911

NUT

16

10730014

WASHER

17

126807

Anti-Vibrations

18

138453

Or. Gasket

19

139454

FUEL PUMP COVER

20

11500224

STUD BOLT

60

14039614

NUT

22

11197774

Washer

23

133968

FUEL FLOWING BACK PIPE

24

133950

UNION

25

133956

O.R. Gasket

53

109797

UNION

27

103388

THREADED INSERT

28

134713

PLUG

29

134233

O-RING

30

139519

POSITIVE CABLE

31

146660

NEGATIVE CABLE

32

130146

BOOT

33

10794011

NUT

34

10615274

WASHER

35

15896470

NUT

36

149951

WASHER

37

10519424

WASHER

38

134701

O-RING

39

134672

BUSHING

40

134705

GASKET

42

12601374

Washer

43

137612

BOOT

44

10856821

SCREW

45

11635721

SCREW

46

137611

MASS PIN

47

137610

MASS PIN

48

137613

OUTER FLANGE

49

14456880

O.R. GASKET

52

186922

Fuel Filter

54

109889

UNION

56

10280060

Gasket

58

152885

BRACKET WITH SHEATH

59

10902521

SCREW

61

147985

NUT

63

164206

FILTER INSULATION

64

160675

CLIP

65

171752

NUT
