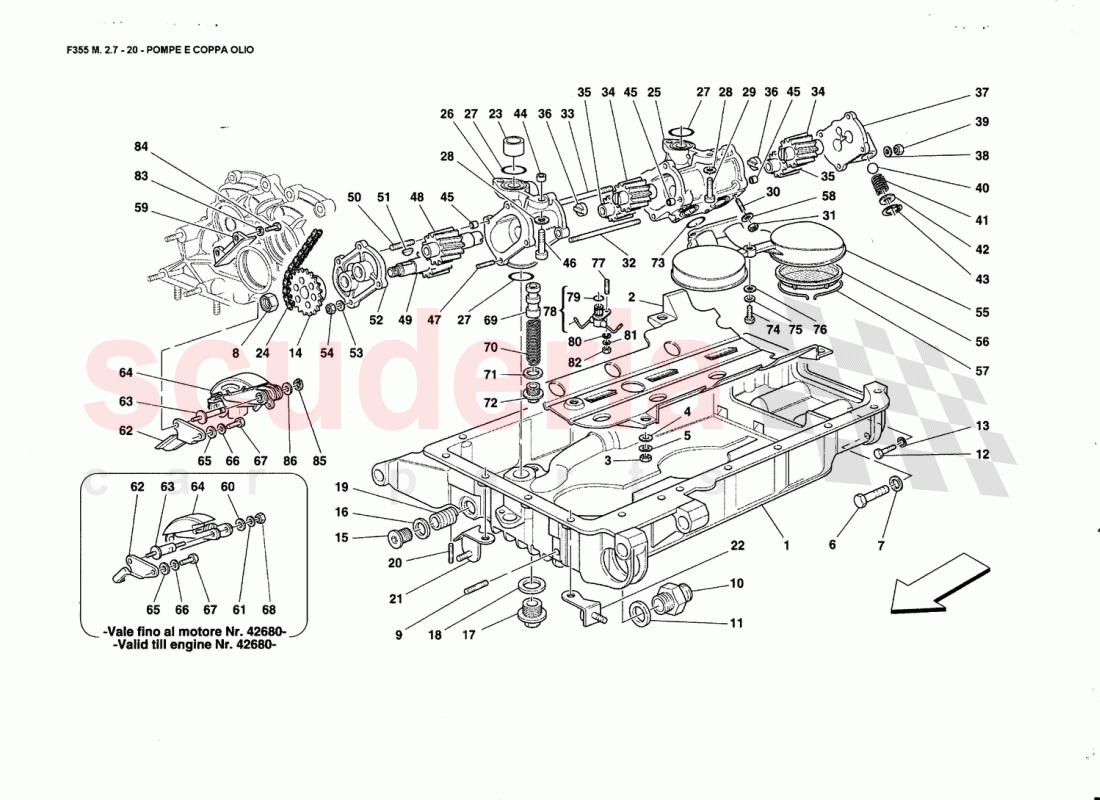

Ferrari Yedek Parça - 355 (2.7 Motronic) Parts - PUMPS ANO OIL SUMP
Parça Kodları
No
Kod
Parça Adı
78
168882
COMPLETE MULTIPLE UNION
64
185577
CHAIN TIGHTENER
-
169594
STUD
-
169595
STOP SMALL PLATE
26
149530
DELIVERY PUMP BODY WITH STUD BOLTS
25
185129
RECOVERY PUMP BODY WITH STUD BOLTS
1
164045
COMPLETE OIL SUMP
2
149318
ANTI-SHAKING OIL PANEL
3
16102314
NUT
4
84653800
WASHER
5
127496
Washer
6
15888721
SCREW
7
11190574
WASHER
8
132876
NUT -As an alternative-
9
11001224
Stud bolt
10
138149
CONNECTOR
11
144485
Gasket
74
231621
Screw
83
11197774
Washer
14
132462
DRIVEN GEAR
15
307477
THREADED PLUG
16
10261860
Gasket
17
133284
Threading Plug
18
10303460
Gasket
19
223577
THREADED INSERT
77
11000824
Stud -Q.ty 4 for USA-
21
159564
BRACKET
22
145550
BRACKET
23
145326
BUSHING
24
133089
OIL PUMP CONTROL CHAIN
27
133939
O.R. GASKET
28
11198074
WASHER
29
14306424
SCREW
47
13540824
STUD BOLT
31
14039614
NUT
32
133842
STUD
33
133843
STUD
34
132458
DRIVING GEAR
35
132460
DRIVEN GEAR
36
109309
JOINT
37
132436
RECOVERY PUMP COVER
54
134041
NUT
40
121306
BALL
41
109980
SPRING FOR BALL
42
196077
SPACER
43
11057876
SEEGER RING
44
102704
CENTRING DOWEL
45
102725
CENTRING DOWEL
46
231629
SCREW
48
181862
DRIVEN GEAR
49
132454
DRIVING GEAR
50
13541024
STUD BOLT
51
10205820
Feather key
52
132434
FRONT COVER
55
143797
RECOVERY PUMP FLOATER
56
122429
Oil Filter
57
103944
Sealing ring
59
136039
FIXED TENSION
65
12646604
WASHER
62
155833
STOP SMALL PLATE
63
134263
STUD
67
10902224
SCREW
68
131837
NUT
69
129324
REGISTER
70
137614
SPRING
71
10257460
GASKET
72
129322
PRESSURE VALVE CAP
73
133938
O-Ring
75
127494
Washer
76
12644424
Washer
79
137192
O-RING
80
11199274
WASHER
81
10519378
WASHER
82
15896470
NUT
84
10902424
Screw
85
11065474
FLEXIBLE RING
86
171960
WASHER
