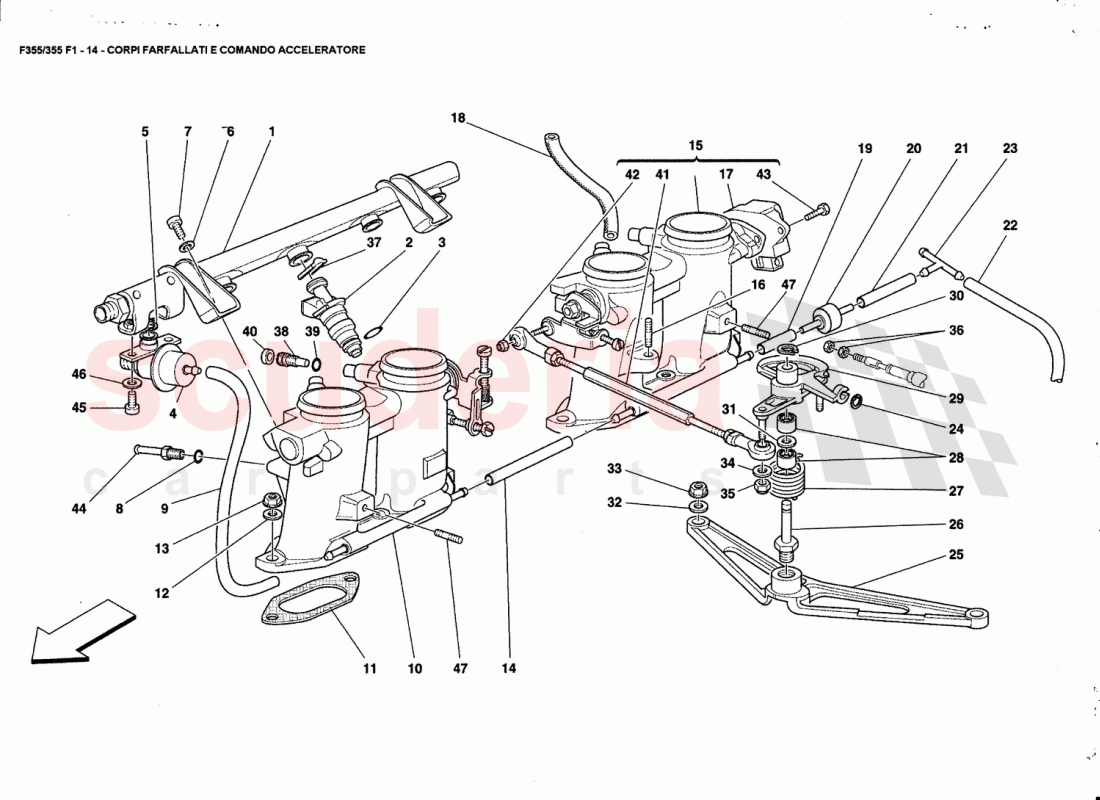

No

Kod

Parça Adı

18

116767

PIPE FROM CENTRAL FUEL TANK TO DISAREATOR

-

150529

COMPLETE LH REAR SUCTION MANIFOLD

-

150527

LH FRONT SUCTION MANIFOLD

-

178592

L.H. FLEXIBLE EXTENSION

8

177787

R.H. EXTENSION

4

167321

PRESSURE REGULATOR

-

171808

L.H.INJETOR FUEL DELIVERY PIPE.

-

171796

R.H. TUBE FOR INJECTORS

1

171807

R.H.INJECTOR FUEL DELIVERY PIPE.

2

149316

ELECTRO-INJECTOR

3

133902

O-Ring

5

152211

SEAL RING

32

12601374

Washer

7

86768100

SCREW

9

159539

RUBBER PIPE

10

150526

RH FRONT SUCTION MANIFOLD

11

152055

GASKET

13

14040711

NUT

14

159540

PIPE

15

150528

COMPLETE RH REAR SUCTION MANIFOLD

16

13516824

STUD BOLT

17

158170

POTENTIOMETER FOR THROTTLE VALVE

21

159541

UNION-R.H. VALVE CONNECTING PIPE

20

253896

NON-RETURN VALVE

22

159542

RUBBER PIPE

23

121793

3-WAY UNION

24

11087974

SNAP RING

25

157171

SUPPORT

26

160462

PIN

27

160535

SPRING

28

132873

ROLLERS BEARING

29

175234

ACCELERATOR CONTROL TRANSMISSION LEVER

30

11065676

Seeger Ring

31

136880

SPACER

33

147985

NUT

34

10519304

WASHER

35

319201

FUEL FILLER PIPE ASSEMBLY

36

10725011

NUT

37

144763

INJECTOR RETAINING SPRING

38

162700

ADJUSTMENT SCREW

39

166485

OR-Ring

40

166486

SAFETY PLUG

41

166488

COMPLETE TIE ROD

42

162731

TIE ROD FIXING NUT

43

162722

POTENTIOMETER FIXING SCREW

44

168100

UNION

45

168105

O.R. GASKET
