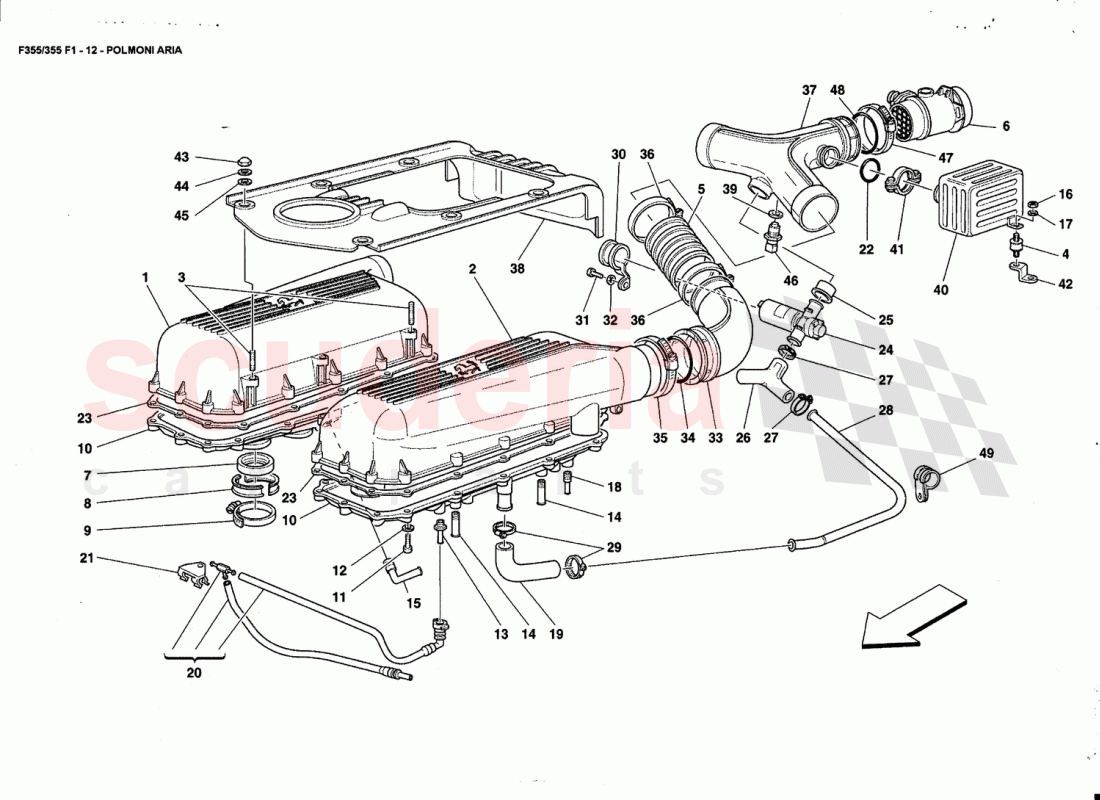

No

Kod

Parça Adı

-

179203

FLEXIBLE CLIP

-

170018

COMPLETE RH AIR FEEDING PLENUM CHAMBER AND COVER

-

168685

L.H. AIR DELIVERY SLEEVE

-

164300

LH. AIR DELIVERY TUBE

-

165414

LH AIR FEEDING PLENUM CHAMBER

2

170019

COMPLETE LH AIR FEEDING PLENUM CHAMBER AND COVER

-

167479

COMPLETE LH AIR FEEDING PLENUM CHAMBER AND COVER

-

165415

RH AIR FEEDING PLENUM CHAMBER

-

167478

COMPLETE RH AIR FEEDING PLENUM CHAMBER AND COVER

1

168709

RH AIR FEEDING PLENUM CHAMBER

3

11500724

STUD BOLT

4

113021

Plug

5

170917

SLEEVE

6

162397

AIR FLOW METER

7

145643

GASKET

8

169452

SEMI-RING

9

145645

CLAMP

10

167356

LOWER COVER

11

231620

Screw

12

11197774

Washer

13

160846

THREADED UNION

14

129808

THREADED UNION

15

153926

THREADED UNION

16

319201

FUEL FILLER PIPE ASSEMBLY

17

12644424

Washer

18

170444

THREADED UNION

19

164279

PIPE FROM REGULATOR TO PLENUM CHAMBER

20

166494

COMPLETE ANTI-EVAPORATION PIPING

21

128292

CLIP -For GD q.ty 2-

22

153628

GASKET

23

153381

GASKET

24

162406

REGULATOR FOR IDLE

25

164337

SLEEVE

26

164278

SLEEVE

29

13000490

Screw Collar

28

164299

R.H. AIR DELIVERY TUBE

30

164284

BRACKET WITH SHEATH

31

16043224

SCREW

32

12601374

Washer

33

168684

R.H. AIR DELIVERY SLEEVE

34

149666

O.R. GASKET

35

171001

CLAMP

36

13001090

SCREW COLLAR

37

164225

AIR DELIVERY Y TUBE

38

159517

SHIELD

39

10296160

GASKET

40

168783

DUCT

41

168902

CLAMP

42

168911

BRACKET

43

100044

Selflocking nut

44

10519424

WASHER

45

113113

WASHER

46

162419

AIR TEMPERATURE SENSOR

47

171000

CLAMP

48

126596

O.R. GASKET

49

10441790

BRACKET WITH SHEATH
