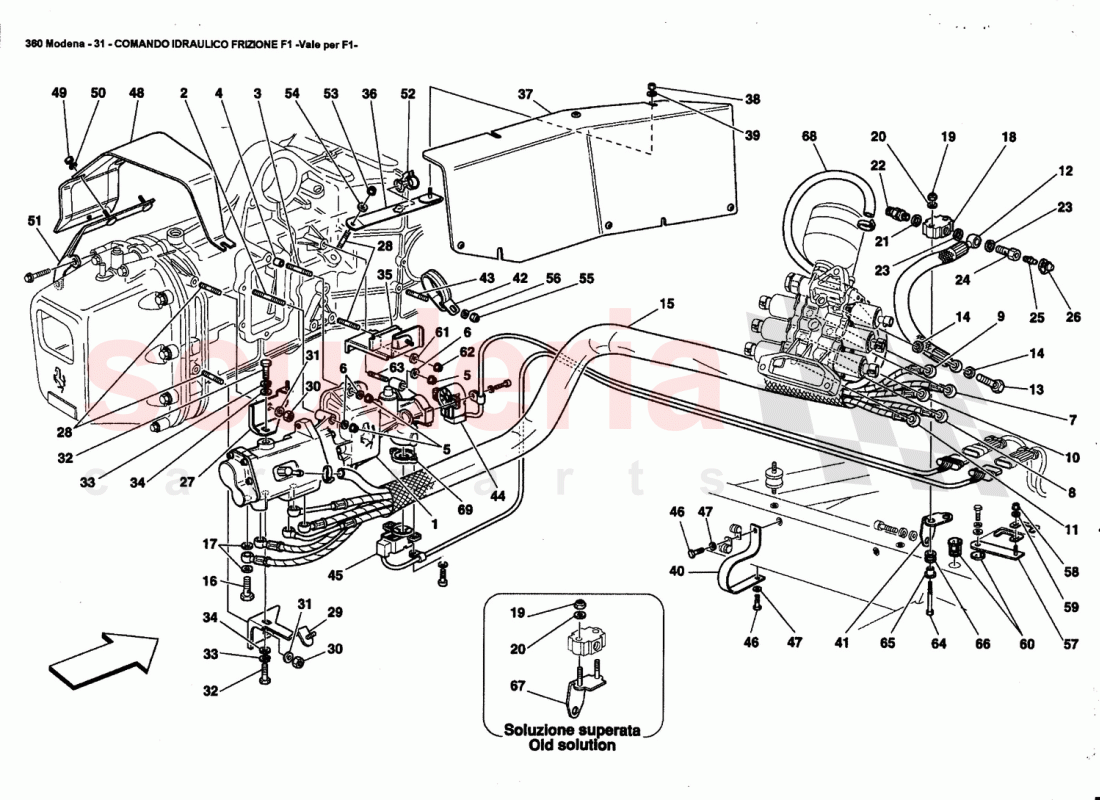

No

Kod

Parça Adı

-

181161

F1 GEARBOX SYSTEM COMPONENTS KIT

1

181160

COMPLETE HYDRAULIC ACTUATOR

2

11501024

STUD BOLT

3

11500724

STUD BOLT

4

103038

DOWEL

55

14039614

NUT

20

11197774

Washer

7

179340

PIPE (EV1) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232407-

8

179342

PIPE (EV2) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232408-

9

179343

PIPE (EV3) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232409-

10

179344

PIPE (EV4) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232410-

11

179345

PIPE (EV5) -Valid till Ass. Nr. 69346--Not as spare part--Replaced by 232411-

12

179348

PIPE FROM PUMP TO BLOCK

16

171454

PIPE UNION

23

10261060

Gasket

15

179346

PROTECTIVE SHEATH

18

175667

BLOCK

21

171755

WASHER

22

70001184

FEMALE COUPLING -Not as spare part- -Replaced by 210469-

24

171630

UNION-Valid for F1-

25

152954

BLEED SCREW

26

152955

PROTECTIVE CAP

27

242682

UPPER ACTUATOR MOUNTING BRACKET

28

13516424

STUD BOLT

29

248092

BRACKET KIT

29

174260

LOWER ACTUATOR SUPPORT BRACKET

62

14040711

NUT

33

127496

Washer

32

16043124

SCREW

34

84653800

WASHER

35

180807

PIPES SUPPORTING BRACKET

36

181614

SHIELD SUPPORTING BRACKET

37

177384

SHIELD FOR ACTUATOR PROTECTION

49

15896470

NUT

50

12637824

WASHER

40

180782

PIPES SUPPORTING BRACKET

41

186685

BLOCK MOUNTING BRACKET

42

124034

BRACKET WITH SHEATH

43

13540724

STUD BOLT

45

181325

SELECTION SENSOR

46

16286127

SCREW

47

10519424

WASHER

48

180744

SENSOR PROTECTION SHIELD

51

180745

SHIELD MOUNTING BRACKET

52

164565

FIXING CLIP

61

12638524

WASHER

56

12643724

WASHER

57

181344

BRACKET

58

319201

FUEL FILLER PIPE ASSEMBLY

59

14496324

WASHER

60

65891200

NUT WITH CAGE

63

11500624

STUD BOLT

64

10903224

SCREW

65

149707

SHIM

66

177576

CABLE GROMMET

67

176142

BLOCK SUPPORT BRACKET

68

248088

RECIRCULATION PIPE KIT

69

192911

POTENTIOMETER SUPPORT
