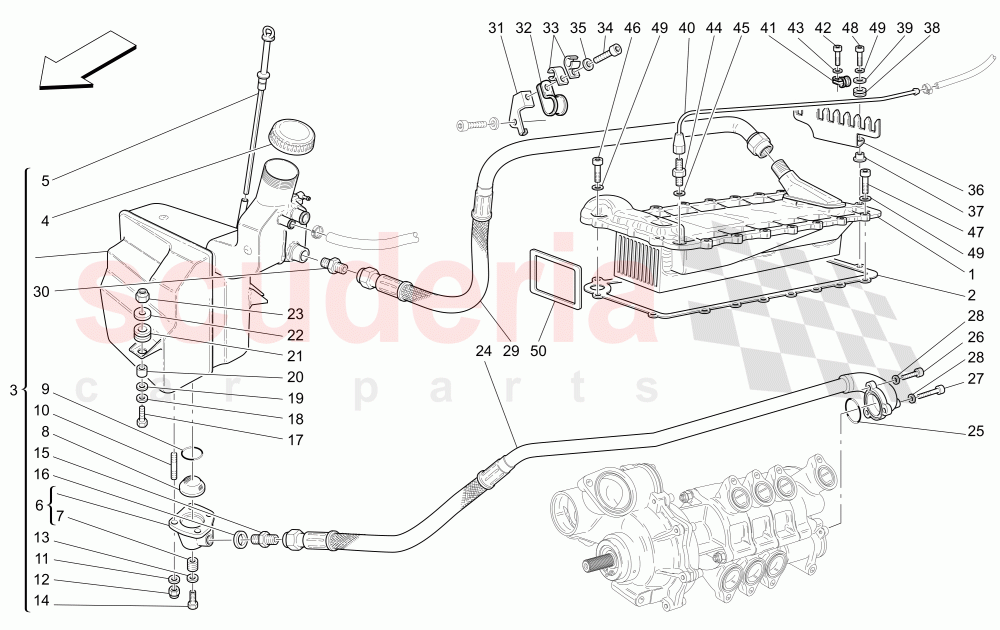

Maserati Yedek Parça - 4200 Spyder (2005-2007) CC Parts - LUBRICATION SYSTEM: CIRCUIT AND COLLECTION (Available with: "Spyder 90th Anniversa…
Parça Kodları
No
Kod
Parça Adı
1
186356
Water/Oil Exchanger
2
322664
GASKET
3
211465
COMPLETE OIL TANK
4
189116
PLUG
5
192510
DIPSTICK
6
151684
OIL SUCTION FAN
7
111352
THREADED INSERT
8
100332
OIL DUCTING FILTER
9
125521
O.R. GASKET
10
11500524
STUD
49
11197774
Washer
12
14039614
NUT
13
10257060
GASKET
13
675000691
Gasket
14
293107
THREADED PLUG
15
186746
THREADED UNION
16
144485
GASKET
17
231629
SCREW
18
14496524
WASHER
19
127496
WASHER
20
107980
SPACER
21
184519
PAD
22
107979
WASHER
23
16104411
NUT
24
194456
PIPE FROM TANK TO OIL PUMP
24
194457
PIPE FROM TANK TO OIL PUMP
25
109649
GASKET
26
231617
SCREW
47
186196
SCREW
27
14304824
SCREW
27
14303834
SCREW
29
186060
PIPE FROM HEAT EXCHANGER TO OIL TANK
30
170157
UNION
31
184821
BRACKET
32
10441890
BRACKET WITH SHEATH
33
187713
RETAINING CLIP
34
248334
SCREW
36
191396
Bracket
37
149707
SPACER
38
177576
INTERMEDIATE RING
39
12643724
Washer
40
192326
COMPLETE VENT PIPE
41
10440890
BRACKET WITH SHEATH
42
14305024
SCREW
44
192327
Union
45
10284460
GASKET
46
231621
SCREW
47
231619
SCREW
48
231622
SCREW
50
247146
GASKET
