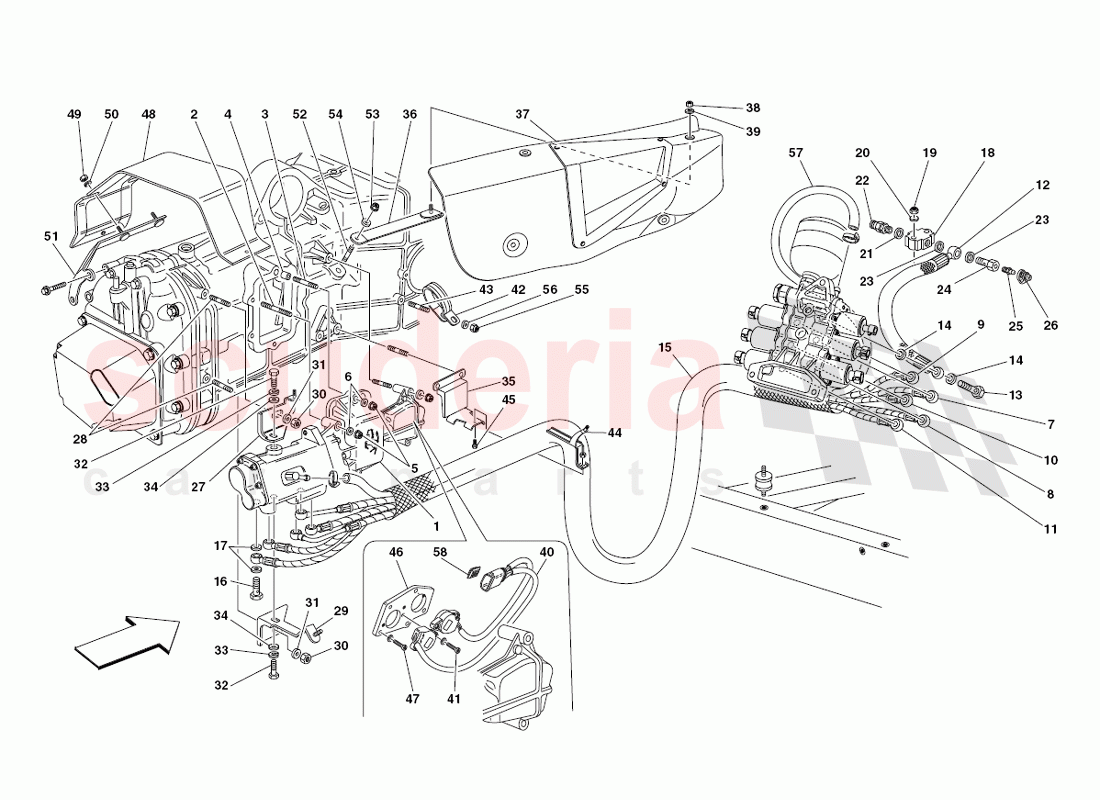

No

Kod

Parça Adı

0

232406

F1-TYPE GEARBOX SYSTEM COMPONENTS KIT

1

248084

HYDRAULIC ACTUATOR KIT

2

11501024

STUD BOLT

3

11500724

STUD BOLT

4

103038

DOWEL

53

14040711

NUT

33

127496

Washer

7

179340

PIPE (EV1) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232407-

8

179342

PIPE (EV2) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232408-

9

179343

PIPE (EV3) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232409-

10

179344

PIPE (EV4) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232410-

11

179345

PIPE (EV5) -Valid till Ass. Nr. 69346--Not as spare part--Replaced by 232411-

12

248101

EVF PIPE KIT

13

204545

UNION -Fixing EV3, EV4 and EV5 to power unit-

16

171454

PIPE UNION

23

10261060

Gasket

15

179346

PROTECTIVE SHEATH

16

204543

UNION -Fixing EV3, EV4 and EV5 to actuator-

18

175667

BLOCK

55

14039614

NUT

20

11197774

Washer

21

171755

WASHER

22

210468

QUICK MALE COUPLING

24

171630

UNION-Valid for F1-

25

152954

BLEED SCREW

26

152955

PROTECTIVE CAP

27

242682

UPPER ACTUATOR MOUNTING BRACKET

52

13516424

STUD BOLT

29

195549

LOWER ACTUATOR SUPPORT BRACKET

45

16043124

SCREW

34

84653800

WASHER

35

208101

TUBES MOUNTING BRACKET

36

242669

SHIELD MOUNTING BRACKET

37

110752

ACTUATOR GUARD SHIELD

49

15896470

NUT

50

12637824

WASHER

40

248095

Position Sensor Kit

41

192865

SCREW

42

124034

BRACKET WITH SHEATH

43

13540724

STUD BOLT

44

208103

BRACKET

46

222502

POTENTIOMETERS FLANGE

47

192866

SCREW

48

208622

SENSOR GUARD SHIELD

51

180745

SHIELD MOUNTING BRACKET

54

12638524

WASHER

56

12643724

WASHER

57

248088

RECIRCULATION PIPE KIT

58

213472

CLIP
