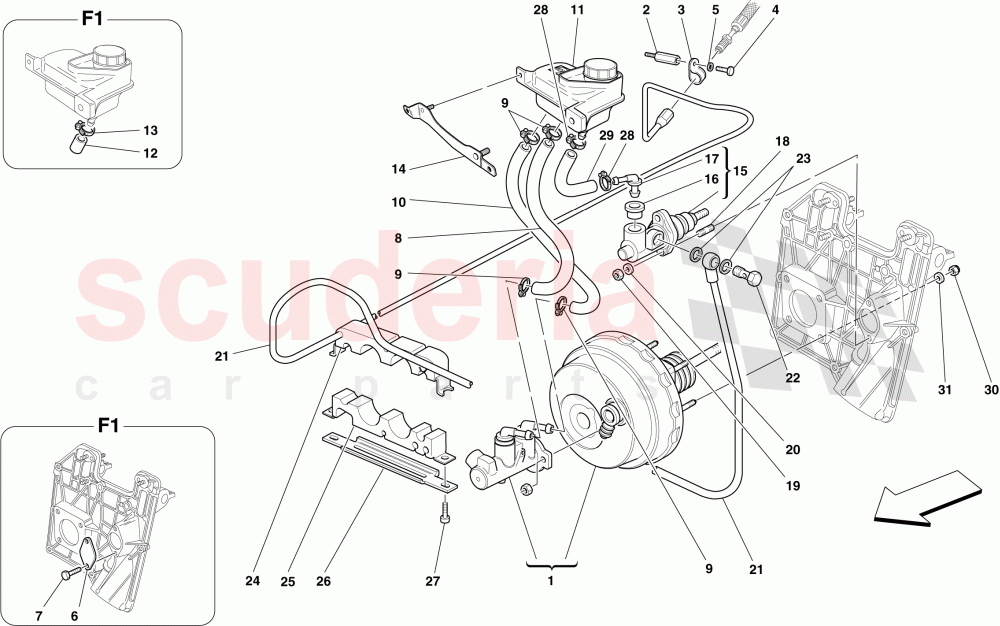

No

Kod

Parça Adı

1

191087

COMPLETE SERVOBRAKE

1

198634

COMPLETE SERVOBRAKE

2

178772

STUD BOLT

3

10441390

BRACKET WITH SHEATH

4

10902224

SCREW

5

127494

Washer

6

174177

FLANGE

7

16043021

SCREW

8

154011

RUBBER PIPE

8

219140

PIPE FROM FRONT CONNECTOR TO TANK

8

219142

PIPE FROM FRONT CONNECTOR TO TANK

28

13432070

Collar for Hose Union

10

194598

PIPE FROM REAR CONNECTOR TO TANK

10

211377

RUBBER PIPE

10

219139

PIPE FROM REAR CONNECTOR TO TANK

10

219141

PIPE FROM REAR CONNECTOR TO TANK

11

203903

BRAKE FLUID RESERVOIR

12

248008

CAP

14

195352

BRACKET

14

210758

BRACKET

15

180841

CLUTCH PUMP

16

175189

SEAT RING

17

184497

CONNECTOR

18

13517024

STUD BOLT

30

104030

Nut

31

12601374

Washer

21

202550

PIPE FROM PUMP TO REAR CONNECTOR

21

219887

PIPE FROM PUMP TO REAR CONNECTOR

22

180042

PIPE UNION

23

10298460

Gasket

24

201028

UPPER MOUNTING

25

201029

LOWER MOUNTING

26

243694

PLATE

27

11197774

Washer

29

134903

RUBBER PIPE

29

212291

RUBBER PIPE
