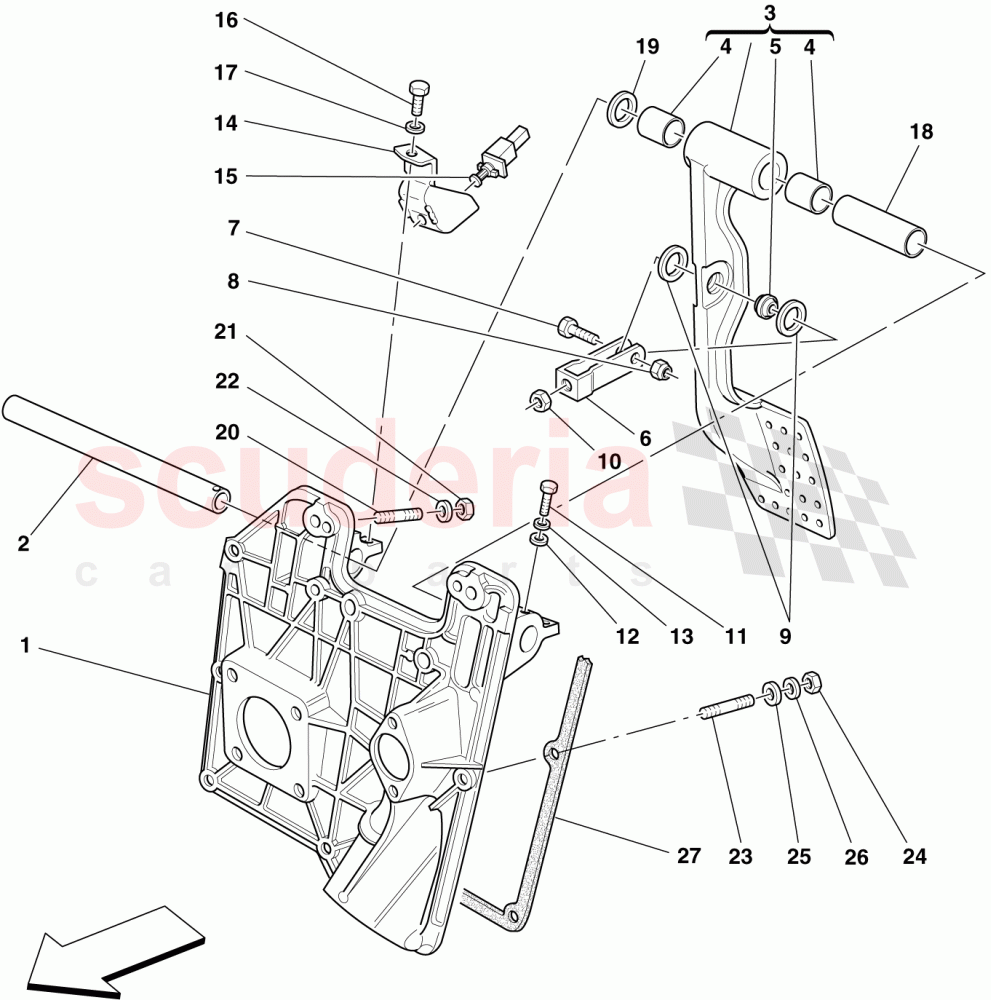

No

Kod

Parça Adı

1

176464

PEDAL BOARD MOUNTING

1

241502

PEDAL BOARD MOUNTING

2

176466

PEDAL MOUNTING PIN

3

180558

COMPLETE BRAKE PEDAL

29

103163

SELF-LUBRICATING BUSHING

30

176475

BALL-JOINT

6

180559

COMPLETE CLUTCH PEDAL

27

16102314

NUT

26

187014

PEDAL ADJUSTER SCREW

11

180516

CENTRAL MOUNTING

12

133555

PUSHBUTTON SWITCH

13

176471

FORK

13

199754

FORK

14

66535800

SCREW

15

147985

NUT

16

176522

PLASTIC WASHER

18

101305

SPRING

19

10902424

Screw

20

10519424

WASHER

21

127494

Washer

22

219558

SWITCH MOUNTING

23

334064

PUSH-BUTTON SWITCH -Valid for support 218606 Ref. 22-

23

318205

PushButton Switch

24

16043224

SCREW

25

127496

Washer

28

180560

COMPLETE BRAKE PEDAL

31

176918

SHIM

34

113836

WASHER

33

106083

WASHER

33

113833

WASHER

34

113834

WASHER

34

113835

WASHER

34

178340

WASHER

35

13516924

STUD BOLT

36

104030

Nut

37

12638524

WASHER

38

13517024

STUD BOLT

39

16102377

NUT

40

13550321

WASHER

41

12601374

Washer

42

176524

PEDAL BOARD MOUNTING GASKET
