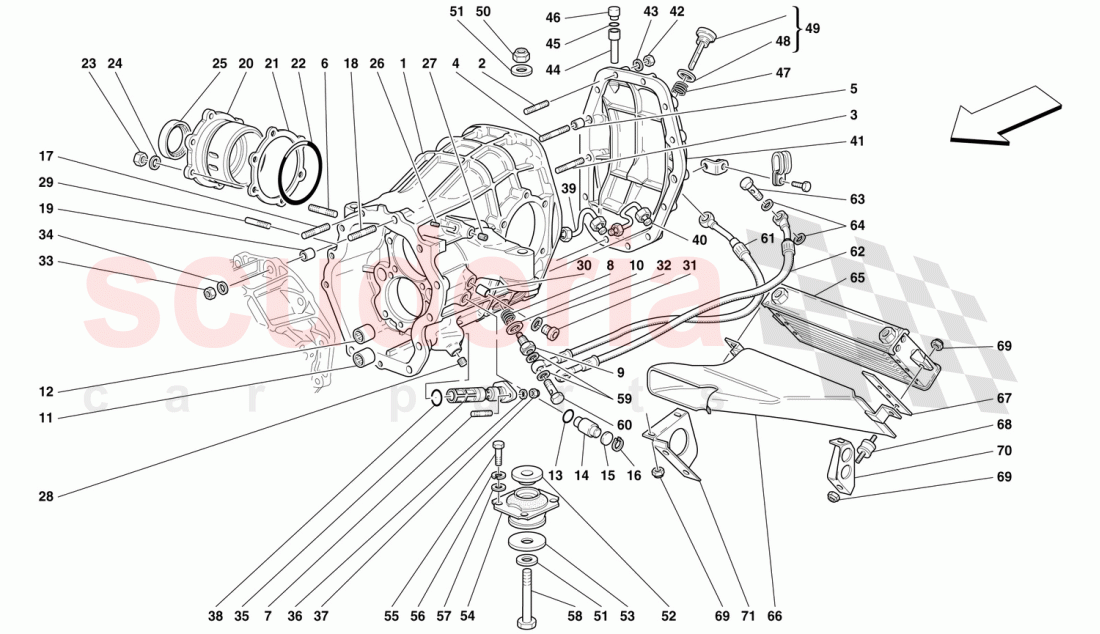

Ferrari Yedek Parça - 456 GT/GTA Parts - DIFFERENTIAL CARRIER AND GEARBOX COOLING RADIATOR -Not for 456 GTA-

Parça Kodları

No

Kod

Parça Adı

41

168107

GEARBOX REAR COVER

-

133628

R.H. seal ring on

-

150106

DIFFERENTIAL COVER SHIM

-

150107

DIFFERENTIAL COVER SHIM

-

150108

DIFFERENTIAL COVER SHIM

-

150101

DIFFERENTIAL COVER SHIM

-

150102

DIFFERENTIAL COVER SHIM

-

150103

DIFFERENTIAL COVER SHIM

-

150104

DIFFERENTIAL COVER SHIM

-

150105

DIFFERENTIAL COVER SHIM

-

150100

DIFFERENTIAL COVER SHIM

-

106500

BUSHING

-

161978

GEAR BOX 4th ELEMENT

-

172616

COMPLETE GEARBOX

-

164049

GEAR BOX 4th ELEMENT

1

157955

COMPLETE GEARBOX

-

164046

COMPLETE GEARBOX

18

13543624

STUD BOLT

3

13543724

STUD BOLT

4

13543824

STUD BOLT

19

102704

CENTRING DOWEL

6

13546224

STUD BOLT

7

11001024

Stud

47

223577

THREADED INSERT

9

150853

UNION

10

10263460

Gasket

11

159160

BEARING BUSH FOR REVERSE ROD

12

149907

BUSHING

13

134232

O-RING

14

153719

ROD

15

154698

PAD

16

11057476

SEEGER RING

17

13543524

STUD BOLT

20

177438

DIFFERENTIAL COVER WITH BEARING

21

150099

DIFFERENTIAL COVER SHIM

22

139453

O.R. GASKET

23

133988

NUT

24

12601474

WASHER

25

141509

L.H. seal ring on

26

65928500

THREADED PLUG

27

14326150

CAP

28

14326050

CAP

29

16183021

SCREW

30

115376

BUSHING

31

150731

CAP

32

10282460

GASKET

42

14040711

NUT

43

12601374

Washer

35

251638

GEARBOX OIL FILTER

36

14496324

WASHER

37

319201

FUEL FILLER PIPE ASSEMBLY

38

147278

O-Ring

39

150594

OIL DELIVERY TUBE

40

150592

OIL RETURN TUBE

44

153500

EXTENSION FOR OIL BREATHER

45

13415400

OIL SEAL DISC FOR BREATHER

46

13414691

OIL BREATHER

48

10261860

Gasket

49

144014

COMPLETE OIL LEVEL ROD

50

12575915

NUT

51

10520224

WASHER

52

132268

UPPER SPACER

53

132269

LOWER SPACER

54

159423

Gearbox supporting pad

55

15970634

SCREW

56

127497

Washer

57

126648

Washer

58

15981634

SCREW -Valid till Ass. Nr. 16066-

64

10261060

Gasket

63

171454

PIPE UNION

61

156133

OIL DELIVERY TUBE TO RADIATOR

62

156134

OIL RETURN TUBE FROM RADIATOR

65

154696

OIL RADIATOR

66

156132

AIR CONVEYOR

67

158276

GASKET

68

102947

VIBRATION DAMPER

69

13832101

NUT

70

156131

L.H. BRACKET

71

156130

R.H. BRACKET
