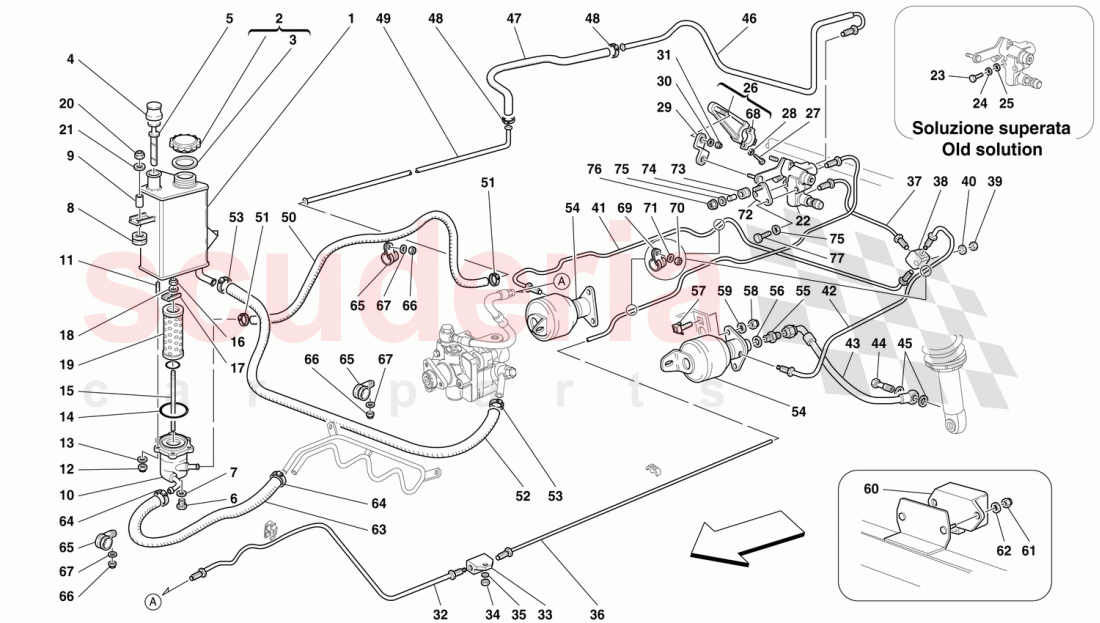

No

Kod

Parça Adı

-

157742

PIPE TO TWO-WAY UNION

2

180320

COPMLETE TANK PLUG

3

180585

GASKET FOR PLUG

1

179185

FUEL TANK

4

153887

PLUG

5

154090

OIL LEVEL INDICATOR ROD

6

11903111

OIL OUTLET PLUG

7

10260160

GASKET

73

103549

Cable Grommet

74

103550

Spacer bush -Only for

10

181233

SPINDLE FOR FUEL TANK

11

13539424

STUD BOLT

12

319201

FUEL FILLER PIPE ASSEMBLY

28

14496324

WASHER

14

154691

GASKET

15

153646

STUD

76

14039614

NUT

17

157100

PLATE

71

10519424

WASHER

19

154217

OIL FILTER

75

12643724

WASHER

22

179046

VALVE AND UNION ASSEMBLY

23

10902424

Screw

25

127494

Washer

26

156709

LEVER

27

10978021

SCREW

29

180857

SMALL LINK

30

14496204

WASHER

31

62790300

Nut

32

155227

PIPE TO TWO-WAY UNION

33

155215

R.H. TWO-WAY UNION

67

12639724

Washer

36

155446

PIPE FROM UNION TO VALVE

37

154155

PIPE FROM VALVE TO 3-WAY UNION

38

154156

3-WAY UNION

41

154157

PIPE FROM 3-WAY UNION TO RHACCUMULATOR

42

154158

PIPE FROM 3-WAY UNION TO LHACCUMULATOR

43

154159

PIPE FROM ACCUMULATOR TO SHOCK ABSORBER

44

277407

FUEL FILLER NECK PIPE

56

10280060

Gasket

46

154161

RETURN PIPE

47

155444

RETURN RUBBER PIPE

51

13432070

Collar for Hose Union

49

155447

INTERMEDIATE BUNDY TUBE

50

155443

RUBBER PIPE TO TANK

52

155442

RUBBER PIPE FROM TANK TO PUMP

53

10300390

SCREW COLLAR

54

158693

ACCUMULATOR FOR ATTITUDE VARIATOR

55

155129

UNION

57

14664790

CAGE SCREW

62

12646604

WASHER

60

154310

FILTRATE ACCELEROMETER

63

155574

RUBBER PIPE FROM COOLING PIPE TO TANK

64

262109

COLLAR

65

10441790

BRACKET WITH SHEATH

68

158087

RETAINER

69

10440890

BRACKET WITH SHEATH

72

169224

INTERMEDIATE BRACKET

77

10902834

SCREW
