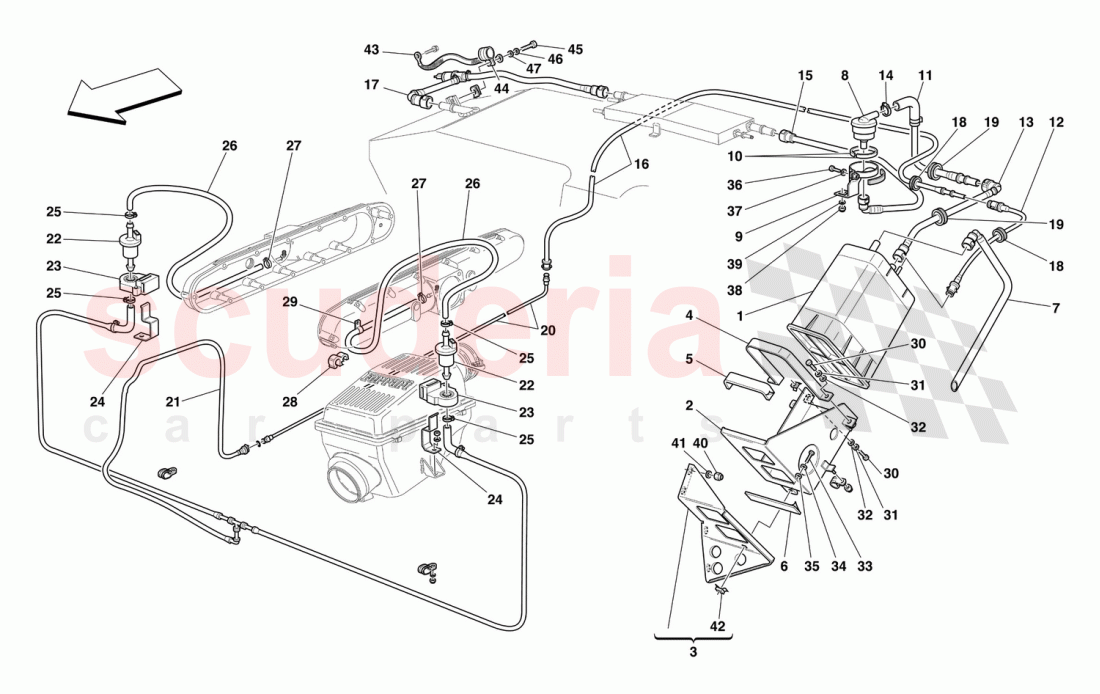

No

Kod

Parça Adı

20

183821

UNDERFLOOR TUBE

1

178536

FUEL VAPOR FILTER

2

180783

VAPOR FILTER CONTAINER

3

180777

CONTAINER SUPPORT

4

180781

FIXING BRACKET

5

180789

RUBBER THICKNESS

6

180790

RUBBER THICKNESS

7

181186

VAPOR FILTER EXHAUST TUBE

8

180573

ANTI FLOWING BACK VALVE

9

180866

FIXING BRACKET

10

180867

RUBBER THICKNESS

11

181184

PIPE FROM VALVE TO VAPOR FILTER CONNECTION

12

181185

PIPE FROM VAPOR FILTER TO UNDERFLOOR PIPE CONNECTION

13

181178

PIPE FROM CONNECTION TO VAPOR FILTER

14

13433370

Screw Collar

15

181179

PIPE FROM DISAERATOR TO VALVE

16

181177

PIPE FROM CONNECTION TO UNDERFLOOR PIPE

17

182061

PIPE WITH UNION

18

10396680

CABLE GROMMET

19

10397980

CABLE GROMMET

21

181174

PIPE FROM UNDERFLOOR TUBE TO VALVE

22

162412

Flush Valve

23

174623

VIBRATION DAMPER

24

178792

R.H. PAD SUPPORT BRACKET

25

13432070

Collar for Hose Union

26

179768

PIPE CONNECTING AIR CHAMBERS ANTIEVAPORATION VALVE

27

157934

SCREW COLLAR

28

180148

FLEXIBLE CLIP

29

10418601

BRACKET WITH SHEATH

36

10977524

SCREW

37

127494

Washer

41

12643724

WASHER

40

14039614

NUT

42

60659100

Nut With Cage

43

184206

GROUND CABLE

44

10442190

BRACKET WITH SHEATH

45

10977824

SCREW

46

13577701

WASHER

47

10571470

WASHER
