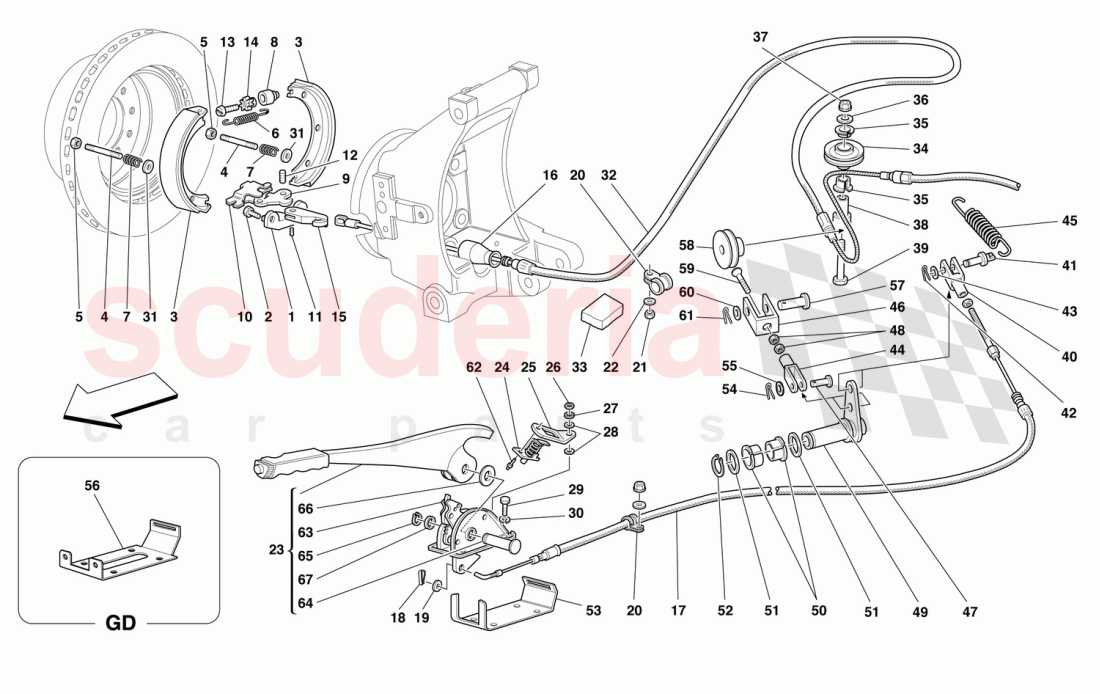

No

Kod

Parça Adı

-

657538

LINING

1

142861

HUB HOLDER SMALL BLOCK

2

142856

SCREW

3

178382

Complete Brake Shoe

4

13539224

STUD

5

14058319

NUT

6

101276

RETURN SPRING FOR BRAKE SHOES

7

177625

BRAKE SHOE SPRING

8

101279

SEAT FOR ADJUSTMENT SCREW

9

101280

Inner Control Lever

10

101281

Outer Control Lever

11

101282

FIXING FORK TO INNER LEVER PIN

12

101283

Pin for joint

13

101285

SCREW

14

101286

Nut for adjusting screw

15

105270

Inner lever control fork

16

143938

STOP LIMIT FOR HAND BRAKE SHEATH

17

172908

HAND-BRAKE CONTROL FRONT CABLE

18

264555

SPLIT PIN

55

84653800

WASHER

20

10441290

BRACKET WITH SHEATH

37

14039614

NUT

36

10519424

WASHER

23

154095

HAND BRAKE LEVER

24

169292

SWITCH

25

169291

SUPPORT BRACKET

26

15896470

NUT

27

12601174

Washer

28

63622400

WASHER

29

16286127

SCREW

30

127494

Washer

31

12637824

WASHER

32

172909

HAND-BRAKE CONTROL REAR CABLE

33

158346

RUBBER THICKNESS

58

175781

PULLEY FOR CABLE

35

163501

BUSHING

38

163182

PIN

39

10903421

SCREW

40

10007871

FORK FOR BRAKE LEVER

41

168954

PIN

54

10734301

SPLIT PIN

43

107618

WASHER

44

10248271

FORK FOR CLUTCH LEVER

45

104895

SPRING

46

172906

FORK

47

10050814

PIN

48

16102314

NUT

49

163192

BRAKE LEVER CABLE

50

152273

BUSHING

51

152300

WASHER

52

11066476

Seeger Ring

53

64051200

SUPPORT

56

65562800

BRACKET

57

172907

PIN

59

14442434

SCREW

60

14499624

WASHER

61

10733601

SPLIT PIN

62

50084409

RIVET

63

191634

COMPLETE MECHANISM

64

191635

PIN

65

191638

Seeger Ring

66

191636

WASHER

67

191637

SPACER WASHER
