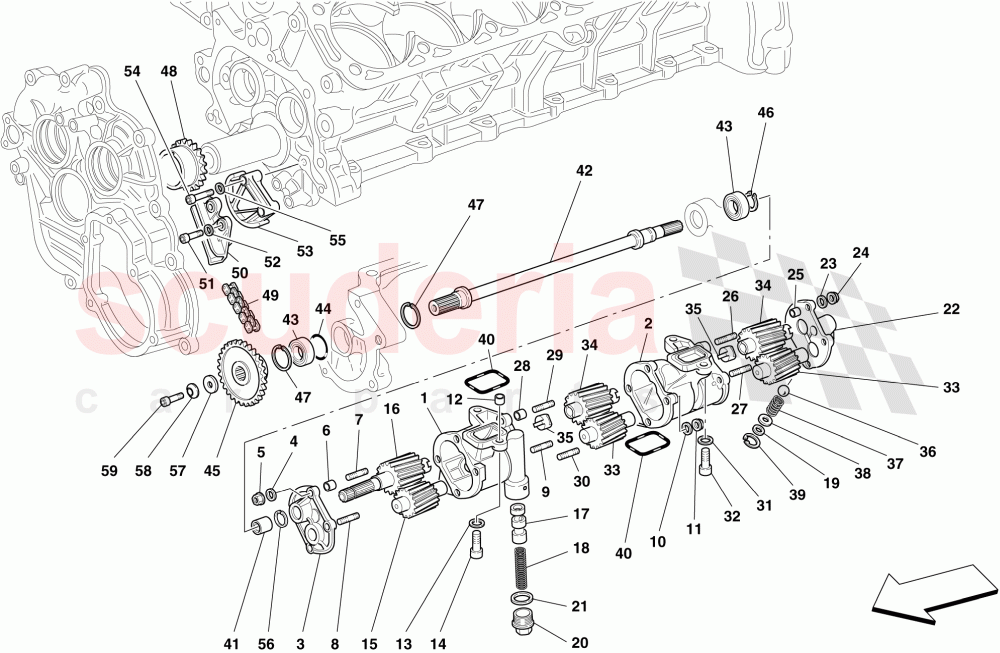

Ferrari Yedek Parça - 456 M GT/GTA Parts - LUBRICATION - OIL PUMPS
Parça Kodları
No
Kod
Parça Adı
-
141525
CHAIN GUIDE SHOE
-
152536
FIXED SHOE
-
163750
DRIVEN GEAR
-
141459
DRIVE GEAR
-
163753
OIL PUMP DRIVE CHAIN
9
11500224
STUD BOLT
1
153197
COMPLETE DELIVERY PUMP BODY
2
153198
COMPLETE SCAVENGE PUMP BODY
3
141837
DELIVERY PUMP COVER
46
11197774
Washer
24
134041
NUT
28
102725
CENTRING DOWEL
26
13541124
STUD BOLT
27
13540824
STUD BOLT
10
153366
WASHER
11
14039614
NUT
12
102704
CENTRING DOWEL
31
11193874
Washer
14
231629
SCREW
15
154518
DRIVEN GEAR
16
154519
DRIVE GEAR
17
156950
PISTON
18
137614
SPRING
19
10519424
WASHER
20
156143
CAP
21
10257460
GASKET
22
141838
SCAVENGE PUMP COVER
29
13541224
STUD BOLT
30
13540924
STUD BOLT
54
14306424
SCREW
33
154516
DRIVEN GEAR
34
154517
DRIVE GEAR
35
109309
JOINT
36
121306
BALL
37
109980
SPRING FOR BALL
60
196077
SPACER
39
11057876
SEEGER RING
40
154588
O-RING
41
141252
JOINT
42
231617
Screw
43
157042
SHAFT
44
140915
BEARING
45
140071
O-Ring
47
157041
DRIVEN GEAR
48
106744
WASHER
49
11066576
SEEGER RING
50
11058876
SEEGER RING
51
154513
DRIVING GEAR
52
154515
OIL PUMP CONTROL CHAIN
53
154484
CHAIN TENSIONER
55
14499421
WASHER
56
154483
FIXED TENSIONER
57
14305521
SCREW
58
238108
Washer
59
11066376
SEEGER RING
