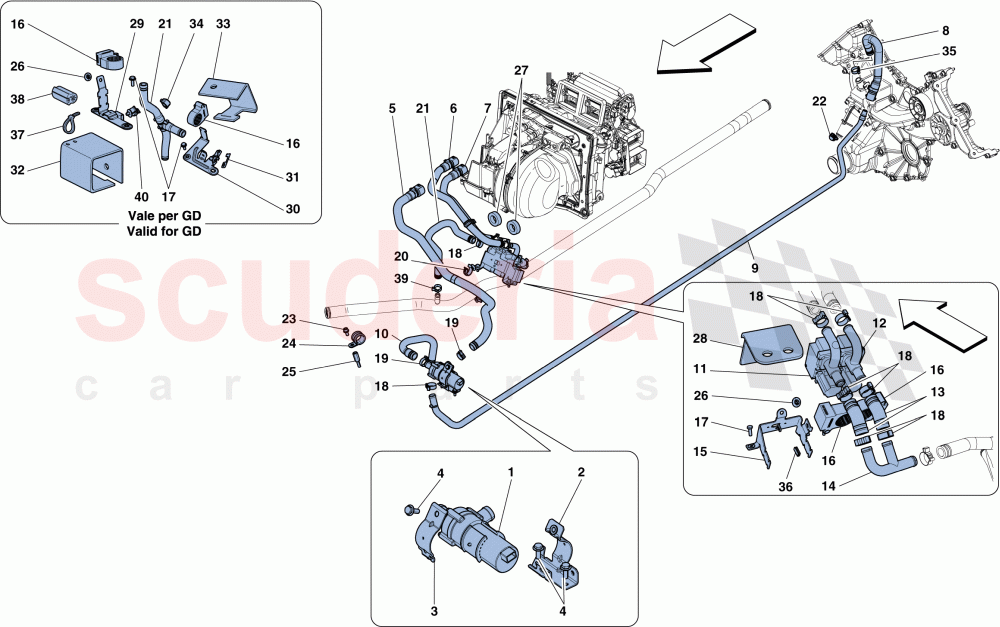

No

Kod

Parça Adı

1

65460300

COMPLETE WATER PUMP

2

82328900

BRACKET

3

82329400

CURVED BRACKET

21

11625624

SCREW

5

82887100

CONNECTOR PIPE

5

82302800

CONNECTOR PIPE

6

82761900

RH TGK VALVE CONNECTOR PIPE

6

82887200

RH TGK VALVE CONNECTOR PIPE

7

82302700

LH TGK VALVE CONNECTOR PIPE

7

82887300

LH TGK VALVE CONNECTOR PIPE

8

86091700

RUBBER PIPE

9

255515

PLUG

28

10441890

BRACKET WITH SHEATH

11

83560800

GUARD

12

82890600

AC UNDERBODY PIPE

13

83444200

DRIP BAFFLE RING

14

82887000

CONNECTOR PIPE

15

67444900

LH TGK Valve

16

67635900

RH TGK VALVE

17

82302900

CONNECTOR PIPE

17

291116

CONNECTOR PIPE

18

290953

RIGID TGK VALVE OUTLET PIPE

18

247947

RIGID TGK VALVE OUTLET PIPE

19

82328500

TGK VALVE BLOCK MOUNTING BRACKET

20

174623

VIBRATION DAMPER

21

11625824

SCREW

35

262109

COLLAR

22

262114

Collar

23

262111

Collar

24

270085

CLIP

25

291115

CONNECTOR PIPE

25

82887400

CONNECTOR PIPE

25

82944600

CONNECTOR PIPE

26

263232

CLIP

27

248334

SCREW

29

178772

STUD BOLT

30

204781

CLIP

31

83413300

RH TGK VALVE MOUNTING BRACKET

32

83689500

WATER PIPE RUBBER GUARD

33

84058400

LH TGK VALVE MOUNTING BRACKET

34

83689600

WATER PIPE RUBBER GUARD

35

292980

COLLAR

36

206739

CLAMP

37

262737

RUBBER RETAINER

38

231214

CLIP

39

162606

CLIP

40

291225

BRACKET WITH SHEATH

41

241708

CLIP
