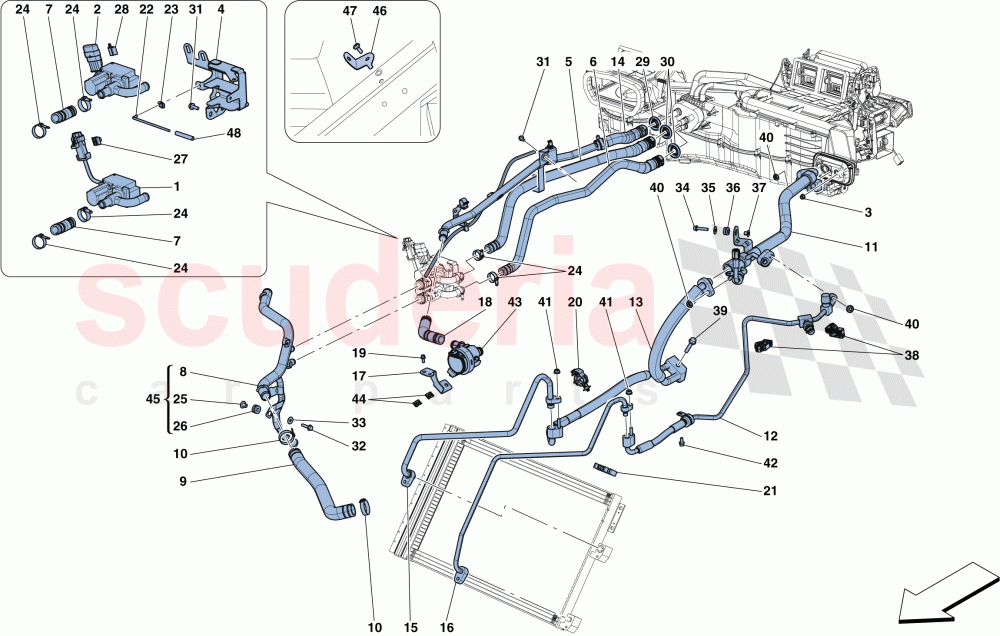

No

Kod

Parça Adı

1

86240500

PIPE FROM COMPRESSOR TO UNDERBODY

2

86854500

FREON RETURN PIPE TO COMPRESSOR

3

14306724

SCREW

4

86049900

UNDERBODY FREON DELIVERY-RETURN PIPE

5

231617

Screw

6

87703000

PIPE FROM HVAC TO UNDERBODY

6

87703100

PIPE FROM HVAC TO UNDERBODY

7

308399

SPACER

45

11625824

SCREW

9

14040711

NUT

10

86402700

FREON DELIVERY PIPE TO CONDENSER

11

10441290

BRACKET WITH SHEATH

12

248334

SCREW

15

13837017

Screw

14

86402800

PIPE FROM CONDENSER TO DEHYDRATOR FILTER

14

86927200

PIPE FROM CONDENSER TO DEHYDRATOR FILTER

16

250318

CLIP

21

11612826

SCREW

18

67085100

Gas Filter

19

82155900

DEHYDRATOR FILTER BRACKET

19

82886600

DEHYDRATOR FILTER BRACKET

20

86403000

PIPE FROM FILTER TO HVAC

20

86927400

PIPE FROM FILTER TO HVAC

22

262380

CLIP

24

263230

CLIP

25

86228900

RUBBER PIPE

26

86253700

UNDERBODY WATER PIPE

27

263232

CLIP

28

86280800

HOSE UNION

59

262109

COLLAR

30

10441890

BRACKET WITH SHEATH

31

178772

STUD BOLT

50

11625624

SCREW

33

316986

SPACER

34

262111

Collar

35

291349

IDLE WATER RECIRCULATION PUMP

36

86051000

RECIRCULATION PUMP MOUNTING BRACKET

37

291645

CLIP

39

86280900

HOSE UNION

39

86928400

HOSE UNION

40

82761900

RH TGK VALVE CONNECTOR PIPE

40

82887200

RH TGK VALVE CONNECTOR PIPE

41

82887300

LH TGK VALVE CONNECTOR PIPE

41

82302700

LH TGK VALVE CONNECTOR PIPE

42

83444200

DRIP BAFFLE RING

43

82329900

CLIP

44

82328500

TGK VALVE BLOCK MOUNTING BRACKET

46

255515

PLUG

47

162606

CLIP

48

82331800

RUBBER SPACER BUTTON

49

174623

VIBRATION DAMPER

51

83560800

GUARD

52

67635900

RH TGK VALVE

53

67444900

LH TGK Valve

54

291116

CONNECTOR PIPE

55

290953

RIGID TGK VALVE OUTLET PIPE

57

82887400

CONNECTOR PIPE

57

291115

CONNECTOR PIPE

60

14040614

Nut

61

239829

VIBRATION DAMPER

62

83413300

RH TGK VALVE MOUNTING BRACKET

63

83689500

WATER PIPE RUBBER GUARD

64

84058400

LH TGK VALVE MOUNTING BRACKET

65

83689600

WATER PIPE RUBBER GUARD

66

241708

CLIP

67

139966

CLIP

68

14059211

Nut

69

10519424

WASHER

72

11342784

GASKET

71

11342584

GASKET

73

14453284

GASKET

74

13442484

GASKET
