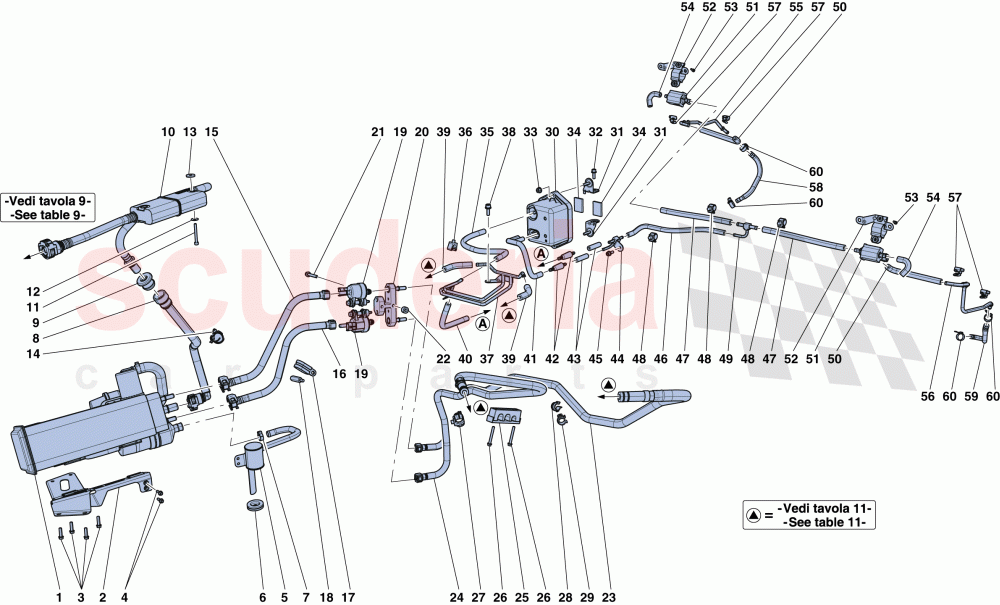

No

Kod

Parça Adı

1

314011

COMPL. VAPOUR SEPARATOR

2

10716470

COLLAR

3

319372

TANK AIR BUBBLE CONNECTOR PIPE

50

13046011

NUT

5

319787

VENTURI LH INLET PIPE

6

319789

VENTURI RH INLET PIPE

7

314613

BRACKET

31

239829

VIBRATION DAMPER

32

14040614

Nut

10

14039511

NUT

12

305726

BRACKET

12

181268

BRACKET

39

11625824

SCREW

14

239094

CLIP

15

310825

PIPE FROM DISCONNECTER TO CANISTER

36

13432070

Collar for Hose Union

17

290424

BRACKET WITH SHEATH

18

330864

CANISTER SHIELD

53

85692000

SCREW

20

310848

CAP

21

319788

RH FLUSH VALVE PIPE

22

313209

COMPL. VAPOUR FILTER

23

13434170

COLLAR

24

330863

BRACKET

25

16286121

SCREW

26

310838

OBD AIR FILTER INLET PIPE

27

248334

SCREW

28

310826

PIPE FROM CANISTER TO LEFT VALVE.

43

254425

Flush Valve

30

310827

LH FLUSH VALVE MOUNTING BRACKET

33

254427

CLIP

34

319786

LH FLUSH VALVE PIPE

37

266156

CLIP

38

10441690

BRACKET WITH SHEATH

40

305724

BRACKET

41

310829

PIPE FROM CANISTER TO RIGHT VALVE.

42

248454

BRACKET WITH SHEATH

44

310830

RH FLUSH VALVE MOUNTING BRACKET

45

255515

PLUG

46

87805300

LH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET

47

11570024

SCREW

48

11568124

SCREW

49

291310

PLUG

51

259508

Clip

52

246723

CLIP
