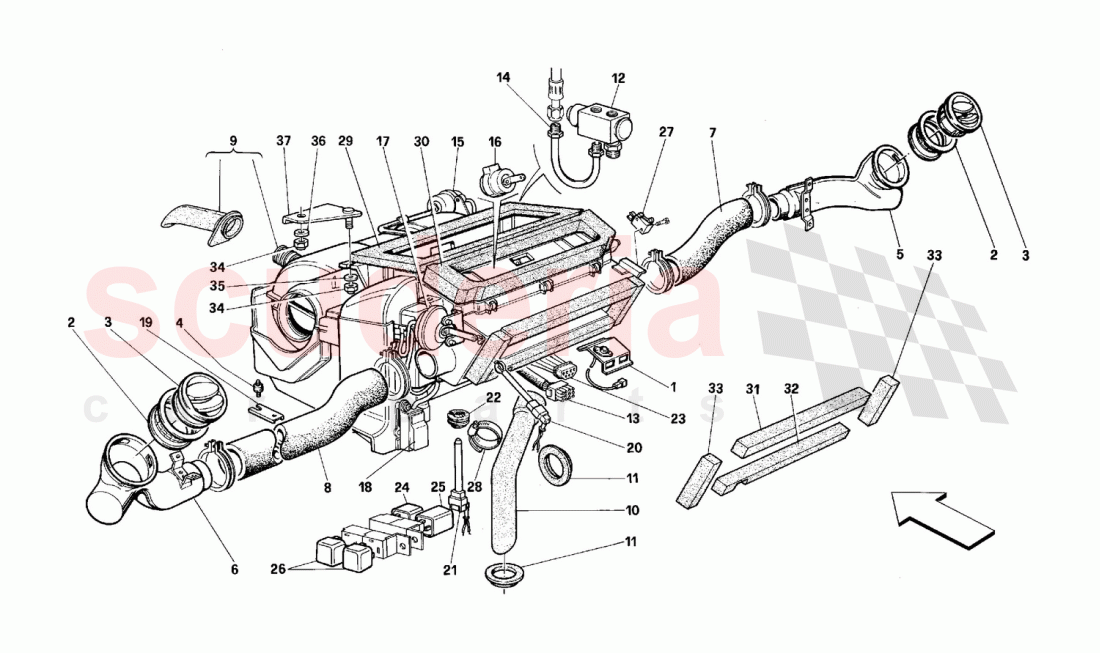

No

Kod

Parça Adı

-

63418700

R.H. support

-

154280

Air actuator to R.H. foots

-

63109000

L.H. air duct

-

63108300

R.H. air duct

-

64442300

Air conditioner assembly

-

64545800

Air conditioner assembly

1

127014

Power transistor

2

61528500

Air vent frame ring

3

61528600

Air vent

4

102947

VIBRATION DAMPER

5

63080200

R.H. air duct

6

63080300

L.H. air duct

7

61559100

R.H. union from heater air vent

8

61559200

L.H. union from heater air vent

9

154290

Front condensate drain pipe

10

61529300

Condensate drain pipe

11

61528700

Gasket

12

65518600

EXPANSION VALVE

13

154277

Cable set

14

154278

Coupling tube

15

154279

Lid actuator

16

61268000

Inner actuator

17

60930700

Defroster actuator

18

154281

Air actuator to L.H. foots

19

154289

Bracket for air conditioner fixing

20

154282

Air temperature sensor

21

154283

Cooler temperature sensor

22

154284

Gasket

23

154285

Vacuum connector

24

154287

Control relay

25

154286

Timer

26

154288

Control switch relay

27

154295

Light micro switch

28

12180090

Clamp

29

144591

Upper gasket

30

144596

Gasket

31

144592

Gasket

32

144593

Gasket

33

144594

Gasket

34

14039614

NUT

35

12648925

WASHER

36

12646201

Washer

37

63418600

L.H. support
