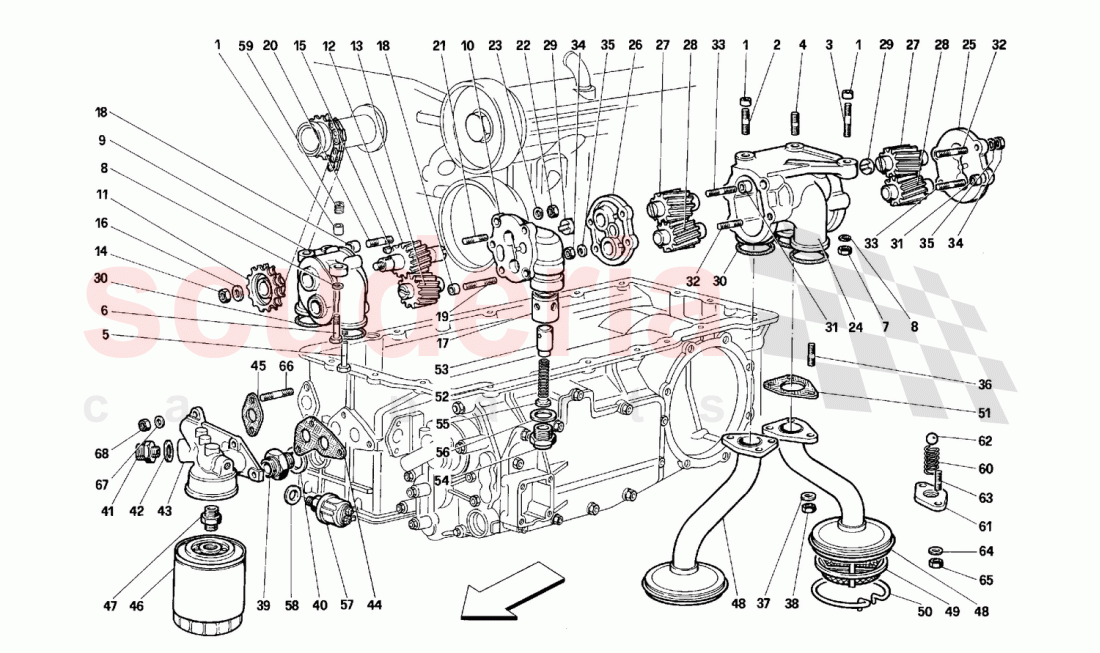

Ferrari Yedek Parça - 512 M Parts - Lubrication - Pumps and oil filter
Parça Kodları
No
Kod
Parça Adı
-
10519424
WASHER
-
11500024
Stud for cover of flywheel
1
102704
CENTRING DOWEL
2
13517224
STUD BOLT
3
13543624
STUD BOLT
4
13543324
Stud -Valid for gearbox
5
231629
SCREW
6
16043634
SCREW
7
14040711
NUT
8
11198074
WASHER
9
121059
Body of oil delivery pump
10
151269
Cover of oil delivery pump
11
121058
Oil pump control gear
12
120940
Driving gear
13
121057
Driven gear
14
121532
Nut
15
10205820
Feather key
16
12601474
WASHER
17
133989
NUT
31
102725
CENTRING DOWEL
19
11501424
STUD
20
11500524
STUD BOLT
33
11500324
STUD BOLT
34
14039614
NUT
64
11197774
Washer
24
120560
Body of oil scavenge pump
25
121029
Rear cover
26
152593
Front cover
27
121062
Driving gear
28
116056
Driven gear
29
109309
JOINT
30
123236
O.R. Gasket
32
11500124
STUD BOLT
36
13540924
STUD BOLT
65
134041
NUT
39
138149
CONNECTOR
40
144485
Gasket
41
138150
CONNECTOR
42
144487
GASKET
43
146682
Oil filter support
44
150828
Gasket
45
150829
Gasket
46
148404
Oil filter
47
124229
Union for filter
48
120917
Suction pipe for oil scavenge pump
49
100332
OIL FILTER
50
103944
Sealing ring
51
134961
Gasket
52
137614
SPRING
53
156950
PISTON
54
156143
CAP
55
13579221
WASHER
56
10257460
GASKET
57
135940
Comp. Oil Pressure Transmitter
58
10259960
GASKET
59
13525770
THREADED INSERT
60
109980
SPRING FOR BALL
61
121305
Flange
62
121306
BALL
63
13540724
STUD BOLT
66
12354524
Stud Securing Exhaust
67
12601374
Washer
