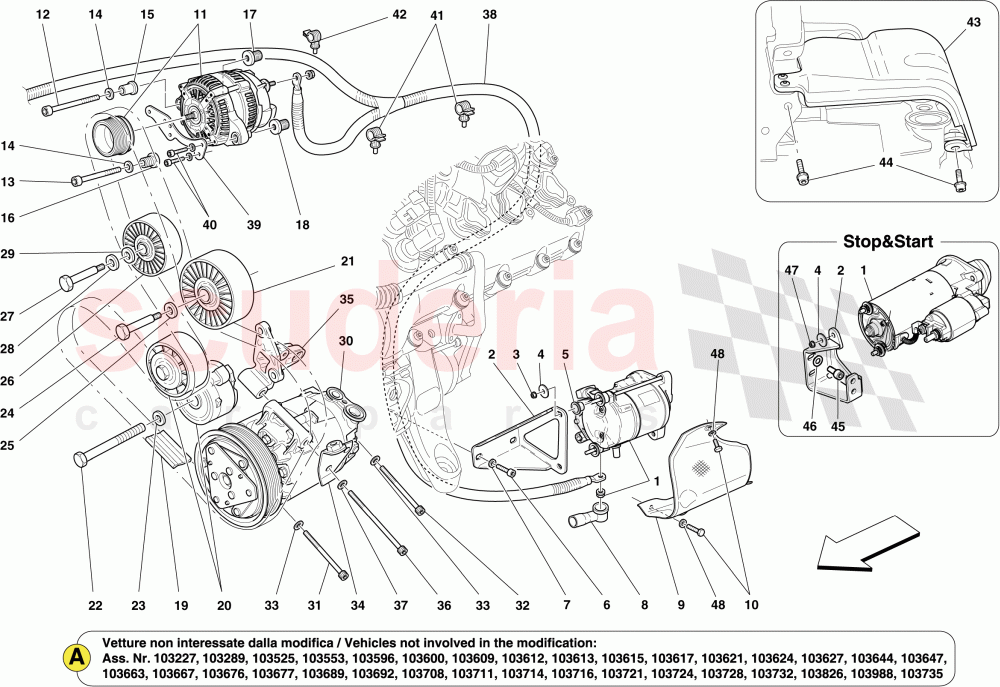

Ferrari Yedek Parça - 599 GTB Fiorano Parts - ALTERNATOR, STARTER MOTOR AND AC COMPRESSOR
Parça Kodları
No
Kod
Parça Adı
1
263832
150 A ALTERNATOR
2
16102314
NUT
3
12601374
Washer
4
154803
PROTECTIVE CAP
5
212430
UPPER BRACKET
5
224237
UPPER BRACKET
6
14307834
SCREW
51
11190574
WASHER
8
212580
THREADED PIN
9
147985
NUT
10
13578324
WASHER
11
149423
SCREW
31
11193874
Washer
13
180169
STARTER MOTOR
14
222003
STARTER MOTOR MOUNTING BRACKET
15
14302824
SCREW
17
15896470
NUT
18
12643724
WASHER
19
16044624
SCREW
20
16045424
SCREW
21
127496
Washer
22
84653800
WASHER
23
219595
ALTERNATOR BELT
23
244469
ALTERNATOR BELT
24
195992
COMPRESSOR DRIVE BELT
25
233644
BELT TENSIONER
26
268567
SCREW
28
263176
AC SYSTEM COMPRESSOR
29
14307224
SCREW
29
14302024
SCREW
30
175428
SCREW
32
141496
SHIM
33
222244
PROTECTIVE SHIELD
34
243638
BELT COVER
35
233796
BRACKET
36
231622
SCREW
36
14305834
SCREW
36
231619
SCREW
37
11197774
Washer
38
223465
STUD BOLT
39
266427
AIR DUCT
40
219643
AIR DELIVERY PIPE
41
13000790
Screw Collar
42
229851
LH SHIELD
43
172537
Complete Belt Tensioner Pulley
43
227509
BELT TENSIONER PULLEY
44
11343821
SCREW
45
11188374
WASHER
46
13449934
STUD BOLT
47
133216
NUT
48
12601474
WASHER
49
102742
Nut
50
14360124
SCREW
