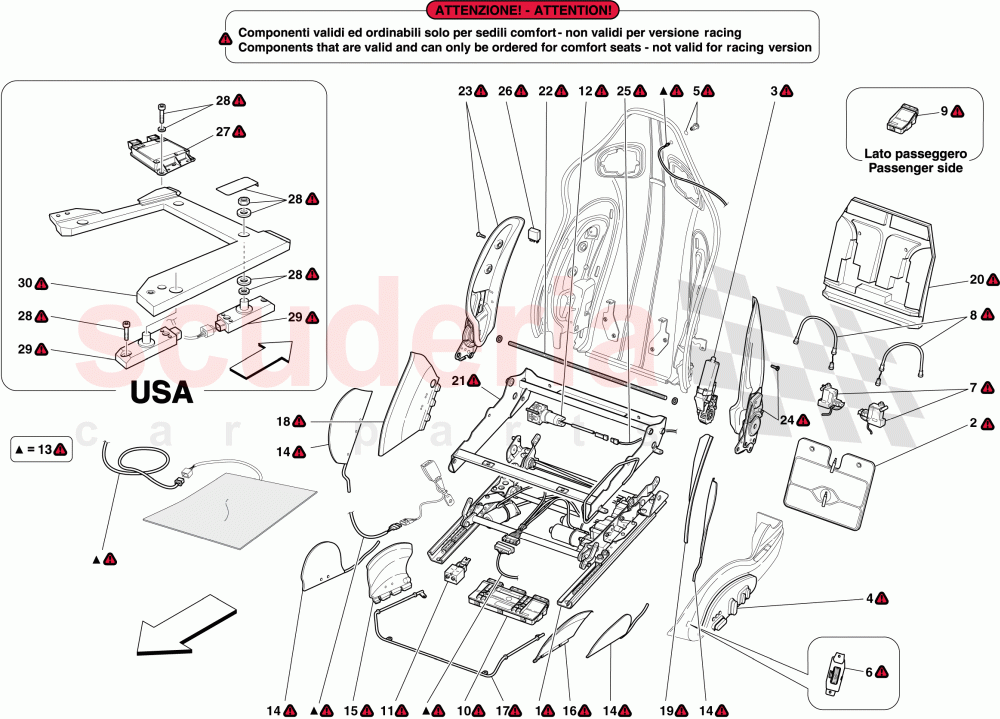

No

Kod

Parça Adı

1

65969900

LH ADJUSTMENT ASSEMBLY

1

66220500

RH ADJUSTMENT ASSEMBLY

1

66172100

LH ADJUSTMENT ASSEMBLY

1

66220600

RH ADJUSTMENT ASSEMBLY

2

69480100

LUMBAR SUPPORT MODULE

3

222975

BACKREST ADJUSTER MOTOR

3

231032

BACKREST ADJUSTER MOTOR

4

69474800

RH BUTTON PANEL

4

69474900

RH BUTTON PANEL

4

69475100

LH BUTTON PANEL

4

69475200

LH BUTTON PANEL

5

222977

BACKREST TIPPER BUTTON

6

228929

LH DIGITAL HEATING CONTROL

6

228926

RH ANALOGUE HEATING CONTROL

7

222976

Actuator

8

69476500

BOWDEN CABLES

9

230559

HEATED SEAT ECU

10

221681

ECU

11

80183900

ECU COMPLETE WITH SOLENOID VALVES

12

68646500

ELECTRO-PNEUMATIC COMPRESSOR

13

222980

SEAT WIRING HARNESSES

13

222981

SEAT WIRING HARNESSES

13

231110

SEAT WIRING HARNESSES

14

68644600

PNEUMATIC BLADDER

15

66857500

RH FLAP

16

66857200

LH FLAP

17

69474300

COMPLETE ADJUSTER HINGE

18

80999000

RH FLAP

19

80998900

LH FLAP

20

69476400

FILLER

21

66839800

RH SEAT CUSHION FRAME

21

66832900

LH SEAT CUSHION FRAME

22

69476600

BACKREST ADJUSTER SHAFT

23

82040200

RH BACKREST SIDE PANEL COMPL. WITH JOINT + SCREWS

24

82040300

LH BACKREST SIDE PANEL COMPL. WITH JOINT + SCREWS

25

68644700

PIPE KIT FOR BACKREST BLADDERS

25

68645600

PIPE KIT FOR CUSHION BLADDERS

26

231106

RELAY FOR ACTUATOR

27

203087

ECU

28

70001260

KIT OF FASTENERS FOR WEIGHT SENSOR FRAME

29

205285

SENSOR

30

264978

SENSOR CABLE

31

69013500

SENSOR MOUNTING FRAME
