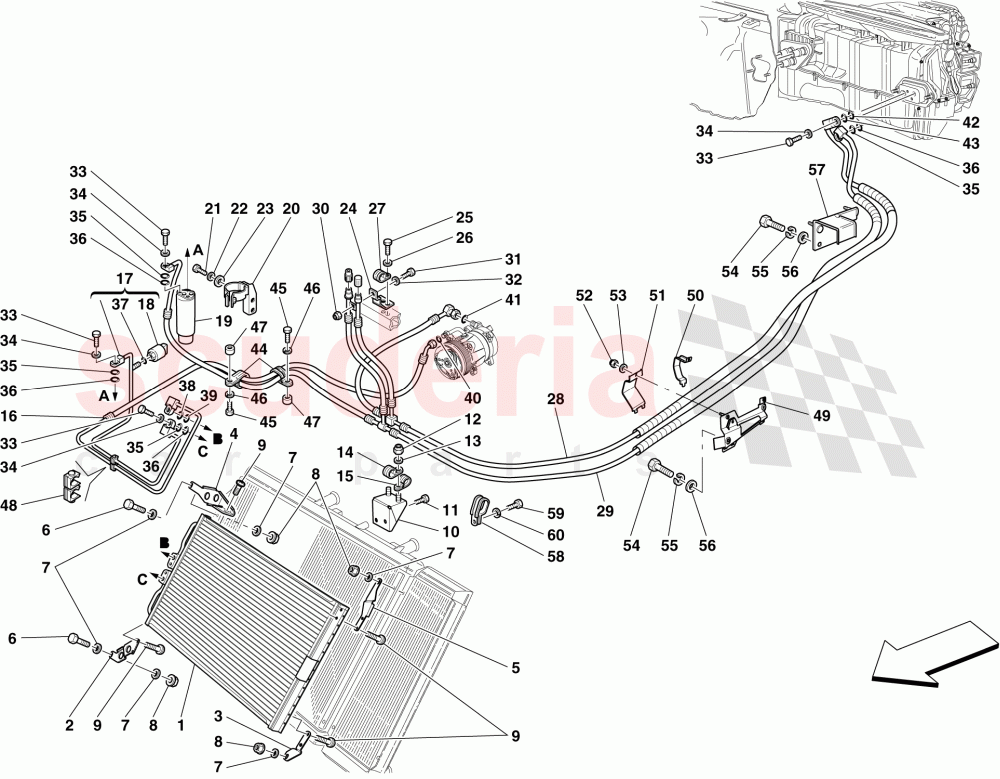

No

Kod

Parça Adı

1

199479

AC CONDENSER

2

199486

RH LOWER BRACKET

3

199488

LH LOWER BRACKET

4

199485

RH UPPER BRACKET

5

199487

LH UPPER BRACKET

31

10977824

SCREW

13

12637824

WASHER

8

14058311

NUT

9

165136

SCREW

10

67851700

TUBE FASTENING BRACKET

59

10902424

Screw

30

319201

FUEL FILLER PIPE ASSEMBLY

14

10441290

BRACKET WITH SHEATH

27

10441590

BRACKET WITH SHEATH

16

81607400

GAS PIPE FROM COMPRESSOR TO CONDENSER

17

66982800

GAS PIPE FROM CONDENSER TO FILTER

18

66374400

PRESSURE SWITCH

19

67085100

Gas Filter

20

67001100

DEHYDRATOR FILTER MOUNTING BRACKET

60

127494

Washer

56

12643724

WASHER

24

67444300

TUBE FASTENING BRACKET

26

13506704

WASHER

28

81607300

COMPRESSOR INLET PIPE

28

81607600

COMPRESSOR INLET PIPE

29

81607500

GAS PIPE FROM FILTER TO EVAPORATOR

32

127493

WASHER

33

231625

Screw

34

11193274

WASHER

35

68392000

O-RING

36

68392100

O-RING

37

66309600

O-RING

38

68392700

O-RING

39

66309700

O-RING

40

66309400

O-RING

41

66309500

O-RING

42

66309800

O-RING

43

68392800

O-RING

44

139512

BRACKET WITH SHEATH

47

65708600

BUSHING

48

145543

CLIP

49

67851300

BRACKET FASTENER PLATE

50

67851200

REAR PIPE RETAINER BRACKET

51

67851100

FRONT PIPE RETAINER BRACKET

52

14039614

NUT

53

10519424

WASHER

57

67851600

TUBE FASTENING BRACKET

58

61712500

Bracket with Sheath

58

138478

BRACKET WITH SHEATH

58

183642

BRACKET WITH SHEATH
