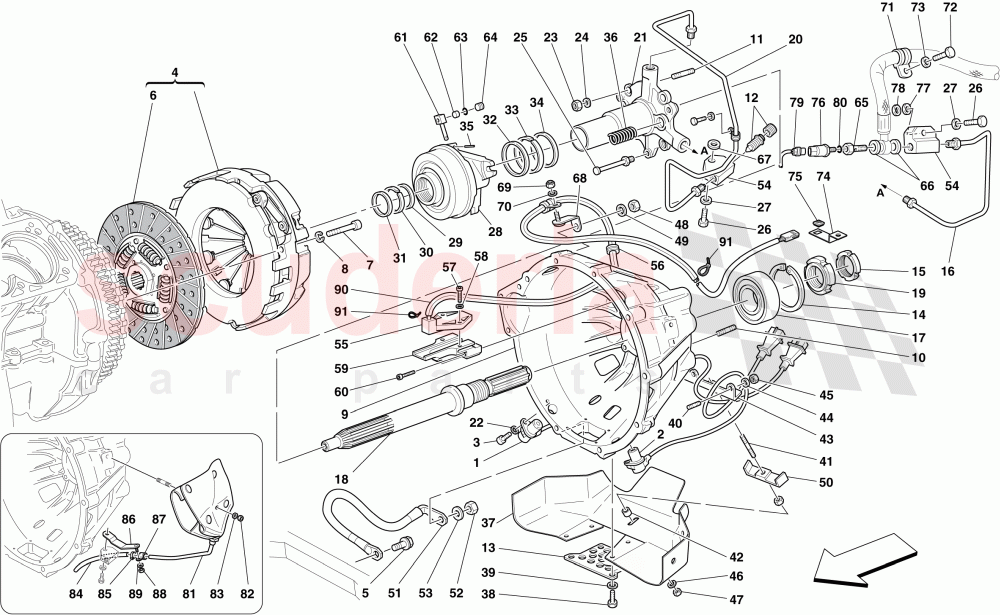

No

Kod

Parça Adı

1

189548

RH CYLINDER BANK RPM SENSOR

2

189540

LH CYLINDER BANK RPM SENSOR

3

233600

Screw

4

194775

Complete Clutch

5

16296421

SCREW

6

194776

CLUTCH PLATE

7

14305974

SCREW

8

127494

Washer

8

11194379

WASHER

9

208102

COMPLETE CLUTCH HOUSING

9

195080

CLUTCH HOUSING

10

13546334

STUD BOLT

11

13543124

STUD BOLT

12

152954

BLEED SCREW

13

144441

CLUTCH HOUSING COVER

14

144511

STOP RING

15

165576

RING NUT

16

195133

OIL DELIVERY PIPE

17

145805

BEARING

18

165573

CLUTCH SHAFT

19

165575

RING NUT

20

195134

VENT PIPE

21

170411

FLANGE FOR HYDRAULIC CONTROL

89

11197774

Washer

23

133989

NUT

24

127496

Washer

25

166650

STUD BOLT

26

231625

Screw

28

177205

Thrust Bearing

29

181838

Seal Ring

30

170416

Ring

31

181837

Scrapper Ring

32

181828

Seal Ring

33

154507

Ring

34

181836

Scrapper Ring

35

14604170

SPRING PIN

36

155207

Pre-Tightening Springs

37

229603

TIMING SENSOR SHIELD

38

10977824

SCREW

39

12601174

Washer

40

13540824

STUD BOLT

41

155177

STUD BOLT

42

205046

SHIM

43

200137

MOUNTING

73

12639724

Washer

88

14039614

NUT

53

11199274

WASHER

52

15896470

NUT

48

14040711

NUT

49

12601374

Washer

50

146654

MOUNTING

51

202266

GROUND BRAID

54

240774

CONNECTOR

55

244801

COMPLETE SENSOR KIT

55

243784

Complete Sensor Kit

56

10398480

CABLE GROMMET

57

14303224

SCREW

58

10519224

Washer

59

235937

SENSOR MOUNT

60

14304424

SCREW

61

166676

PIN

62

201935

Complete Sensor Kit

63

165658

O-Ring

64

167802

CAP

65

171454

PIPE UNION

65

199410

PIPE UNION

66

10261060

Gasket

77

12647801

WASHER

68

149694

PIPE FASTENER BRACKET

71

10441590

BRACKET WITH SHEATH

72

10977524

SCREW

74

214436

CONNECTOR FASTENER BRACKET

75

187161

FASTENER CLIP

76

203294

PRESSURE SENSOR

78

12646601 | 12647624

WASHER

79

221379

PRESSURE SENSOR WIRING HARNESS

80

140605

GASKET

81

234059

SHIELD

83

12646604

WASHER

84

234061

RUBBER PIPE

85

13431570

COLLAR FOR HOSE UNION

86

234100

BRACKET

87

10418101

BRACKET

90

236976

HEAT SHIELD SHEATH

91

206739

CLAMP
