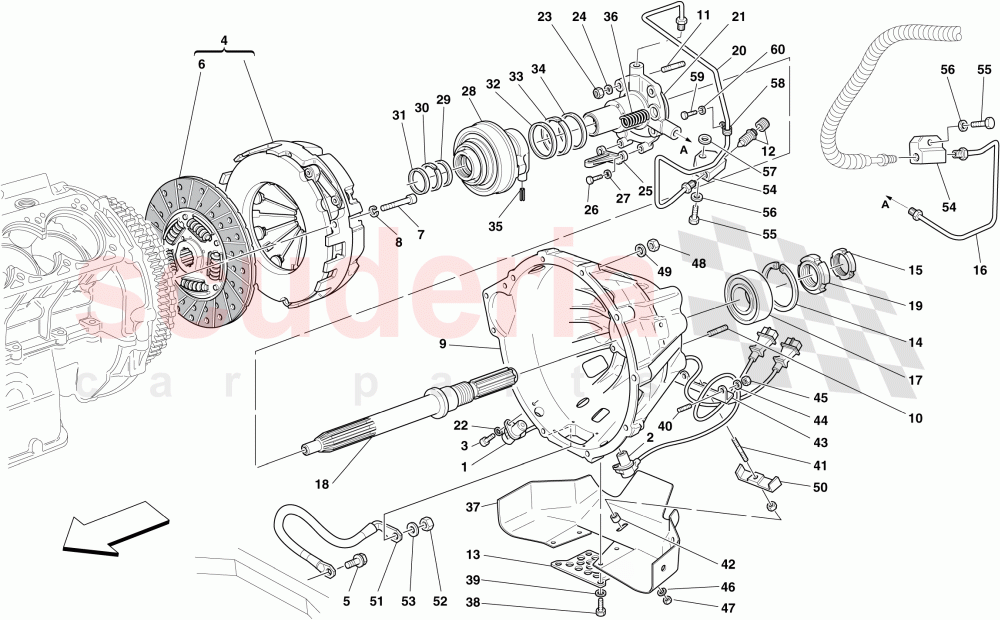

Ferrari Yedek Parça - 612 Scaglietti Parts - CLUTCH AND CONTROLS -Not for F1-
Parça Kodları
No
Kod
Parça Adı
1
189548
RH CYLINDER BANK RPM SENSOR
2
189540
LH CYLINDER BANK RPM SENSOR
3
233600
Screw
4
194775
Complete Clutch
5
16296421
SCREW
6
194776
CLUTCH PLATE
7
14305974
SCREW
8
127494
Washer
8
11194379
WASHER
9
208102
COMPLETE CLUTCH HOUSING
9
195080
CLUTCH HOUSING
10
13546334
STUD BOLT
11
13543124
STUD BOLT
12
152954
BLEED SCREW
13
144441
CLUTCH HOUSING COVER
14
144511
STOP RING
15
165576
RING NUT
16
195133
OIL DELIVERY PIPE
17
145805
BEARING
18
165573
CLUTCH SHAFT
19
165575
RING NUT
20
195134
VENT PIPE
21
169137
FLANGE WITH SLEEVE
56
11197774
Washer
23
133989
NUT
24
127496
Washer
25
151693
PLATE
59
10977524
SCREW
27
127493
WASHER
28
177201
Thrust Bearing
29
154505
SEAL RING
30
154504
RING
31
154550
SCRAPER RING
32
154508
Seal Ring
33
154507
Ring
34
154551
Scrapper Ring
35
13904970
SPRING PIN
36
155207
Pre-Tightening Springs
37
229603
TIMING SENSOR SHIELD
38
10977824
SCREW
39
12601174
Washer
40
13540824
STUD BOLT
41
155177
STUD BOLT
42
205046
SHIM
43
200137
MOUNTING
60
12639724
Washer
45
14039614
NUT
53
11199274
WASHER
52
15896470
NUT
48
14040711
NUT
49
12601374
Washer
50
200138
MOUNTING
51
202266
GROUND BRAID
54
240774
CONNECTOR
55
231625
Screw
57
12647801
WASHER
58
10440990
BRACKET WITH SHEATH
