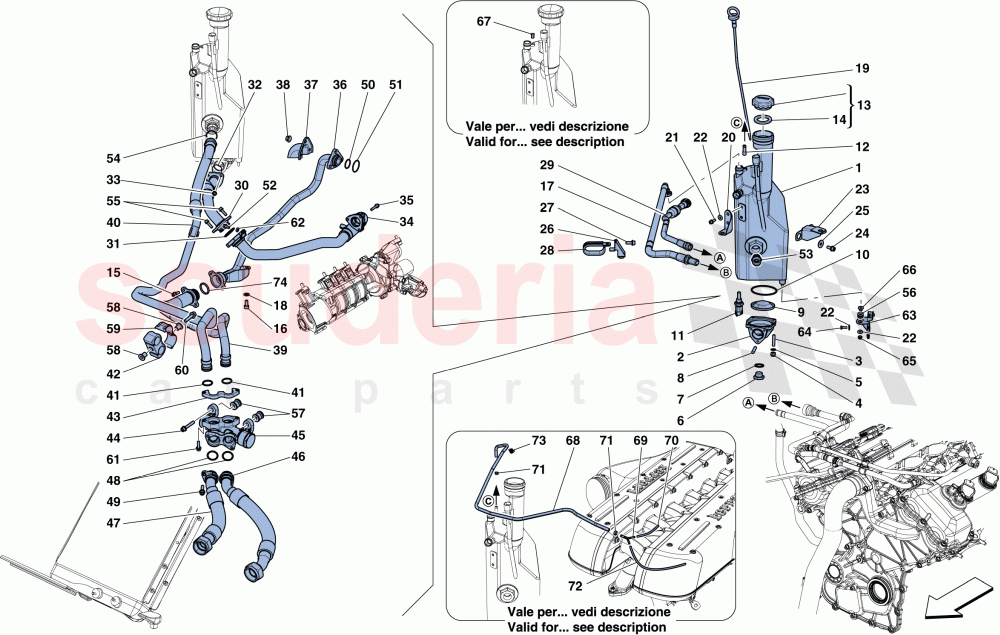

Ferrari Yedek Parça - 612 Scaglietti Parts - LUBRICATION SYSTEM - TANK
Parça Kodları
No
Kod
Parça Adı
1
196276
OIL TANK
2
180320
COPMLETE TANK PLUG
3
180585
GASKET FOR PLUG
4
199105
DIPSTICK
5
233118
O-RING
6
196978
UPPER BRACKET
7
10977524
SCREW
18
12643724
WASHER
9
107979
STOP CAP
10
107978
VIBRATION DAMPER
11
107980
SHIM
12
103549
Cable Grommet
13
149707
SHIM
14
14059214
NUT
16
194451
INFERIOR BRACKET
17
10902424
Screw
39
127494
Washer
20
180137
Temperature Sensor
21
153722
GASKET
22
151684
OIL PICKUP
23
111352
THREADED INSERT
24
293107
THREADED PLUG
25
10261460
Gasket
26
100332
OIL FILTER
27
125521
O-RING
28
11500524
STUD BOLT
29
11197774
Washer
30
14039614
NUT
31
138149
CONNECTOR
32
144485
Gasket
33
198403
DELIVERY PIPE FROM TANK TO PUMP
34
138150
CONNECTOR
35
144487
GASKET
36
199509
RETURN PIPE FROM RADIATOR TO TANK
37
291225
BRACKET WITH SHEATH
38
10902224
SCREW
40
202152
BELLOW
41
202151
BELLOW
42
198404
OIL PIPE FROM ENGINE TO RADIATOR
