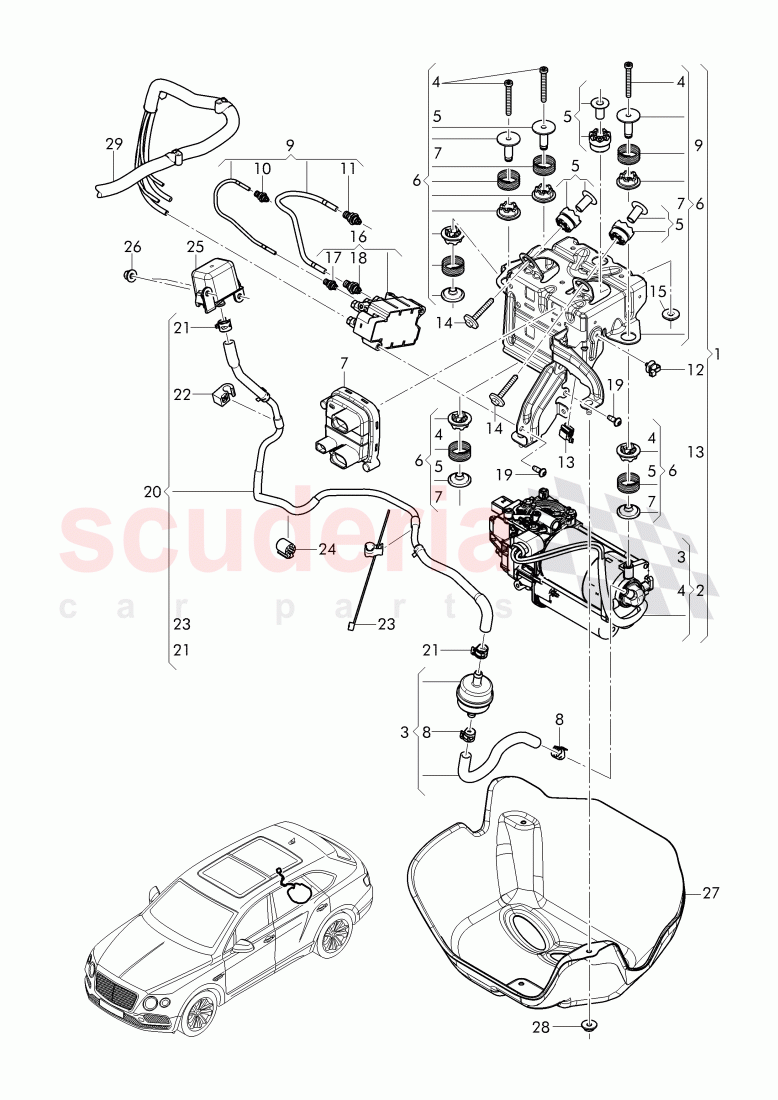

No

Kod

Parça Adı

1

4M0616005H

air supply unit, D - 26.09.2016>>

3

4M0 698 030

repair kit, air cleaner

5

4H0 698 649

repair kit, rubber bush

6

4M0 698 999 A

repair kit, Bracket for, air supply unit, D - 26.09.2016>>

21

N90686701

spring clip, Only in combination with:, Only in combination with:

9

4M0 616 703

repair set for air, channel

17

4B0 616 751

Connection piece

18

7L0 616 758

Connection piece

12

4F0 971 850 A

tie wrap

13

3D0971830F

bracket for connector housing, male blade terminal housing, f. hole/sheet metal thickness:

14

N 912 070 01

bolt, hex. hd. (combi.)

28

N90887703

Hexagon flange nut,, self-locking

16

4M0 616 013 A

valve unit

19

N 107 214 01

tapping screw, fill. hd.

20

4M0 616 091 G

intake hose, as required use:

22

4W0 612 797

clip

23

6Q0971838C

tie wrap with bracket, for weld pin:

24

8E0 130 722 D

ring

25

4M0 616 010 C

muffler - exhaust

26

N 904 953 01

hex. nut

27

4M0 616 105 E

shield, air supply unit
