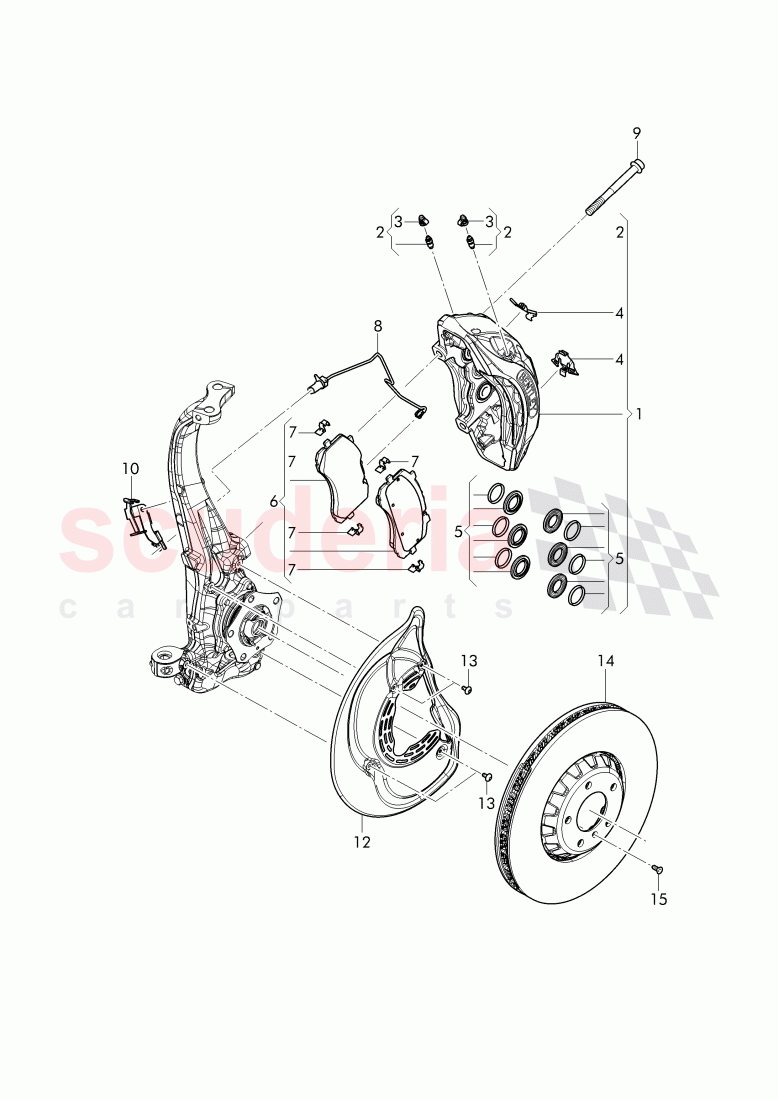

No

Kod

Parça Adı

1

36A 615 403

piston housing with, actuator motor

1

36A 615 404

piston housing with, actuator motor

3

36A 698 671

set of seals for, piston housing

4

1K0615273C

breather valve

5

4H0 611 483

dust cap

6

4M0 998 281

motor for adjustment for brake, cal. housing w. attachment p.

7

4E0615137

o-ring

8

N 102 855 06

socket head bolt with inner, hex round head

9

WHT 003 250

bolt, hex. hd. with shoulder,, self-locking

10

36A 615 425

caliper carrier with, pad retaining pin

10

36A 615 426

caliper carrier with, pad retaining pin

11

7N0 698 647 A

1 set of boots, for guide pins

12

N 911 268 01

self-locking screw

13

4M0 698 451 C

1 set of brake pads for disc, brakes, also use:

14

8W0615121E

sender wire, (pad wear indicator)

15

4M0 615 611 A

splash shield for brake disc

15

4M0 615 612 A

splash shield for brake disc

16

N 107 414 02

Hexagon socket flat, head bolt

17

4M0 615 601 N

brake disc (ventilated), D - 31.10.2016>>

18

N10648301

hex socket countersunk bolt

19

G 000 650

lubricating paste

20

G 052 150 A2

lithium-grease
