No

Kod

Parça Adı

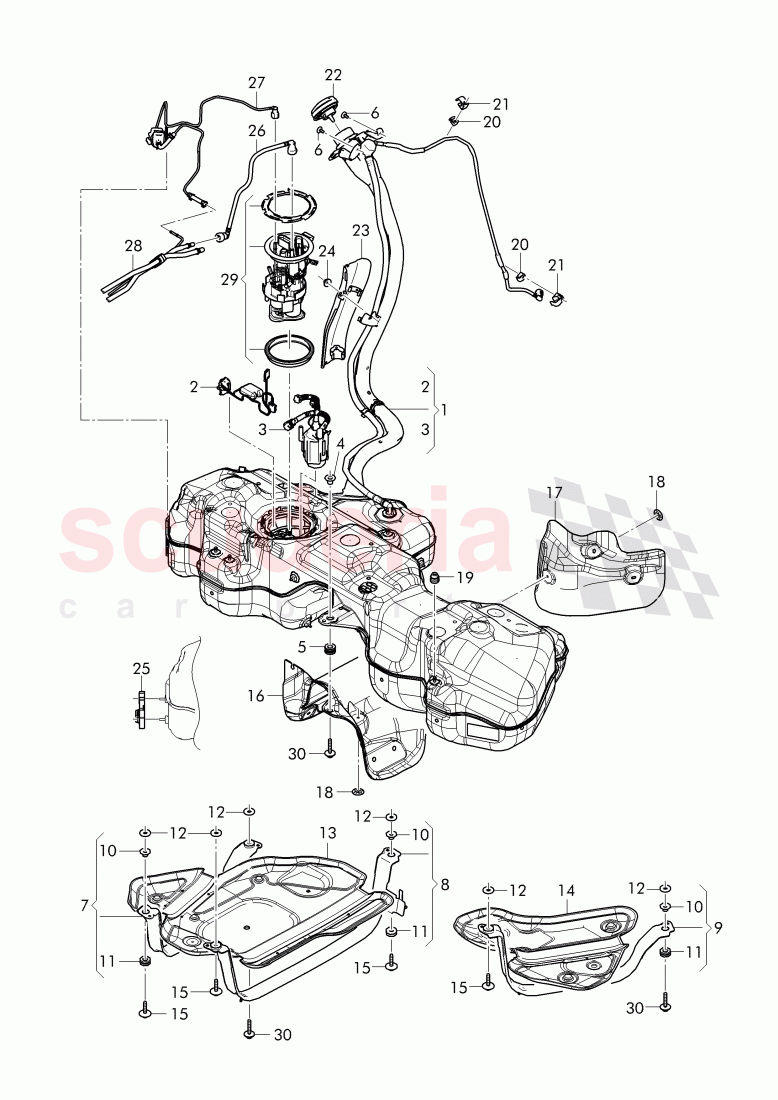

1

36A 201 060 C

fuel tank with fuel gauge, sender

3

N 912 473 01

Int. serration flange screw, (combi-instrument)

4

8K0 201 693 D

bushing

5

8K0 201 840 D

rubber isolator

6

N 910 423 01

Oval hexagon socket head bolt

7

4M0 201 392 C

strap, only to be used with:, see workshop manual

8

4M0 201 392 F

strap, only to be used with:, see workshop manual

9

4M0 201 391 C

strap, only to be used with:, see workshop manual

10

8K0 201 693 C

bushing

11

8K0 201 840 C

rubber isolator

12

36A 201 958

spacer, see workshop manual

13

36A 201 980

protective cover

14

36A 201 979

protective cover

15

N 912 372 01

bolt, hex. hd. (combi.)

16

4M0 201 308 H

heatshield

17

4M0 201 308 G

heatshield

18

N 903 350 06

clamping washer, D - 07.03.2016>>

19

8K0 201 274 B

sound absorber

22

36A201550P

cap with retaining strap for, fuel tank

22

36A 201 550 G

cap with retaining strap for, fuel tank

23

4M0 201 227 A

fuel line

24

4M0 201 220 D

fuel line

26

N 907 579 01

shouldered hex. nut, alternatively, you can use:

27

4M0201115A

locating ring

28

4H0 201 112 A

insert, Misfuelling protection
