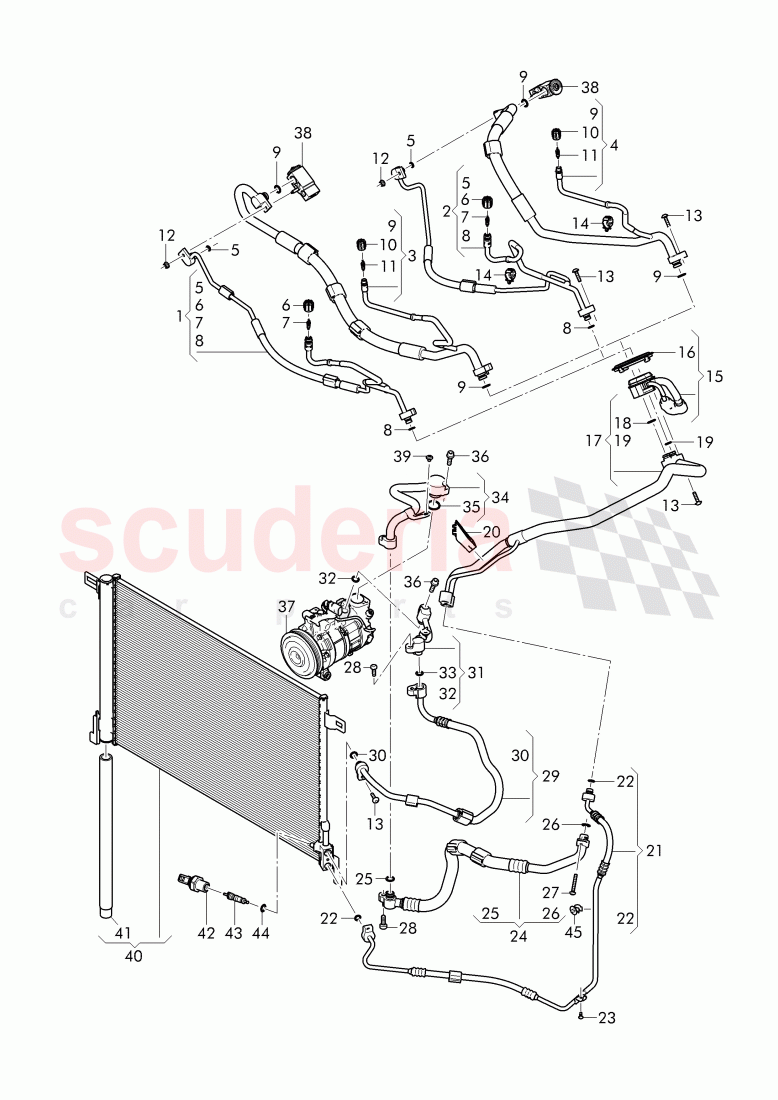

No

Kod

Parça Adı

1

4M2 820 720 K

refrigerant line, for refrigerant:

1

4M2 816 720 M

refrigerant line, for refrigerant:

2

4M1 820 720 K

refrigerant line, for refrigerant:

2

4M1 816 720 R

refrigerant line, for refrigerant:

3

4M2 820 740 K

refrigerant line, for refrigerant:

3

4M2 816 740

refrigerant line, for refrigerant:

4

4M1 820 740 K

refrigerant line, for refrigerant:

4

4M1 816 740 N

refrigerant line, for refrigerant:

5

4D0 260 749 B

seal ring

6

3C0 820 581

protective cap, for refrigerant:

6

5Q0 816 581

protective cap, for refrigerant:

11

8E0820855

valve insert

22

3D0260749C

seal ring

26

4E0260749B

seal ring

10

3C0 820 231

protective cap, for refrigerant:

10

5Q0 816 231

protective cap, for refrigerant:

12

N90215805

shouldered hex. nut, Discont./New add.+FULU calc.

13

N 106 321 02

Oval hexagon socket head bolt

14

8K0 260 759 H

bracket

15

4M0 820 339 G

basic plate

16

4M0 820 126 A

double grommet

17

4M0 816 738 N

refrigerant tube

18

WHT 004 858

seal ring

20

4M0 820 769 J

bracket

21

36A 816 741 A

refrigerant line

23

N 104 056 04

Oval hexagon socket head bolt, only for:, D - 23.10.2017>>

24

4M0 816 743 BS

refrigerant line

25

8E0260749C

seal ring

27

N 910 972 01

round hd. screw

28

N10414402

bolt, with hex. socket, hd., D - 11.12.2006>> - 21.03.2011

29

4M0 816 721 BN

refrigerant line

30

4E0260749A

seal ring

32

4M0 816 421 C

refrigerant condenser with, receiver drier

33

4M0 298 403

Drier insert with mounting, parts

34

4H0 959 126 B

pressure sensor, D - 29.06.2015>>

35

8A0820855AA

valve

36

7H0 820 749

O-Ring
