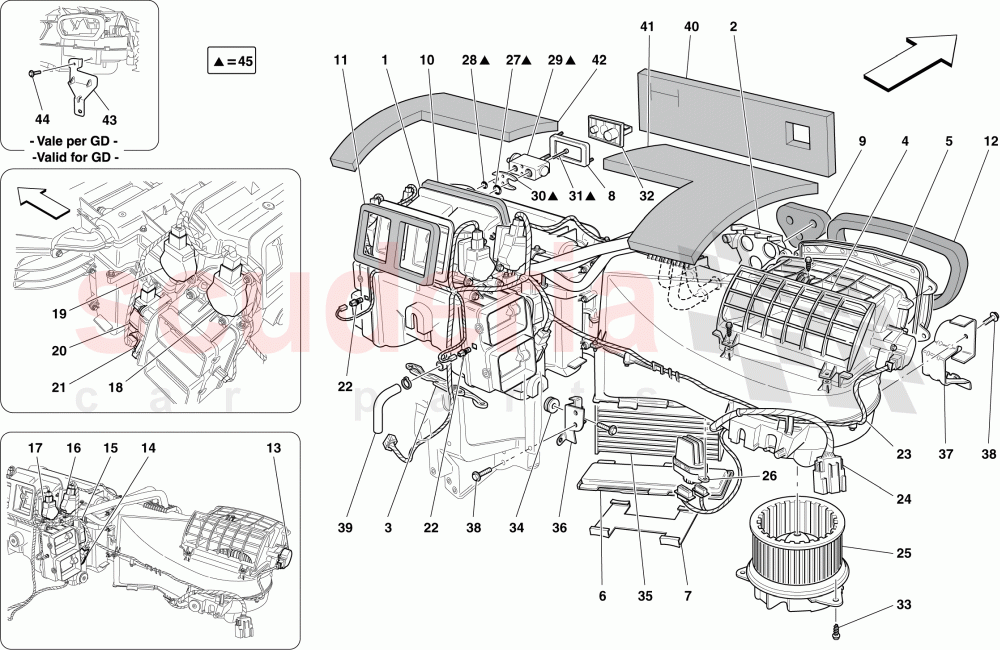

No

Kod

Parça Adı

1

83357800

COMPL. AC UNIT

1

83357700

COMPL. AC UNIT

2

82045500

PIPE RETAINER

3

82045600

CAP

4

82045700

GRILLE

5

82045800

FLANGE

6

68390600

FILTER COVER

7

68390700

COVER FASTENER

8

82046200

GASKET

9

82046400

WATER PIPE FILLER FOAM

10

82046600

DEFROSTER DUCT FILLER FOAM

11

82046800

FRONT FILLER FOAM

12

82046900

INTAKE FILLER FOAM

13

82047200

ACTUATOR

13

82048300

LIN BUS RECIRCULATION ACTUATOR

14

82047300

ACTUATOR

15

82047400

ACTUATOR

16

82047500

ACTUATOR

17

82047600

ACTUATOR

18

82047700

ACTUATOR

19

82047900

ACTUATOR

20

82048100

ACTUATOR

21

82048200

ACTUATOR

22

83749200

EVAPORATOR SENSOR

22

68390100

AIR SENSOR

23

84240800

WIRING HARNESS

23

84240900

WIRING HARNESS

24

82048600

MAIN CABLE

25

82048900

FAN

25

82048800

FAN

26

82049000

LPM2

45

82073600

TXV SERVICE KIT

32

82049600

CAP

33

62771900

SCREW

34

68389800

RUBBER PAD

35

82035700

Anti-Pollen Filter

36

80518900

LH BRACKET

36

80637300

RH BRACKET

37

80519000

SHIELD BRACKET

44

16286024

Screw

39

81022500

PIPE FOR WATER OUTLET

40

82332100

CENTRAL INSULATION

40

81341200

CENTRAL INSULATION

41

82332300

R.H. INSULATION

41

81341400

R.H. INSULATION

42

82332200

L.H. INSULATION

42

85154300

LH DASHBOARD INSULATION

43

80904800

AC UNIT BRACKET ON FIREWALL
