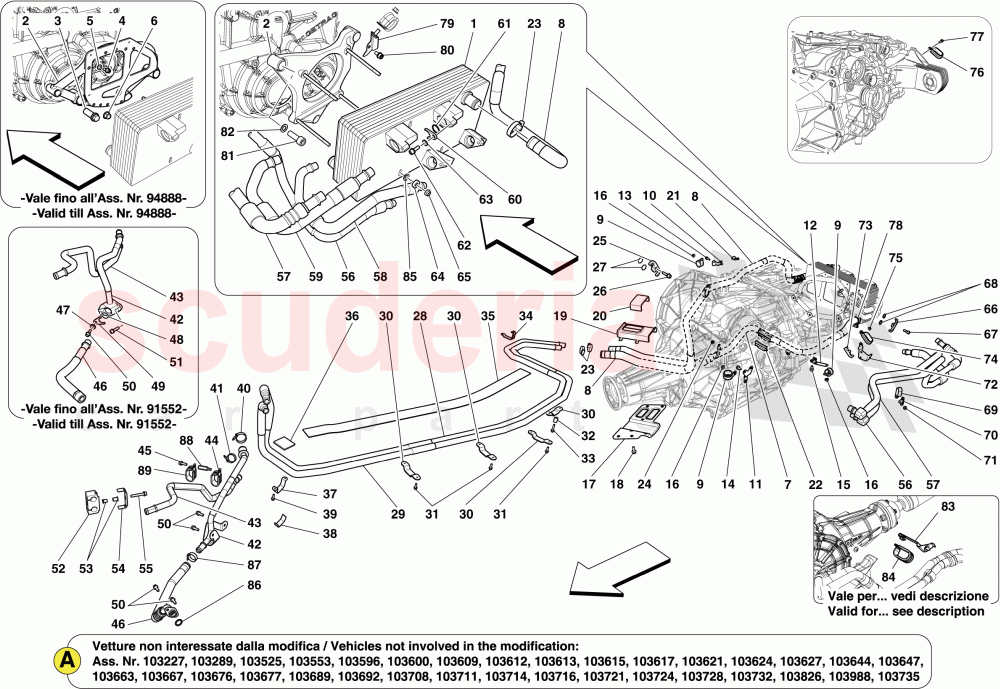

No

Kod

Parça Adı

1

326420

OIL HEAT EXCHANGER

2

318265

GEARBOX SINGLE OIL HEAT EXCHANGER MOUNT

2

264722

OIL HEAT EXCHANGER MOUNTING FRAME

3

264835

SCREW

4

14082210

SCREW

5

12643724

WASHER

6

14054511

NUT

7

288420

WATER DELIVERY PIPE ON GEARBOX

7

261127

WATER DELIVERY PIPE ON GEARBOX

8

288421

WATER RETURN PIPE ON GEARBOX

8

261126

WATER RETURN PIPE ON GEARBOX

9

291225

BRACKET WITH SHEATH

10

262039

PIPE BRACKET

11

262044

PIPE BRACKET

12

262459

PIPE BRACKET

77

248334

SCREW

45

16285924

SCREW

15

231627

SCREW

75

14039614

NUT

17

262050

LOWER PIPE RETAINER BRACKET

18

13839224

SCREW

19

262049

UPPER PIPE RETAINER BRACKET

20

262051

SPONGE

21

264811

THICKNESS

22

264812

THICKNESS

78

262111

Collar

23

13000590

SCREW COLLAR

25

253463

FORK WITH CAPTIVE SCREW

26

84317700

SCREW

68

254644

O-RING

28

280177

UNDERBODY WATER DELIVERY PIPE

28

270629

UNDERBODY WATER DELIVERY PIPE

29

279359

UNDERBODY WATER RETURN PIPE

29

270630

UNDERBODY WATER RETURN PIPE

30

275903

UNDERBODY PIPE FASTENER BRACKET

30

262045

UNDERBODY PIPE RETAINER BRACKET

39

231618

Screw

32

262075

SHIM

33

231622

SCREW

34

262053

PILLORY BLOCK RETAINER ON CLIP

35

262765

PROTECTIVE SPONGE

36

266246

PROTECTIVE SPONGE

37

262056

OMEGA PIPE RETAINER CLIP

38

263561

SPONGE

87

262109

COLLAR

40

13000490

Screw Collar

42

282837

RIGID WATER DELIVERY PIPE

42

263885

RIGID WATER DELIVERY PIPE

42

266247

RIGID WATER DELIVERY PIPE

43

282809

WATER RETURN PIPE

43

261135

WATER RETURN TUBE

89

257980

BRACKET WITH SHEATH

46

266394

WATER DELIVERY HOSE

46

279390

FLEXIBLE WATER DELIVERY HOSE

46

263886

WATER DELIVERY HOSE

63

13579221

WASHER

60

262827

PIPE RETAINER FORK

62

231617

Screw

51

231619

SCREW

52

243396

FRONT RUBBER PILLORY BLOCK

53

243399

BUSHING

54

243398

PLATE

55

231625

Screw

56

334984

ATF FLUID DELIVERY PIPE

56

334873

ATF FLUID DELIVERY PIPE

57

275514

ATF FLUID RETURN PIPE

57

262813

ATF FLUID RETURN PIPE

58

334875

GL-5 OIL DELIVERY PIPE

59

334874

GL-5 OIL RETURN PIPE

64

13604015

SHIM

65

14058421

NUT

66

261824

PIPE RETAINER FORK

67

248471

SCREW

69

275752

BRACKET

69

265771

BRACKET

70

265725

BRACKET

72

263583

BRACKET

73

264810

SHIM

76

61712500

Bracket with Sheath

79

268359

BRACKET

80

233600

Screw

81

14307534

SCREW

82

12648321

WASHER

83

279397

BRACKET

84

248454

BRACKET WITH SHEATH

85

14498801

WASHER

86

264447

TOROID RING

88

182363

STUD BOLT
