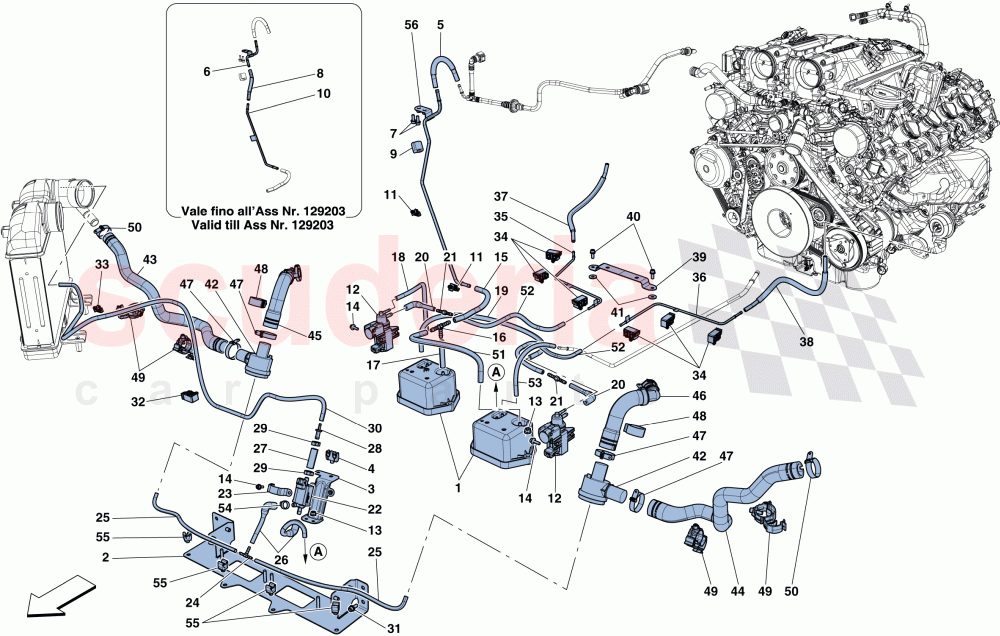

No

Kod

Parça Adı

1

306401

VACUUM ACCUMULATOR TANK

2

308286

BRACKET

3

308285

LOWER SOLENOID VALVE MOUNTING BRACKET

4

198259

CLIP

5

303639

PIPE COMPL. WITH SHEATH

6

303642

RIGID PIPE

40

248334

SCREW

8

303640

PIPE COMPL. WITH SHEATH

9

278889

RUBBER RING

10

303289

PIPE BETWEEN PRESSURE REDUCERS AND TANKS

11

303873

CLIP

12

287732

MODULATOR SOLENOID VALVE

13

14039614

NUT

14

85833700

Screw

15

300549

RUBBER PIPE

16

305769

T UNION

17

300548

RUBBER PIPE

18

169456

R.H. PIPE VALVE TUBE

19

124346

RUBBER PIPE

20

295677

RUBBER PIPE

21

307537

PLASTIC TWO WAY CONNECTOR

22

306956

SOLENOID VALVE

23

308805

SOLENOID VALVE MOUNTING BRACKET

24

257691

THREE-WAY UNION

25

249610

RUBBER PIPE

26

294268

RUBBER PIPE

27

307534

RUBBER PIPE

28

178369

CONNECTOR

54

13432070

Collar for Hose Union

30

308804

RUBBER PIPE

32

308812

CLIP

33

84093700

CLIP

34

312163

CLIP

35

300307

RH WASTEGATE REGULATOR PIPE

36

300309

LH WASTEGATE REGULATOR PIPE

37

304422

PIPE COMPL. WITH SHEATH

38

304423

PIPE COMPL. WITH SHEATH

39

302172

RIGID PIPE SHIELD BRACKET

41

10523424

WASHER

42

306403

KAYSER DUMP VALVE

43

308173

PIPE FROM INTERCOOLER TO RH DUMP VALVE

44

308170

PIPE FROM INTERCOOLER TO LH DUMP VALVE

45

308175

PIPE FROM DUMP VALVE TO RH INTAKE PIPE

45

310925

PIPE FROM DUMP VALVE TO RH INTAKE PIPE

46

308171

PIPE FROM DUMP VALVE TO LH INTAKE PIPE

46

310923

PIPE FROM DUMP VALVE TO LH INTAKE PIPE

50

262111

Collar

48

315352

CLIP

49

270085

CLIP

51

299144

RUBBER PIPE

52

308860

RUBBER PIPE

53

277569

COMPL. BREATHER PIPE

55

199589

CLIP

56

318000

RIGID PIPE
