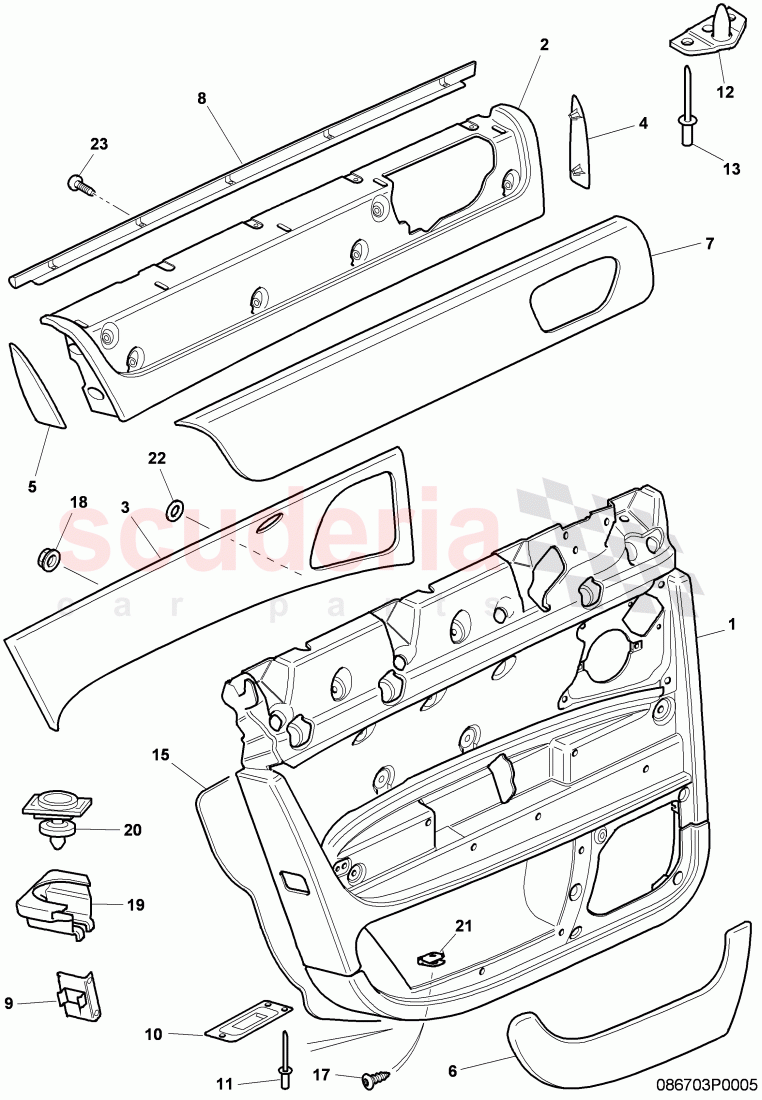

No

Kod

Parça Adı

1

3W5867107A

door trim panels

1

3W5867108A

door trim panels

2

3W5867033

side panel trim housing (centre)

2

3W5867034

side panel trim housing (centre)

3

3W4868109B

insert piece door

3

3W4868110B

insert piece door

4

3W5867347

housing (centre) cover panel

4

3W5867348

housing (centre) cover panel

5

3W5853113

cover panel housing (centre)

5

3W5853114

cover panel housing (centre)

6

3W5857921

side trim panels stowage compartment

6

3W5857922

side trim panels stowage compartment

7

3W5 868 085 E

door trim panel, upper part, F >> 3W-7-042 394

7

3W5 868 086 E

door trim panel, upper part, F >> 3W-7-042 394

8

3W5867203B

cover panel housing (centre)

8

3W5867204B

cover panel housing (centre)

9

3W4868093

bracket, door

10

3W3867191B

bracket, door

11

N91083301

pop-rivet, only to be used with:

12

3W0 868 467 C

Locating pin

13

N90994201

pop rivet

15

3W5867831C

sound deadening plate, door

15

3W5867832C

sound deadening plate, door

17

N90698601

Hexagon socket head panel bolt, F >> 3W-D-082 508, F >> ZA-D-082 508

18

WHT000678

lock nut, alternatively, you can use:

19

3W5867899

carrier mounting clip

20

3W5867900

mounting clip

21

N90698701

speed nut, included in position:

23

N10675501

screw, cheese hd.
