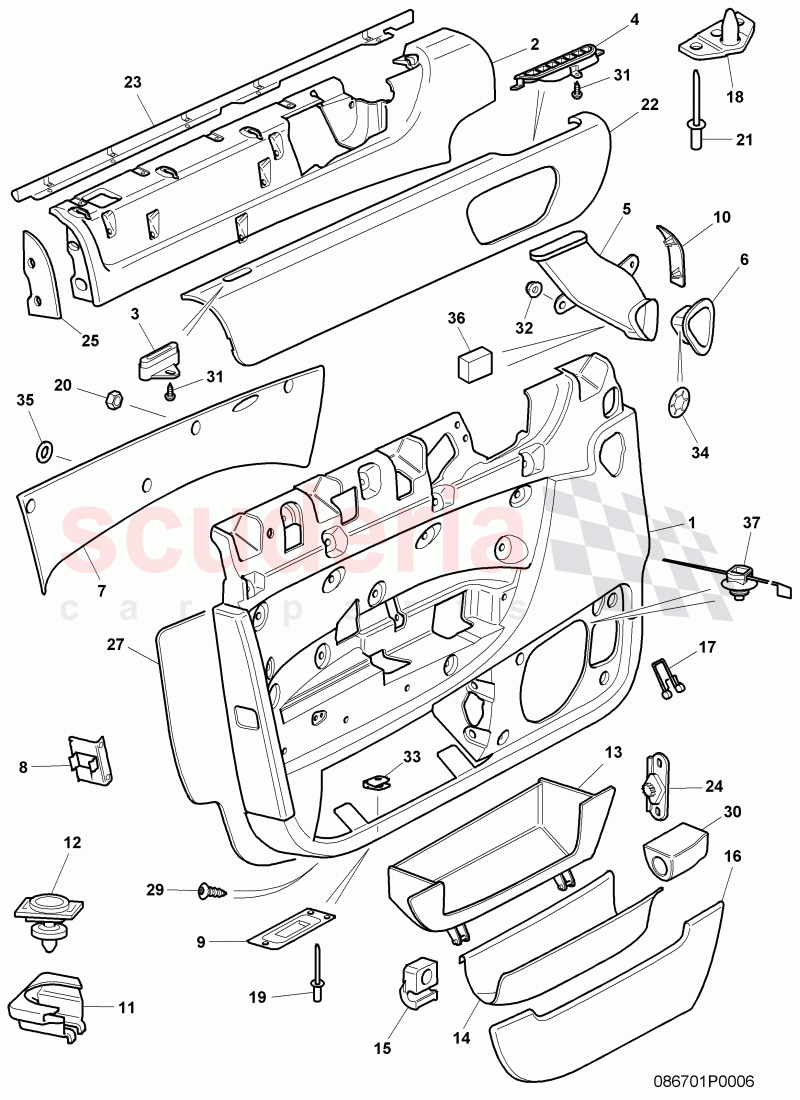

No

Kod

Parça Adı

1

3W4867015

door trim panels

1

3W4867016

door trim panels

2

3W4867101

housing (centre)

2

3W4867102

housing (centre)

3

3W5867677C

holder - light emitting diode

4

3W5819695B

grille door panel trim D - >> 13.06.2005

4

3W5819696B

grille door panel trim D - >> 13.06.2005

4

3W5819695D

grille, door panel, only to be used with:

4

3W5819696D

grille, door panel, only to be used with:

5

3W5819869A

shaped part air guide channel

5

3W5819870A

shaped part air guide channel

6

3W0 868 463 E

grille, door panel, D - 20.04.2015>>

7

3W4867317

insert piece door

7

3W4867318

insert piece door

7

3W4867317A

insert, door, D - MJ 2007>>

7

3W4867318A

insert, door, D - MJ 2007>>

8

3W4868093

bracket, door

9

3W3867191B

bracket, door

10

3W4867425

housing (centre) cover panel

10

3W4867426

housing (centre) cover panel

11

3W5867899

carrier mounting clip

12

3W5867900

mounting clip

13

3W4867131

door pocket

13

3W4867132

door pocket

14

3W4867413

door pocket

14

3W4867414

door pocket

15

3W5867045A

shaped part pocket

16

3W4867085

side trim panels

16

3W4867086

side trim panels

17

3W5868673A

spring washer

18

3W0 868 467 C

Locating pin

19

N91083301

pop-rivet, only to be used with:

20

WHT000678

lock nut, alternatively, you can use:

21

N90994201

pop rivet

22

3W5 868 143 D

door trim panel, upper part, only to be used with:

22

3W5868143E

door trim panel, upper part, only to be used with:, F >> 3W-7-042 395

22

3W5 868 144 D

door trim panel, upper part, only to be used with:

22

3W5868144E

door trim panel, upper part, only to be used with:, F >> 3W-7-042 395

22

3W5868143F

door trim panel, upper part, F 3W-7-042 396>>

22

3W5868144F

door trim panel, upper part, F 3W-7-042 396>>

23

3W5853995B

cover housing (centre)

23

3W5853996B

cover housing (centre)

24

3W5868193B

bracket for door trim panel

24

3W5868194B

bracket for door trim panel

25

3W4867425A

cap

25

3W4867426A

cap

27

3W5867831

sound deadening plate, door

27

3W5867832

sound deadening plate, door

29

N90698601

Hexagon socket head panel bolt, F >> 3W-D-082 508, F >> ZA-D-082 508

30

3W5837735A

torch bracket

30

3W5837736A

torch bracket

31

N91052001

round hd. screw

32

N10632901

hex. nut with washer

33

N90698701

speed nut, included in position:

34

3W0868517

locking washer

36

3W0867626

plastic foam, sound absorber for door

37

3D0971818

cable ties gasket for base plate hole/sheet metal thickness: toothed quadrant
