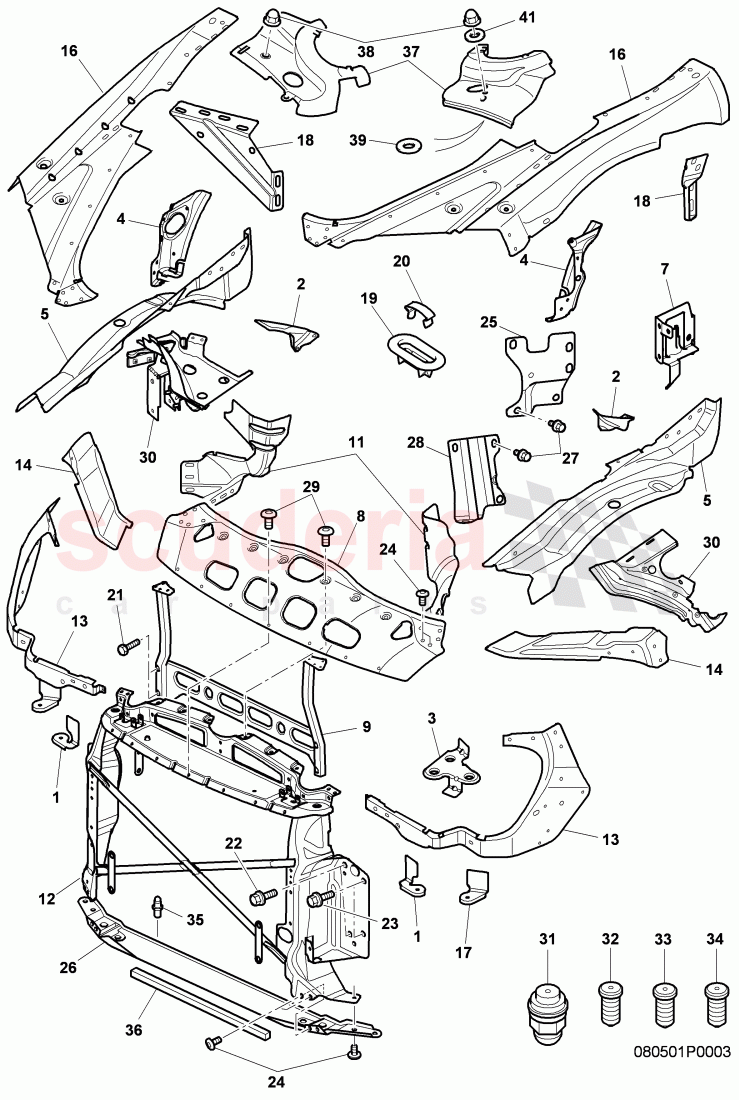

No

Kod

Parça Adı

1

3W0806069B

Bracket for charge air cooler, D - 11.12.2006>>

1

3W0806070B

Bracket for charge air cooler, D - 11.12.2006>>

13

3W0805071G

mounting, for headlamps, D - 30.11.2009>> - 01.10.2012

13

3W0 805 072 Q

mounting, for headlamps, D - 01.10.2012>>

3

3W0614125A

bracket, F 3W-7-041 094>> 3W-7-051 362

4

3W0 806 203 D

reinforcement, wheel housing, F 3W-D-082 509>>, F ZA-D-082 509>>

4

3W0 806 204 F

reinforcement, wheel housing, F 3W-D-082 509>>, F ZA-D-082 509>>

5

3W0805303A

connecting piece, F >> 3W-D-082 508, F >> ZA-D-082 508

5

3W0805304A

connecting piece, F >> 3W-D-082 508, F >> ZA-D-082 508

7

3W0422163C

mounting for, reservoir, D >> - MJ 2015

8

3W0804809L

cross panel D - 25.04.2011>>

9

3W0199521L

cross member, D - 18.12.2006>> - MJ 2007

9

3W0199521M

cross member, F 3W-7-041 093>>, D >> - MJ 2007

11

3W0 805 315 B

cross member, suspension, D - 21.05.2012>>

11

3W0805316A

cross member, D - 28.11.2011>>

12

3W0 805 155 K

frame, D - 08.01.2007>> - MJ 2007

14

3W0806177C

repair plate, bracket, F >> 3W-B-068 272, F >> ZA-B-068 272

14

3W0806178C

repair plate, bracket, F >> 3W-B-068 272, F >> ZA-B-068 272

16

3W8809581E

side member D - 31.01.2005>>

16

3W8809582B

side member D - 31.01.2005>>

17

3W0805357

bracket for charge air cooler

18

3W0810113

bracket

18

3W0810114A

bracket, F 3W-7-039 961>>

19

3W0804295B

water drain valve, D - 28.03.2011>>

20

4D0805469B

clamp, water drain valve

21

N91012202

hexagon screw with washer

22

N91139301

hexagon screw with washer

23

N90958803

hexagon head bolt (combi)

29

N90737105

Oval hexagon socket head bolt, D >> - 23.08.2010

25

3W1805301B

end plate, D - 07.05.2007>>

25

3W2805301C

end plate, D - 23.04.2007>>

26

3W005057C

repair plates, D - 08.01.2007>> - MJ 2007

27

N10063205

bolt, hex. hd. with shoulder

28

3W0806357A

cross panel

28

3W0806358B

end plate, D - 23.04.2007>>

30

3W0 805 029 E

repair plates, F 3W-D-082 509>>, F ZA-D-082 509>>

30

3W0805030C

repair plates, D - 16.01.2012>>

31

WHT000868

weld studs with cap nuts

32

N90684202

welded pin

33

N90810801

stud

34

N90654704

threaded pin

35

3W0805596

attachment bolt, F 3W-4-023 723>>

36

3W0121221A

sealing strip (self-adhesive)

37

3W8805285C

cover, D - 21.04.2008>>

37

3W8 805 286 F

cover, D - 21.05.2012>>

38

N90839902

cap nut, D - 12.05.2014>>

39

N90033312

washer

41

N90033301

washer
