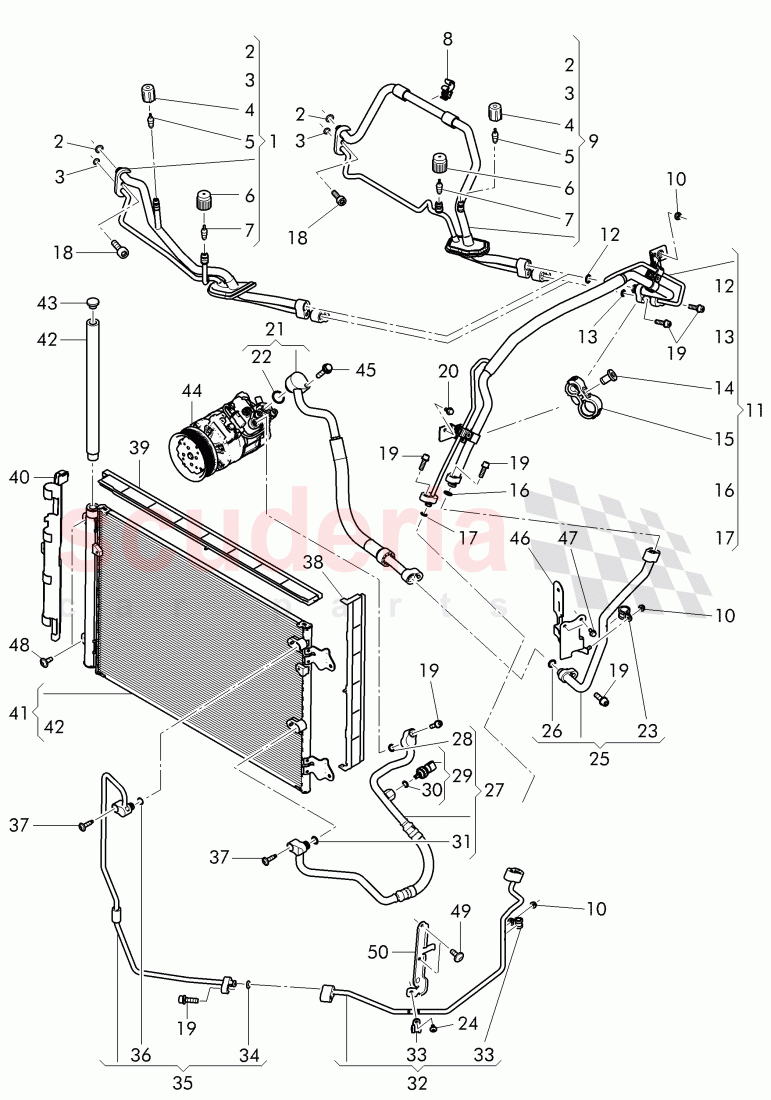

No

Kod

Parça Adı

1

3W2260741C

refrigerant line, D - 08.12.2014>>

31

4E0260749B

seal ring

35

4E0260749A

seal ring

4

3C0 820 231

protective cap, for refrigerant:

5

3D0820855A

valve insert

6

3D0820581

protective cap

7

3D0820855

valve insert

8

3D0201449R

securing clip

9

3W1 260 741 C

refrigerant line

10

N90215805

shouldered hex. nut, Discont./New add.+FULU calc.

11

3W0 260 702 B

refrigerant line, heater core, D - 24.11.2014>>

36

3D0260749C

seal ring

14

8D0201441C

speed nut

15

4H0260759H

bracket for refrigerant pipe

18

N90320206

socket head bolt with hexagon socket head (combination) D - 29.05.2006>>

19

N10414402

bolt, with hex. socket, hd., D - 11.12.2006>> - 21.03.2011

20

N10158605

bolt,hex.hd.with shoul.(combi), F 3W-C-076 377>> 3W-C-076 377, F ZA-C-076 377>> ZA-C-076 377

21

4W0 260 725

suction pipe

22

8E0260749C

seal ring

24

4W0 260 713 A

suction pipe, D - 12.05.2014>>

27

4W0 260 701 A

refrigerant line

29

3D0959126D

pressure sensor, D - 04.07.2011>>

32

4W0 260 706 B

refrigerant line, D - 12.05.2014>>

34

4W0 260 703 A

refrigerant line, D >> - MJ 2015

35

4W0 260 703 B

refrigerant line, D - MJ 2016>>

37

N90969901

hex socket head locating bolt

38

3Y0260255

plastic foam, (self-adhesive)

39

3Y0260423

plastic foam, (self-adhesive)

41

3W0 260 401 A

refrigerant condenser with, dryer, D - 11.11.2013>>

42

4H0298403

dryer insert with attachment parts

43

3W0 260 143

cap

44

N 907 371 07

fillister hd. screw with, MULTI-POINT SOCKET HEAD
