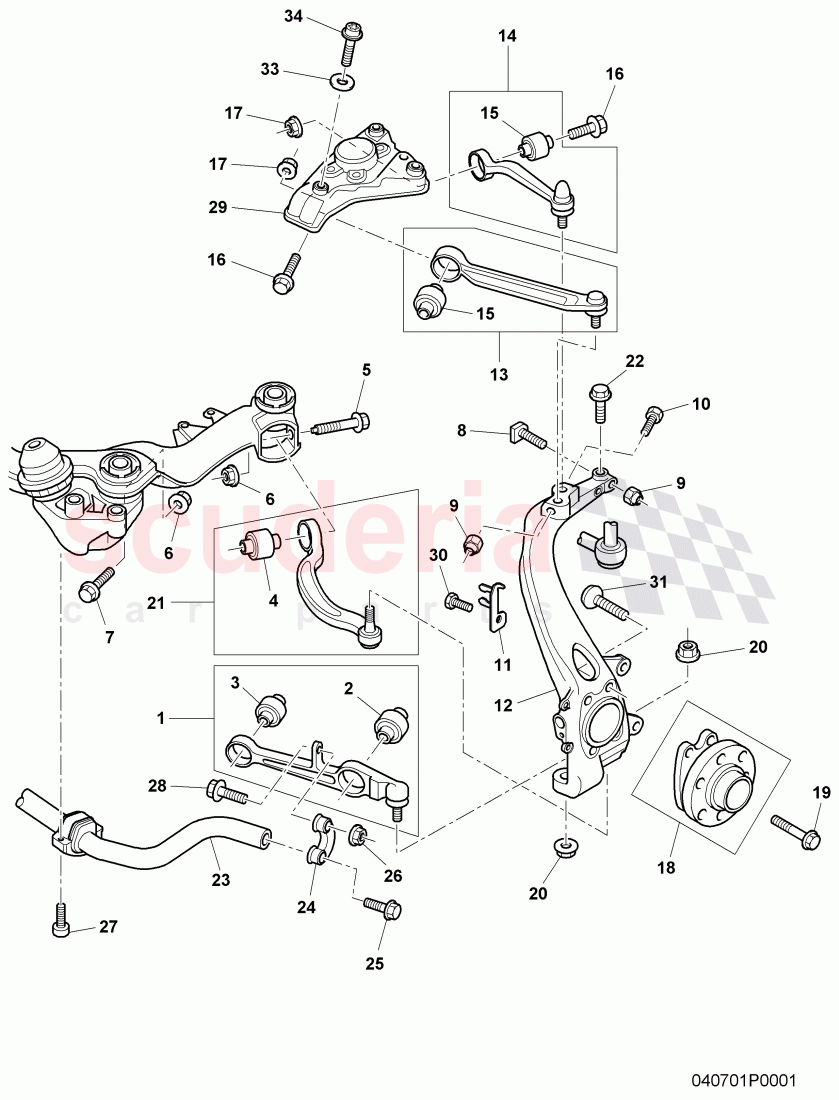

No

Kod

Parça Adı

1

4E0407151K

Front Suspension Wishbone Link

5

N90625902

bolt, hex. hd. with pin, (combi)

6

N10106402

shouldered hex. nut,, self-locking, D >> - 12.06.2017

7

N91016602

Hexagon Head Bolt (combi)

8

WHT001480

lock screw

17

N10286110

shouldered hex. nut,, self-locking

10

N0347908

screw, hex. hd.

11

4B0971845E

bracket

12

3D0407253AF

wheel bearing housing

12

3D0407254AF

wheel bearing housing

13

3W0407505

Front Wishbone Link

13

3W0407506

Front Wishbone Link

14

3W0407509

Control Arm

14

3W0407510

Front Wishbone Link / Control Arm

15

3W0407515

Upper Link Arm Bush

16

N10425302

bolt, hex. hd. with shoulder

18

3W0407613E

wheel hub with bearing, D - 03.10.2011>>

19

8E0407643A

socket head bolt with inner multipoint head

20

N90965602

Hex. Nut with Washer

21

3W0 407 693 A

LH Lower Rear Suspension Link

21

3W0 407 694 A

RH Lower Rear Suspension Link

22

N90966002

hexagon head bolt (combi)

23

3W0 411 305 J

Anti Roll Bar

24

3W0411317C

Front Anti Roll Bar Droplink

25

N10209605

bolt, hex. hd. with shoulder

26

N10402904

hexagon nut

27

N90990002

socket head bolt with inner multipoint head

28

N90986002

bolt, hex. hd. with shoulder

29

4E0412383D

bracket

30

N10051507

bolt, hexagon head self-locking

31

WHT000237

ball screw, marked blue

33

3D0412145A

washer

34

N90996702

socket hd. screw with polygon, socket, D - 08.10.2009>>
