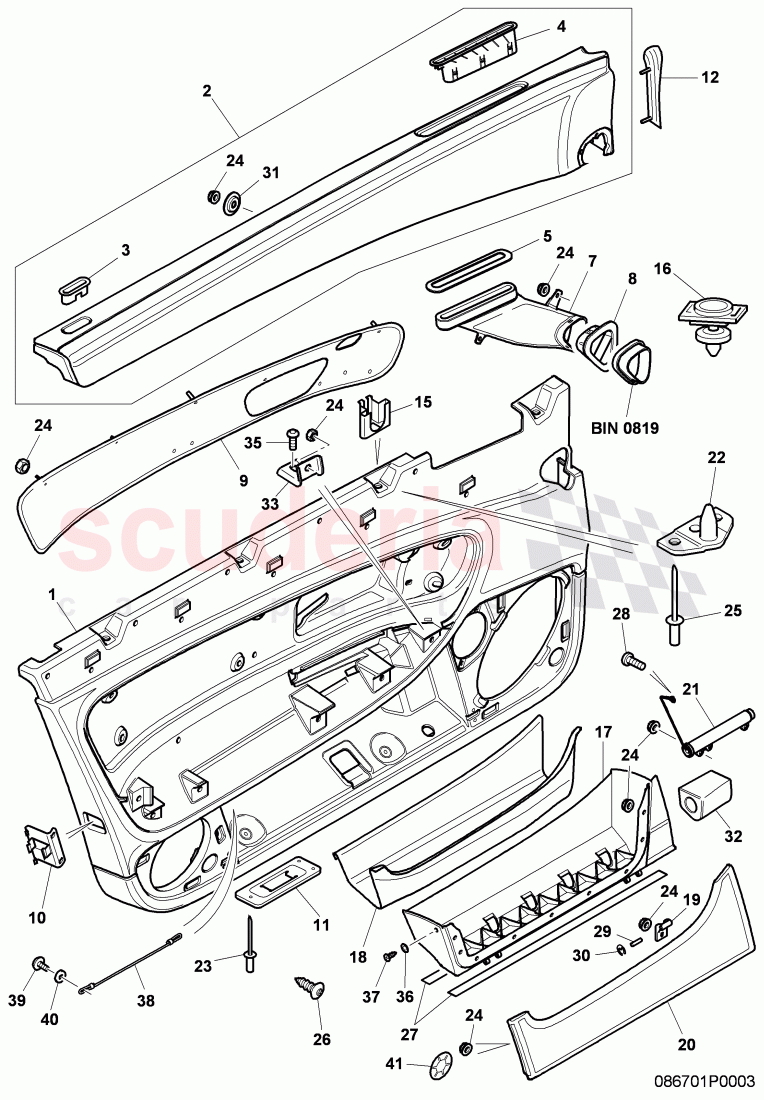

No

Kod

Parça Adı

1

3W3867015J

door trim panels

1

3W3867016J

door trim panels

2

3W3 867 101 D

Waistrail

2

3W3 867 102 D

Waistrail

3

3W0867677A

shaped part for anti-theft alarm system

4

3W8819695A

grille, side window

4

3W8819696A

grille, side window

5

3W0819079B

bracket for trim, side window

7

3W0819869A

air guide channel

7

3W0819870A

air guide channel

8

3W0 868 463 E

grille, door panel, D - 20.04.2015>>

9

3W3867013E

insert

9

3W3867014E

insert

9

3W3867013D

insert piece

9

3W3867014D

insert piece

9

3W3867021B

insert, veneered

9

3W3867022B

insert, veneered

9

3W3867021DU63

insert piece (manufactured to order, refer to the colour table on bics)

9

3W3867022DU63

insert piece (manufactured to order, refer to the colour table on bics)

10

3W3868093A

bracket, door

11

3W3867191B

bracket, door

12

3W3867425A

cover panel housing (centre)

12

3W3867426A

cover panel housing (centre)

15

3W0867899A

carrier mounting clip

16

6Q0868241

clip

17

3W3867131C

stowage box

17

3W3867132C

stowage box

18

3W3867413B

sound abs. for door trim panel

18

3W3867414B

sound abs. for door trim panel

19

3W0868667C

hinge, bag

20

3W3 867 085 C

trim for stowage dish, bag, D - 21.05.2007>>

20

3W3 867 086 C

trim for stowage dish, bag, D - 21.05.2007>>

21

3W8868193A

damper, door

22

3W0 868 467 C

Locating pin

23

N91083301

pop-rivet, only to be used with:

24

WHT000678

lock nut, alternatively, you can use:

25

N90994201

pop rivet

26

N90986802

hexagon socket head panel bolt

27

3W3867881

sound absorber, strip

28

N10415903

Oval hexagon socket head bolt, D >> - 25.07.2011

29

3W0867721

pivot pin, hinge

30

3W0867299

clamp

31

3W0868424A

bracket

32

3W3837735

torch bracket

32

3W3837736

torch bracket

33

3W0867177

bracket, armrest

35

N90807402

hex socket oval head collared

36

N91091301

cup washer

37

N10655201

tapping screw, csk.

38

3W3867749

retaining cable

39

N90562401

tapping screw, fill. hd.

40

N0115211

washer

41

N90833001

lock washer, FQA-TEIL
