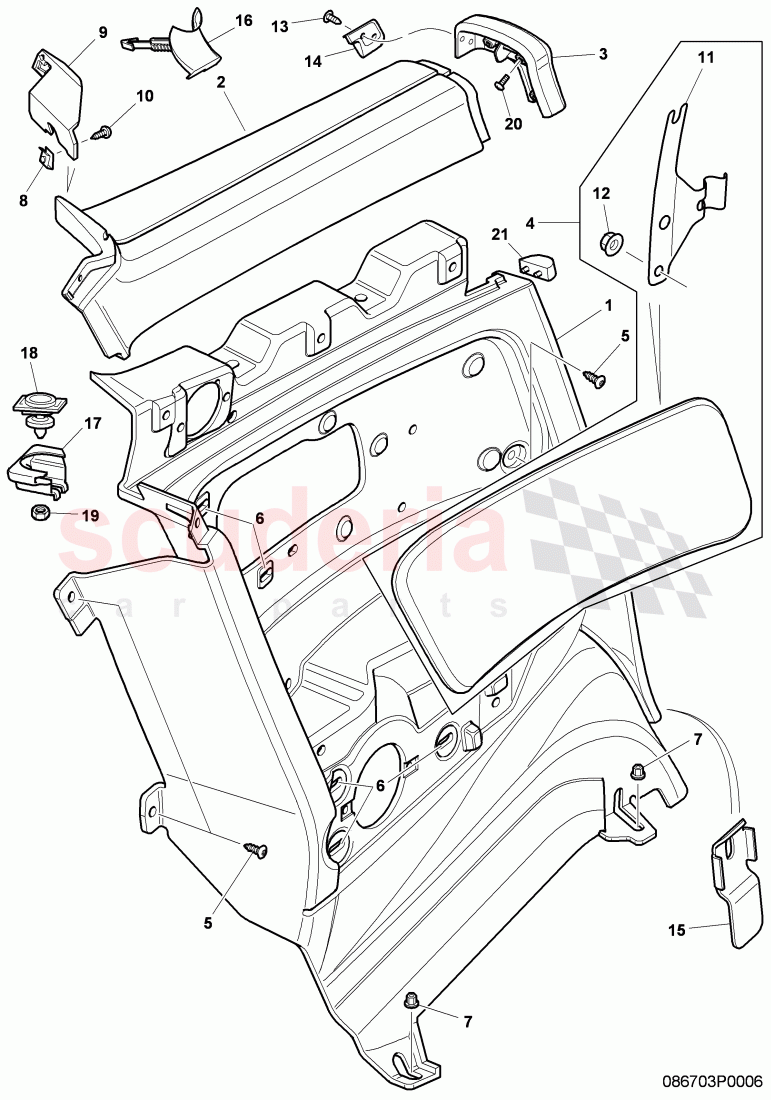

No

Kod

Parça Adı

1

3W8867043

side panel trim (leather cover)

1

3W8867044

side panel trim (leather cover)

2

3W3868083G

housing (centre)

2

3W3868084G

housing (centre)

2

3W8868083

housing (centre)

2

3W8 868 084

Waistrail

3

3W8837865C

cover panel

3

3W8837866C

cover panel

4

3W3 868 109

insert

4

3W3 868 110

insert

4

3W3 868 109 A

insert

4

3W3 868 110 A

insert

4

3W3 868 109 C

insert

4

3W3 868 110 C

insert

4

3W3867117GU63

insert, D - MJ 2010>>

4

3W3 868 110 F

insert, D - MJ 2010>>

5

N90698605

hexagon socket head panel bolt

6

7M3858153

spring clip, D >> - 30.08.2011

7

N10015101

hex. nut, F 3W-5-026 890>> 3W-6-039 945

8

N90356204

speed nut, included in position:

9

3W0867729B

bracket, pillar c

9

3W0867730B

bracket, pillar c

10

N10569501

round-head screw with inner hexagon socket head

11

3W0868563

clamp, right rear

11

3W0868564

clamp

12

N10334801

shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366

13

3W0881635C

clamp, F >> 3W-D-099 999, F >> ZA-D-099 999, F 3W-E-077 993>> 3W-E-093 153, F ZA-E-077 993>> ZA-E-093 153

21

3W8837673

gasket

14

3W8837158A

profile rubber

15

3W3867375A

bracket, scuff plate - sill panel

16

3W0867827D

trim cover, trim cover

16

3W0867828D

cover panel c-pillar

17

3W0867899A

carrier mounting clip

18

6Q0868241

clip

19

WHT000678

lock nut, alternatively, you can use:

20

N90944603

Oval hexagon socket head bolt, only to be used with:

21

3W8837674

gasket
