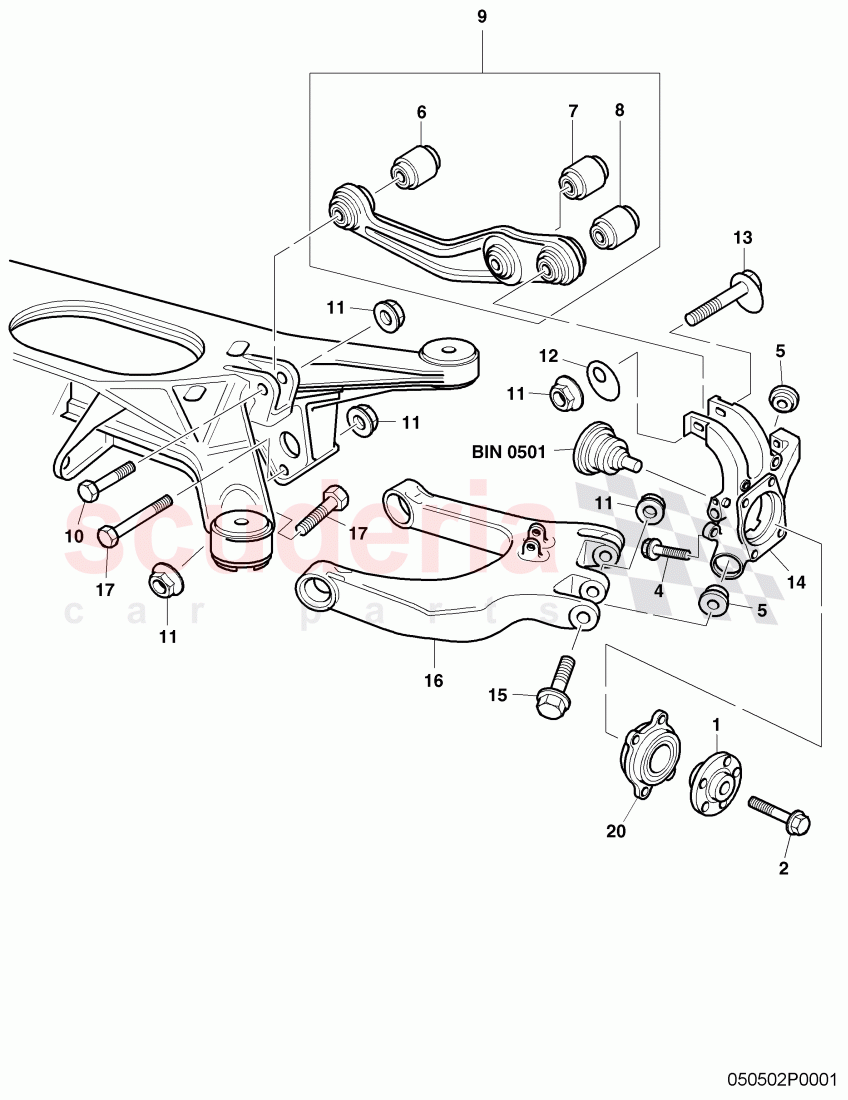

No

Kod

Parça Adı

1

4E0 407 613 A

wheel hub, F 3W-4-020 001>> 3W-5-027 314

1

4E0407613C

wheel hub, F 3W-7-039 828>> 3W-8-052 847

2

8E0407643A

socket head bolt with inner multipoint head

4

WHT000237

ball screw, marked blue

5

3D0505171

bonded rubber mounting

9

4E0505323AB

wishbone F 3W-8-052 846>> 3W-8-059 514

10

N 105 149 01

bolt, hex. hd. (combi.), D - 30.01.2006>>

11

N10106402

shouldered hex. nut,, self-locking, D >> - 12.06.2017

12

WHT001656

eccentric washer

13

WHT001661

eccentric screw

14

3D0 505 435 G

wheel bearing housing, F 3W-4-020 001>> 3W-5-027 314

14

3D0 505 436 G

wheel bearing housing, F 3W-4-020 001>> 3W-5-027 314

14

3D0505435M

wheel bearing housing, F 3W-5-027 315>>

14

3D0505436M

wheel bearing housing, F 3W-5-027 315>>

15

N90924103

bolt, hex. hd. with pin, (combi)

16

4E0 511 511 F

trailing arm

16

4E0 511 512 F

trailing arm

17

N10294902

hexagon head bolt (combi)

20

4E0407625F

double (angled) ball bearing with flange F 3W-7-039 828>> 3W-8-052 847
