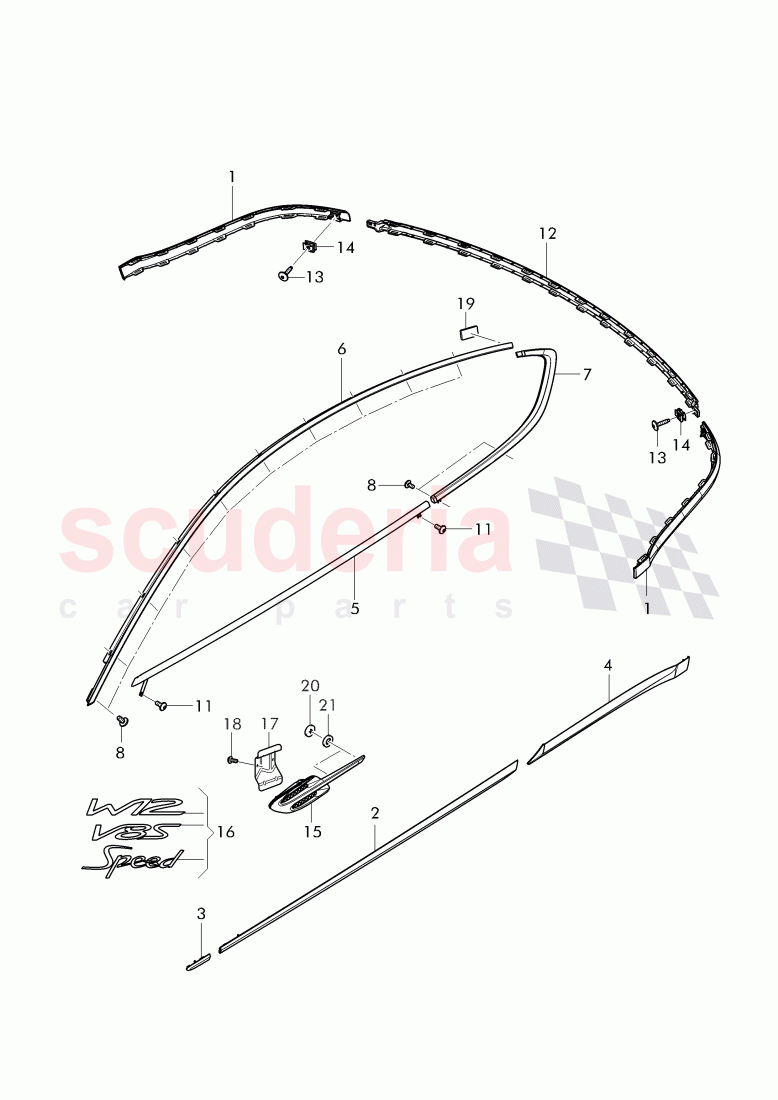

No

Kod

Parça Adı

1

3W3 807 917

trim for bumper

1

3W3 807 918

trim for bumper

2

3W8853515K

protection trim for door, D - 14.02.2011>>

2

3W8853516K

protection trim for door, D - 14.02.2011>>

3

3W8 853 517 Q

trim stripe for fender

3

3W8 853 518 Q

trim stripe for fender

4

3W8853535AA

trim stripe for fender, D - 14.02.2011>>

4

3W8853536AA

trim stripe for fender, D - 14.02.2011>>

5

3W7 853 767 C

trim strip for waistline, D - 02.09.2013>>

5

3W7 853 768 C

trim strip for waistline, D - 02.09.2013>>

6

3W8 853 835 F

trim for door window frame, D - 03.07.2017>>

6

3W8 853 836 F

trim for door window frame, D - 03.07.2017>>

7

3W8 853 765 K

trim for door window frame, D - 26.06.2017>>

7

3W8 853 766 K

trim for door window frame, D - 26.06.2017>>

8

N10586402

socket head hexagon bolt with cone

18

N10653801

hexagonal socket head, screw

12

3W3 807 653

trim for bumper

13

N91090701

oval socket head bolt, with hex drive, alternatively, you can use:

14

N90959101

speed nut, included in position:

15

3W3 821 273 B

cooling air grill, D - 16.11.2015>>

15

3W3 821 274 B

cooling air grill, D - 16.11.2015>>

16

3W8 853 675 J

emblem

16

3W8 853 675 H

emblem

16

3W8 853 675 K

emblem

17

3W3 821 471 A

bracket

17

3W3 821 472 A

bracket

19

3W0945067

butyl adhesive / sealing cord

20

N91135001

clamping washer, only to be used with:, D - 02.03.2015>>

21

3W0899593

rubber washer, D - 04.07.2011>>
