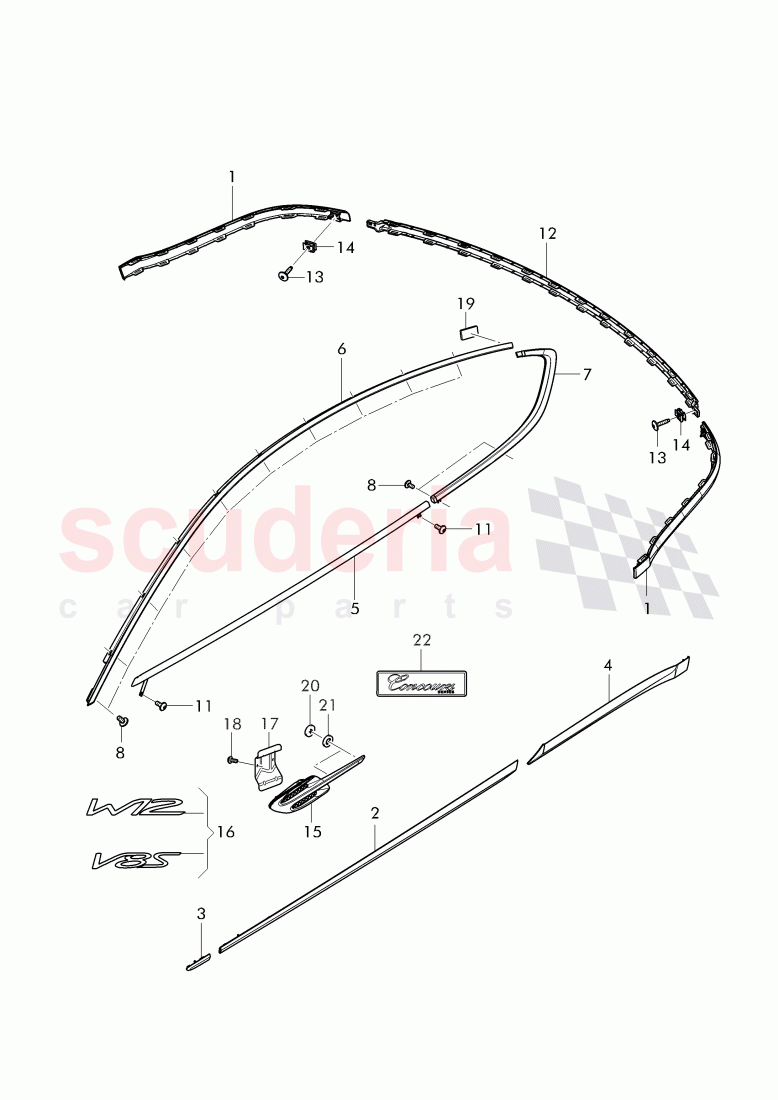

No

Kod

Parça Adı

1

3W3 807 917

trim for bumper

1

3W3 807 917 C

trim for bumper

1

3W3 807 918

trim for bumper

1

3W3 807 918 C

trim for bumper

2

3W8853515K

protection trim for door, D - 14.02.2011>>

2

3W8 853 515 N

protection trim for door

2

3W8853516K

protection trim for door, D - 14.02.2011>>

2

3W8 853 516 N

protection trim for door

3

3W8 853 517 Q

trim stripe for fender

3

3W8 853 517 T

trim stripe for fender

3

3W8 853 518 Q

trim stripe for fender

3

3W8 853 518 T

trim stripe for fender

4

3W8853535AA

trim stripe for fender, D - 14.02.2011>>

4

3W8 853 535 AD

trim stripe for fender

4

3W8853536AA

trim stripe for fender, D - 14.02.2011>>

4

3W8 853 536 AD

trim stripe for fender

5

3W7 853 767 C

trim strip for waistline, D - 02.09.2013>>

5

3W8 853 767 AD

trim strip for waistline

5

3W7 853 768 C

trim strip for waistline, D - 02.09.2013>>

5

3W8 853 768 AD

trim strip for waistline

6

3W8 853 835 F

trim for door window frame, D - 03.07.2017>>

6

3W8 853 835 E

trim for door window frame

6

3W8 853 836 F

trim for door window frame, D - 03.07.2017>>

6

3W8 853 836 E

trim for door window frame

7

3W8 853 765 K

trim for door window frame, D - 26.06.2017>>

7

3W8 853 765 H

trim for door window frame

7

3W8 853 766 K

trim for door window frame, D - 26.06.2017>>

7

3W8 853 766 H

trim for door window frame

8

N10586402

socket head hexagon bolt with cone

18

N10653801

hexagonal socket head, screw

12

3W3 807 653

trim for bumper

12

3W3 807 653 D

trim for bumper

13

N91090701

oval socket head bolt, with hex drive, alternatively, you can use:

14

N90959101

speed nut, included in position:

15

3W3 821 273 B

cooling air grill, D - 16.11.2015>>

15

3W3 821 274 B

cooling air grill, D - 16.11.2015>>

16

3W8 853 675 J

emblem

16

3W8 853 675 H

emblem

16

3W8 853 675 K

emblem

17

3W3 821 471 A

bracket

17

3W3 821 472 A

bracket

19

3W0945067

butyl adhesive / sealing cord

20

N91135001

clamping washer, only to be used with:, D - 02.03.2015>>

21

3W0899593

rubber washer, D - 04.07.2011>>
